Liftgate Object Sensor - Right (E61)

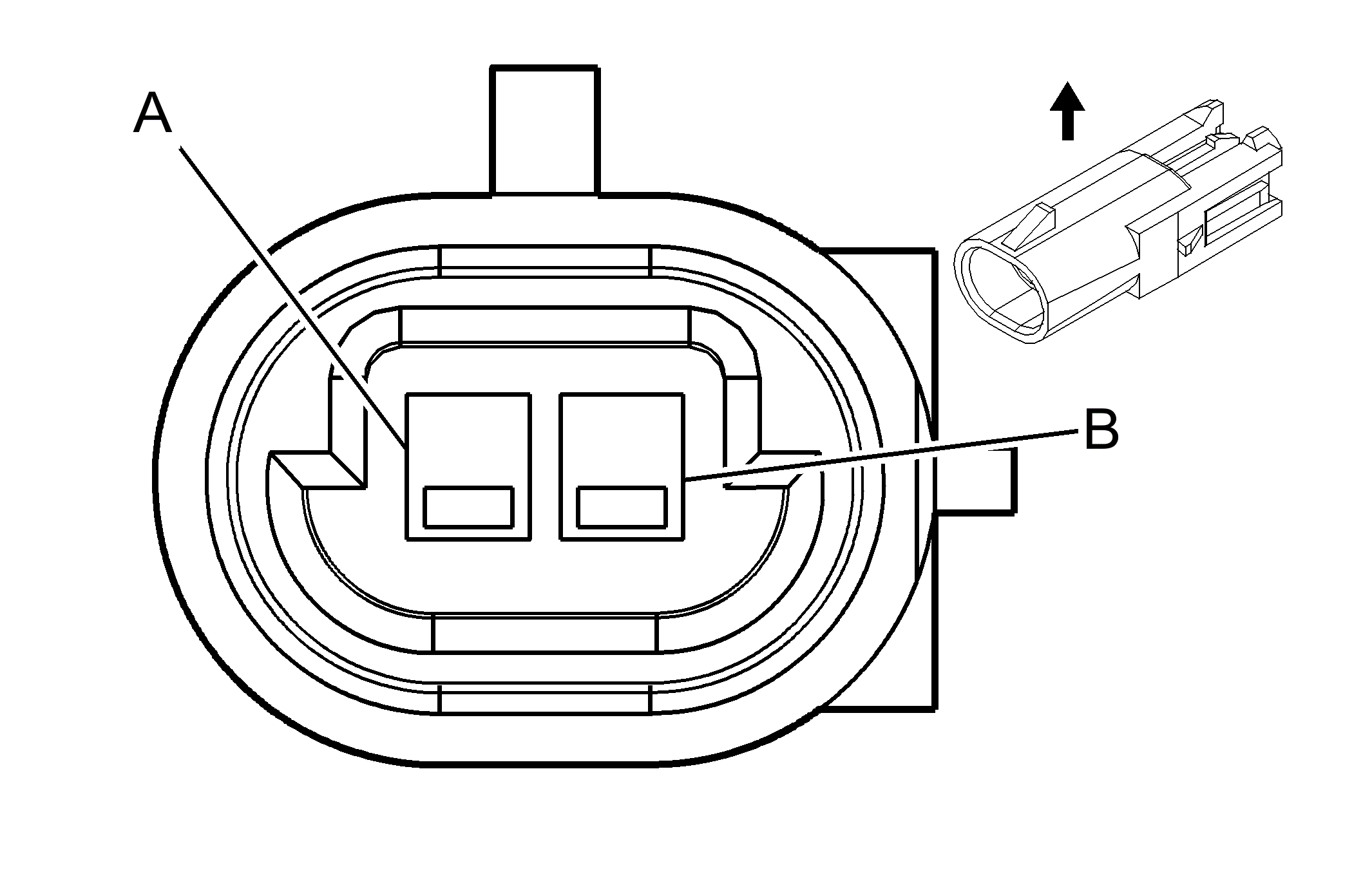

Fig 1: Liftgate Object Sensor - Right (E61) Connector End View
GM697014Courtesy of GENERAL MOTORS CORP.
Liftgate Object Sensor - Right (E61)

Pin Wire Circuit Function
A 0.35 PK/BK 5802 Liftgate Object Sensor Signal
B 0.35 PU/WH 5801 Low Reference
Connector Part Information
  • OEM: 15355466
  • Service: 89046633
  • Description: 2-Way M GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15326269/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
