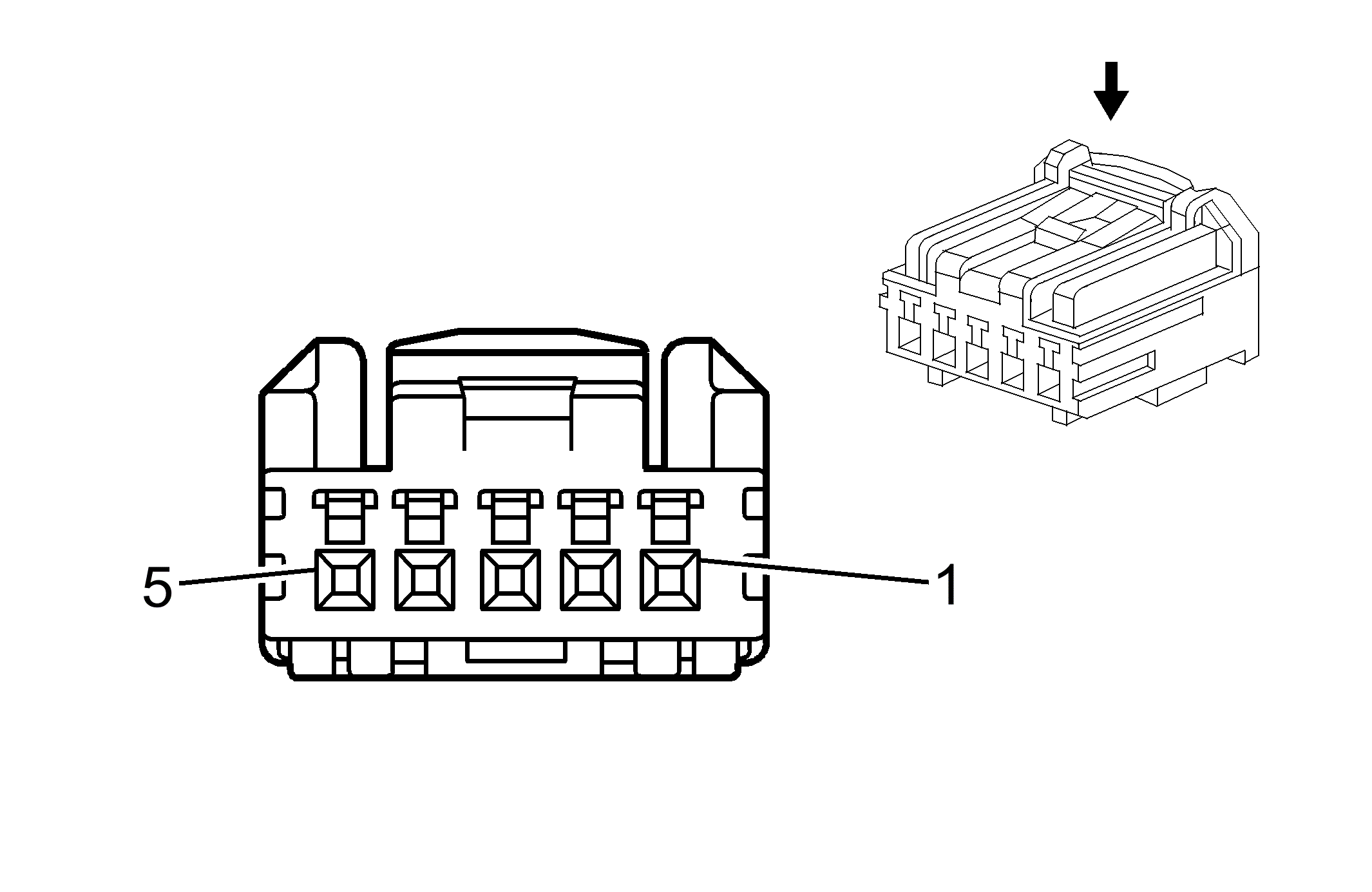

Liftgate Control Switch - Interior (E61)
Courtesy of GENERAL MOTORS CORP. Liftgate Control Switch - Interior (E61)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN |
6112 |
Power Liftgate On/Off Switch Signal |
| 2 |
0.35 BN/WH |
230 |
Instrument Panel Lamp Dimming Control |
| 3 |
0.5 BK |
1050 |
Ground |
| 4 |
0.35 D-GN/WH |
5800 |
Front Liftgate Open/Close Switch Signal |
| 5 |
- |
- |
Not Used |
Connector Part Information
- OEM: 15491283
- Service: 19149304
- Description: 5-Way F HCM (NA)
|
Terminal Part Information
- Terminal/Tray: SHCM-A03T-P025/20
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
