Instrument Cluster Schematics

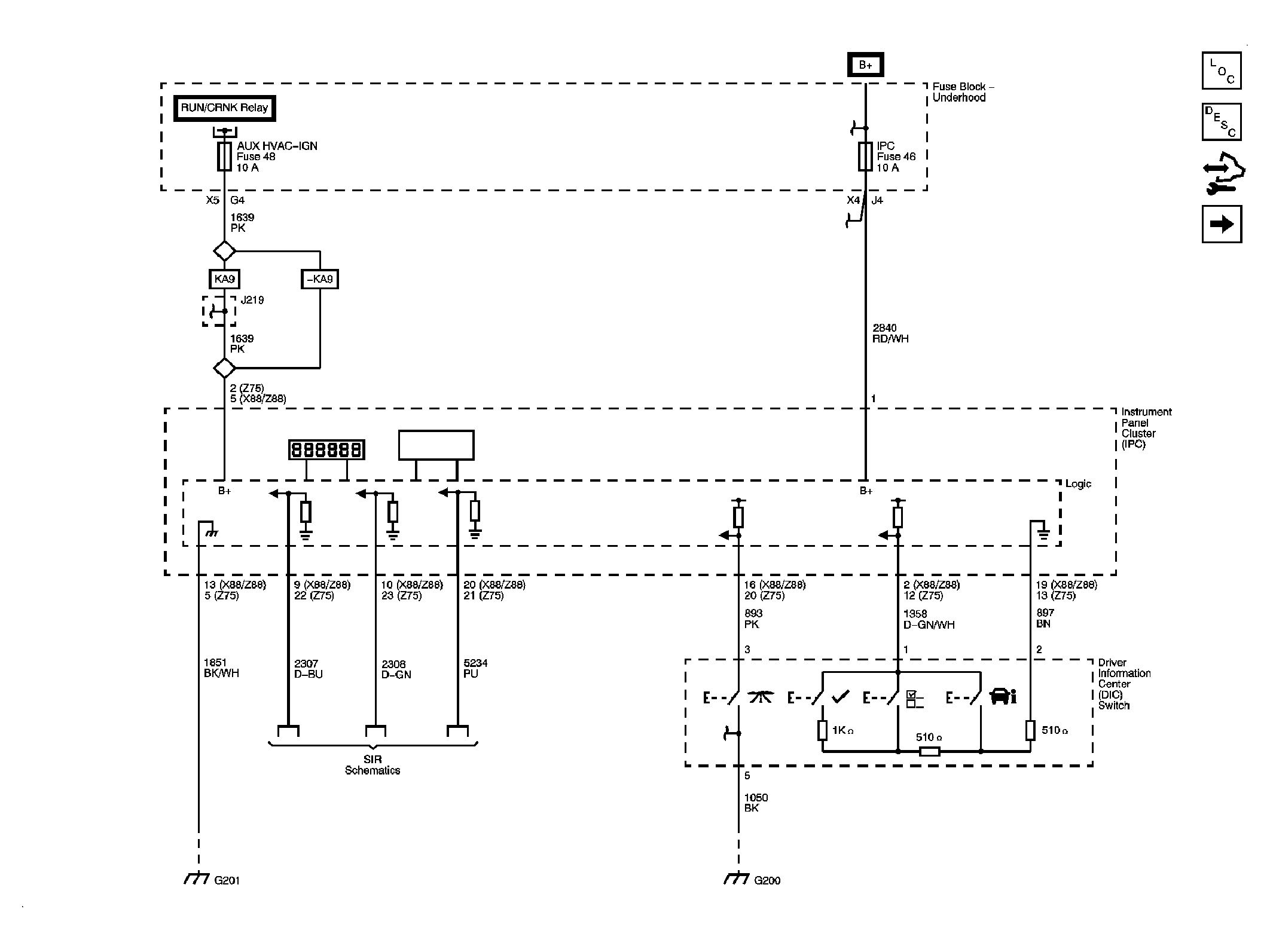

Fig 1: Power, Ground, and Driver Information Center Switch
GM2075084Courtesy of GENERAL MOTORS CORP.

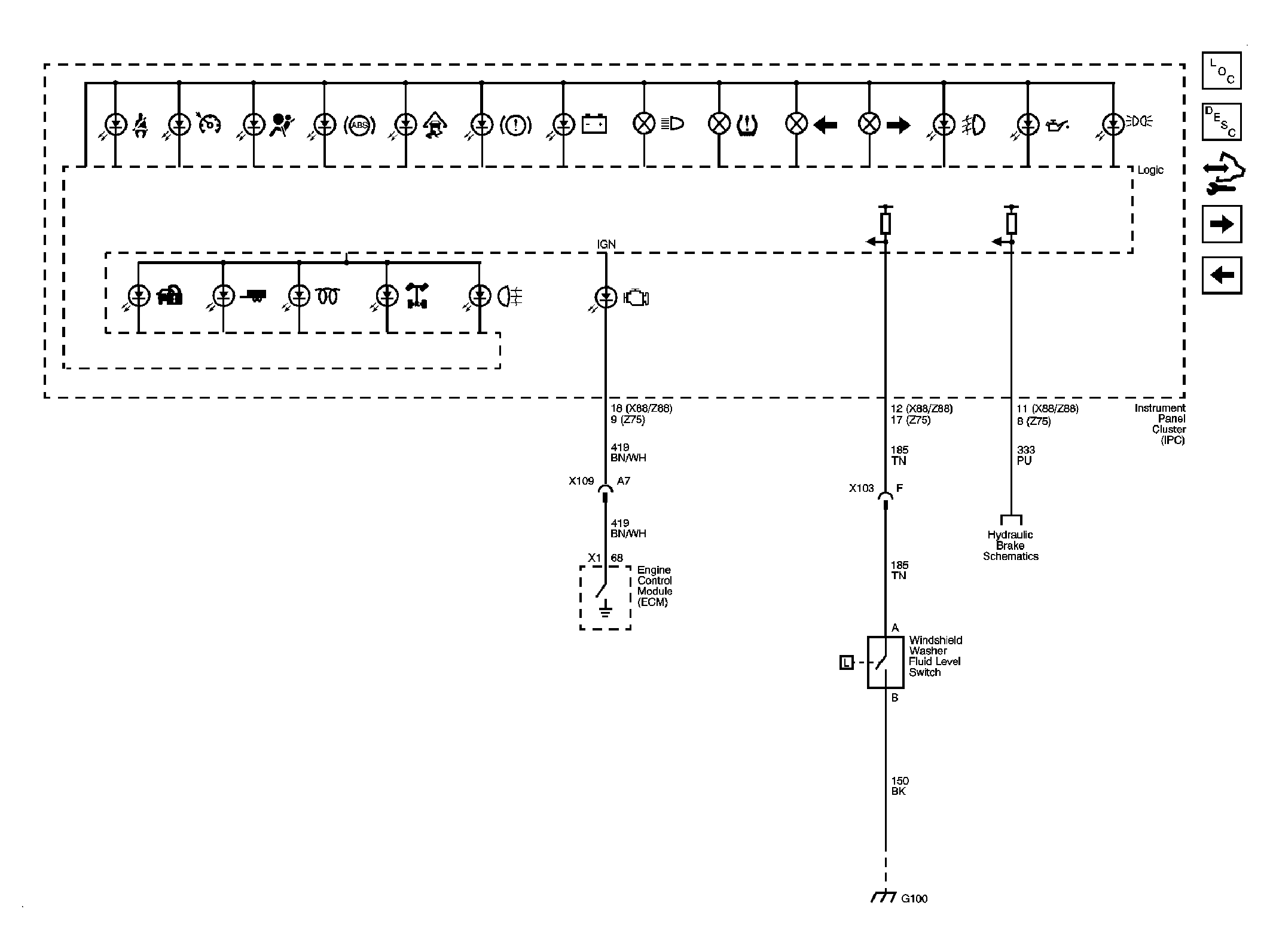

Fig 2: Indicators
GM2075087Courtesy of GENERAL MOTORS CORP.

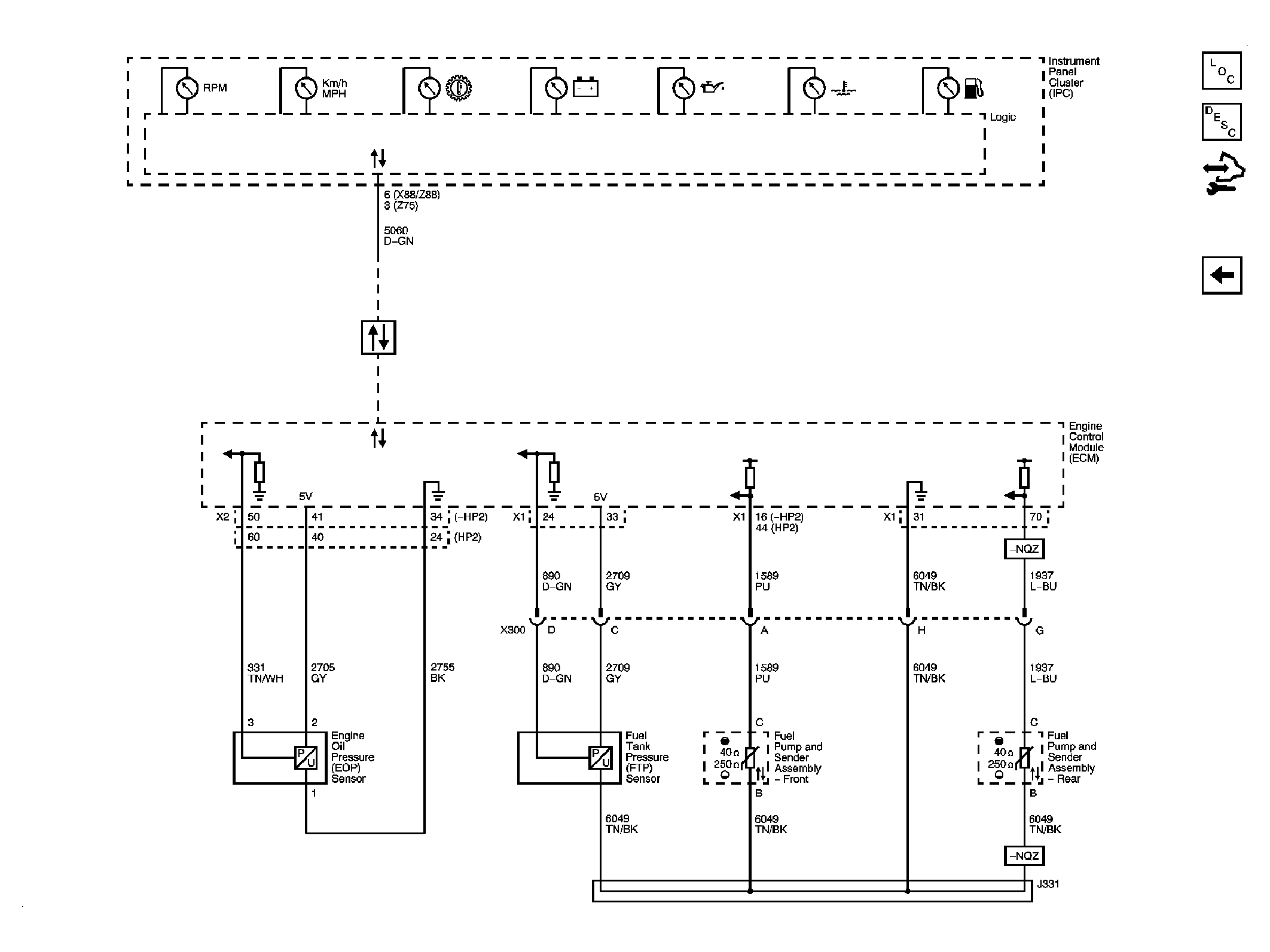

Fig 3: Gages
GM2075089Courtesy of GENERAL MOTORS CORP.
