Wiper Motor: Diagrams




Component Connector End Views

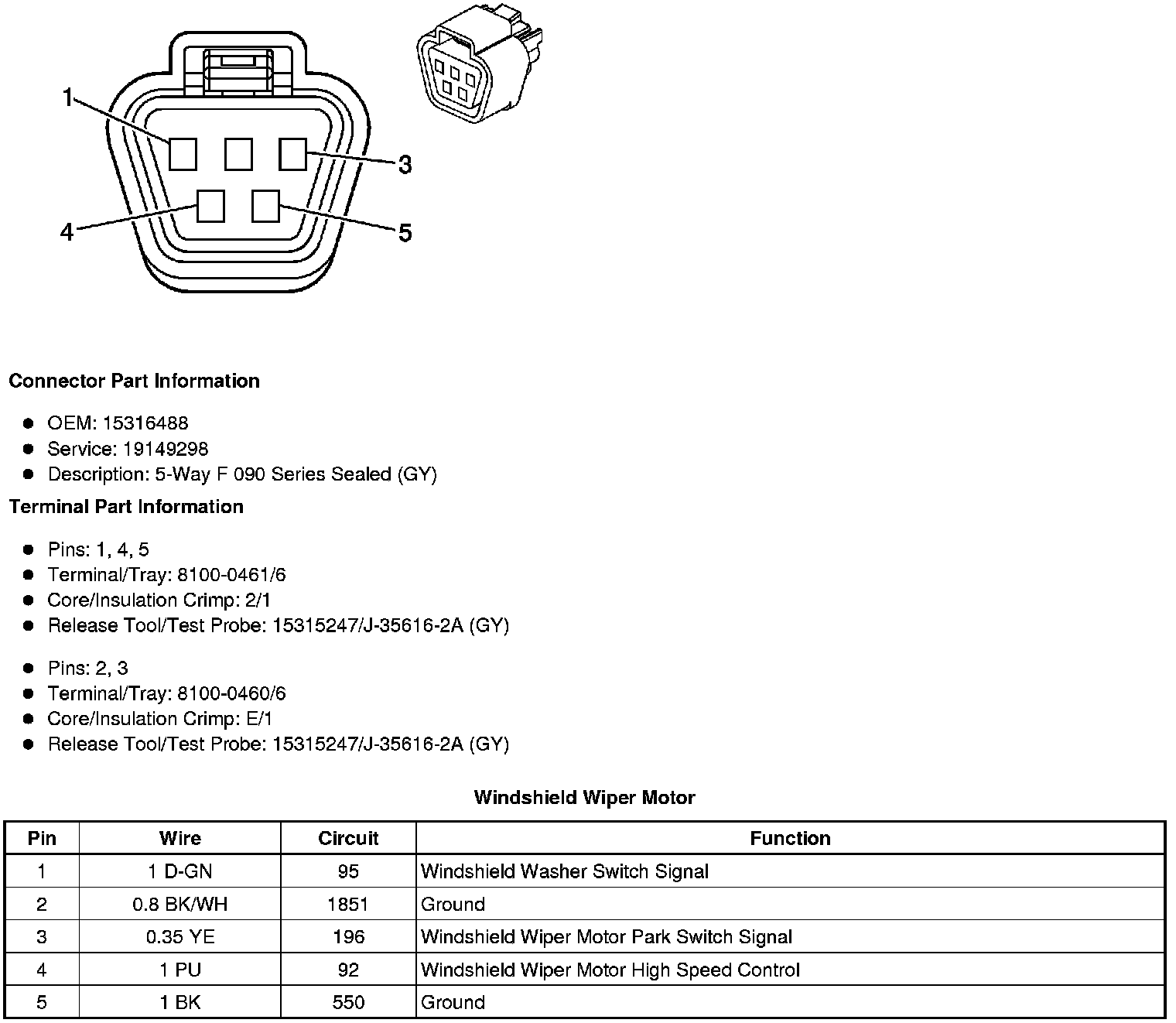

Windshield Wiper Motor

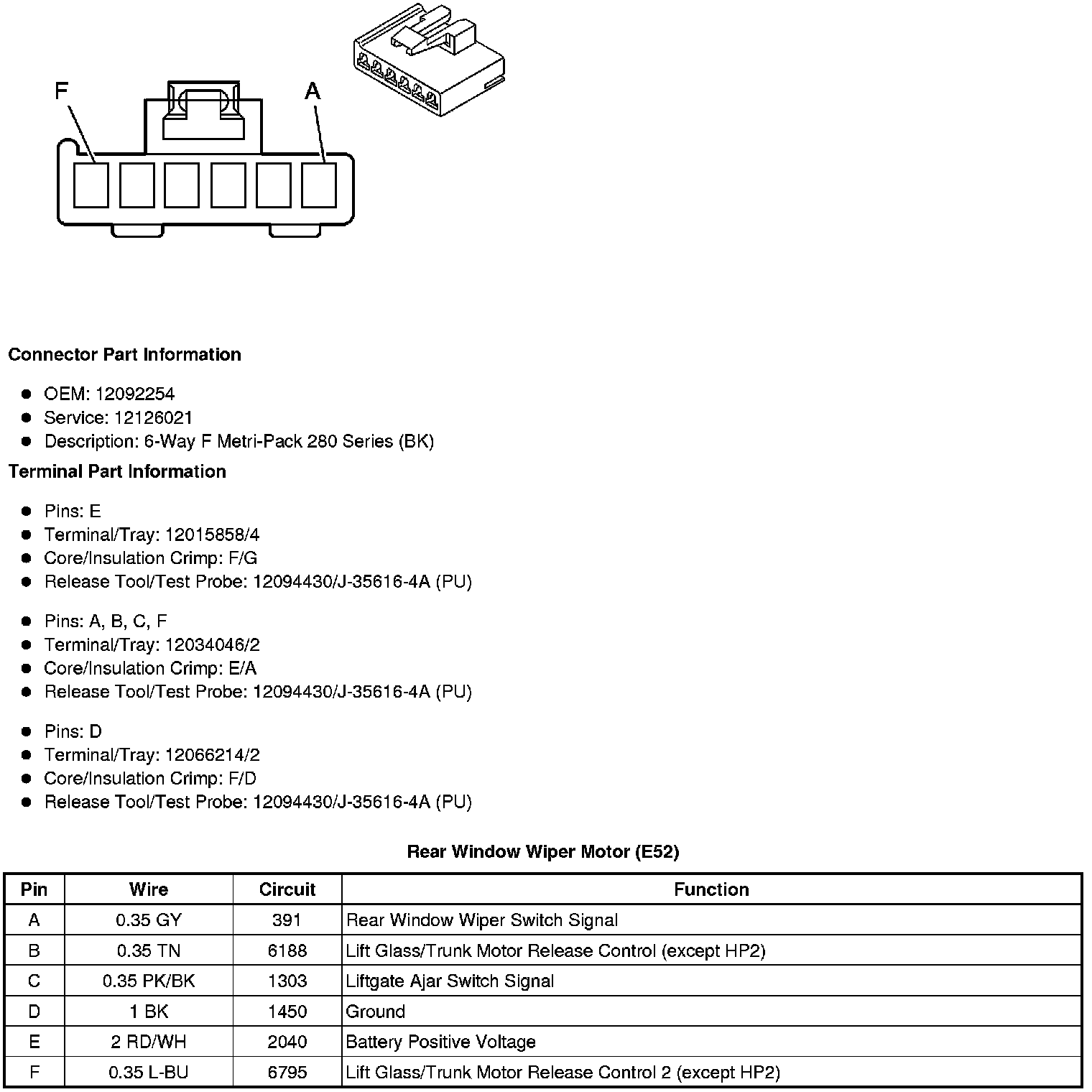

Rear Window Wiper Motor (E52)
