1-2-3-4 Clutch Backing Plate Retaining Ring Measurement




1-2-3-4 Clutch Backing Plate Retaining Ring Measurement (6L50/80/90)

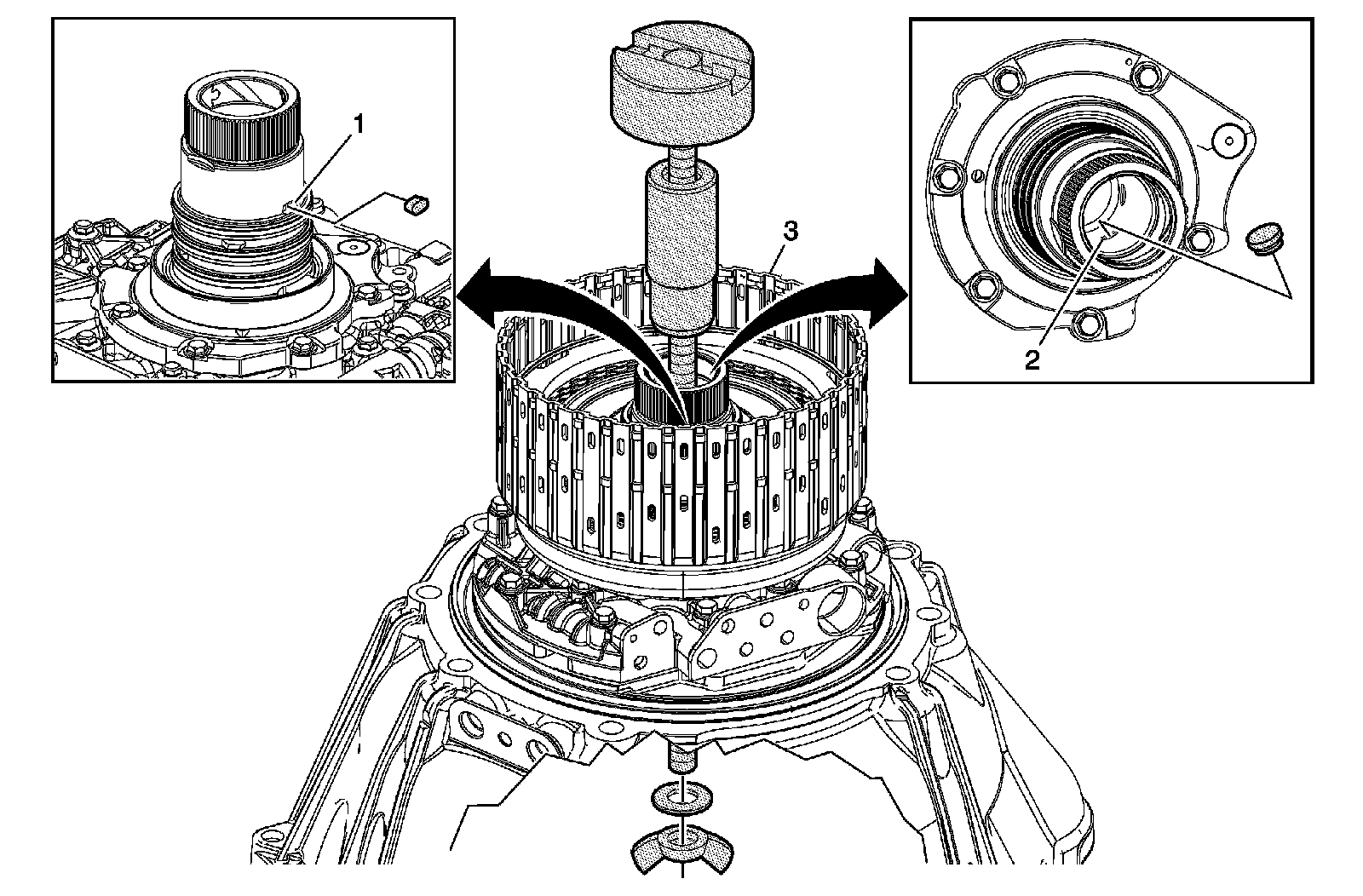

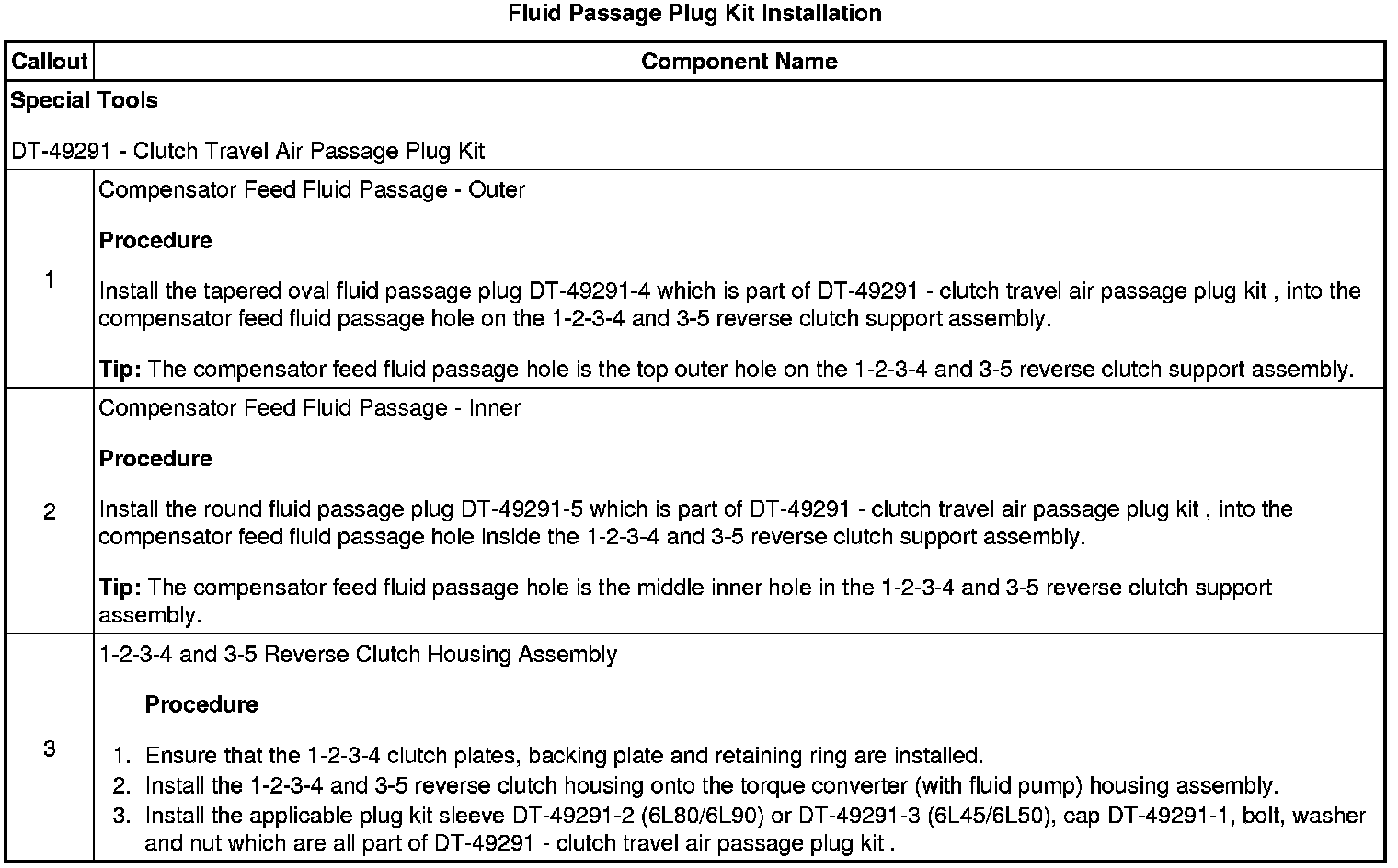

Fluid Passage Plug Kit Installation

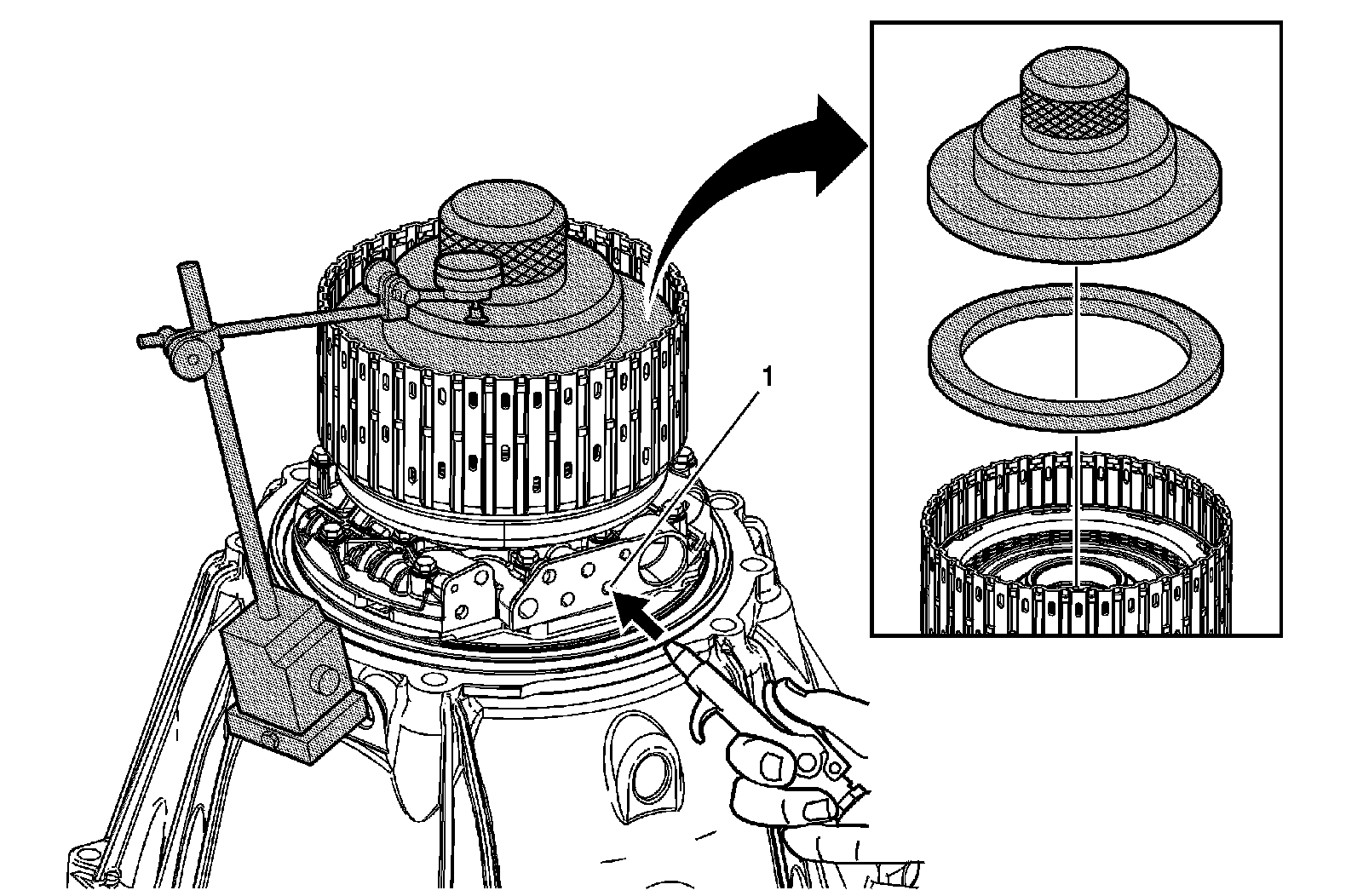

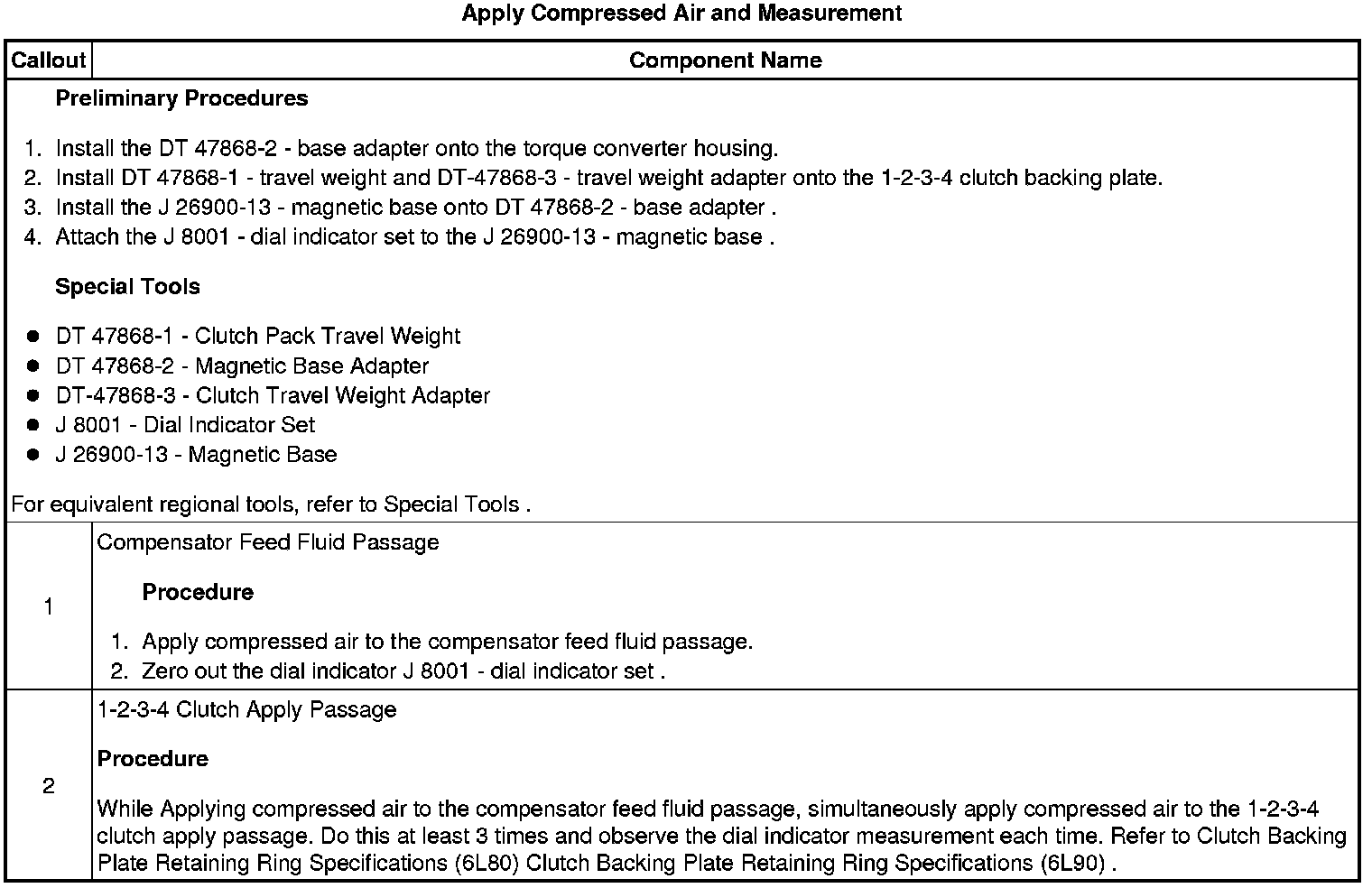

Apply Compressed Air and Measurement
