Spring Jounce Bumper Replacement (1500)

Spring Jounce Bumper Replacement (1500)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

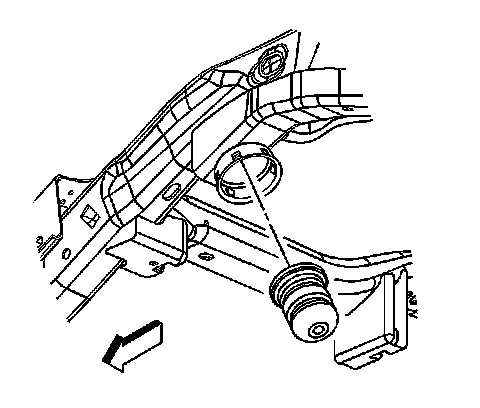

2. The jounce bumper is a snap fit design. Remove the jounce bumper from the bracket.

Installation Procedure




1. Position the jounce bumper to the bracket.
2. Press the jounce bumper into the bracket until fully seated.
3. Lower the vehicle.
