Power Steering Fluid Reservoir: Locations

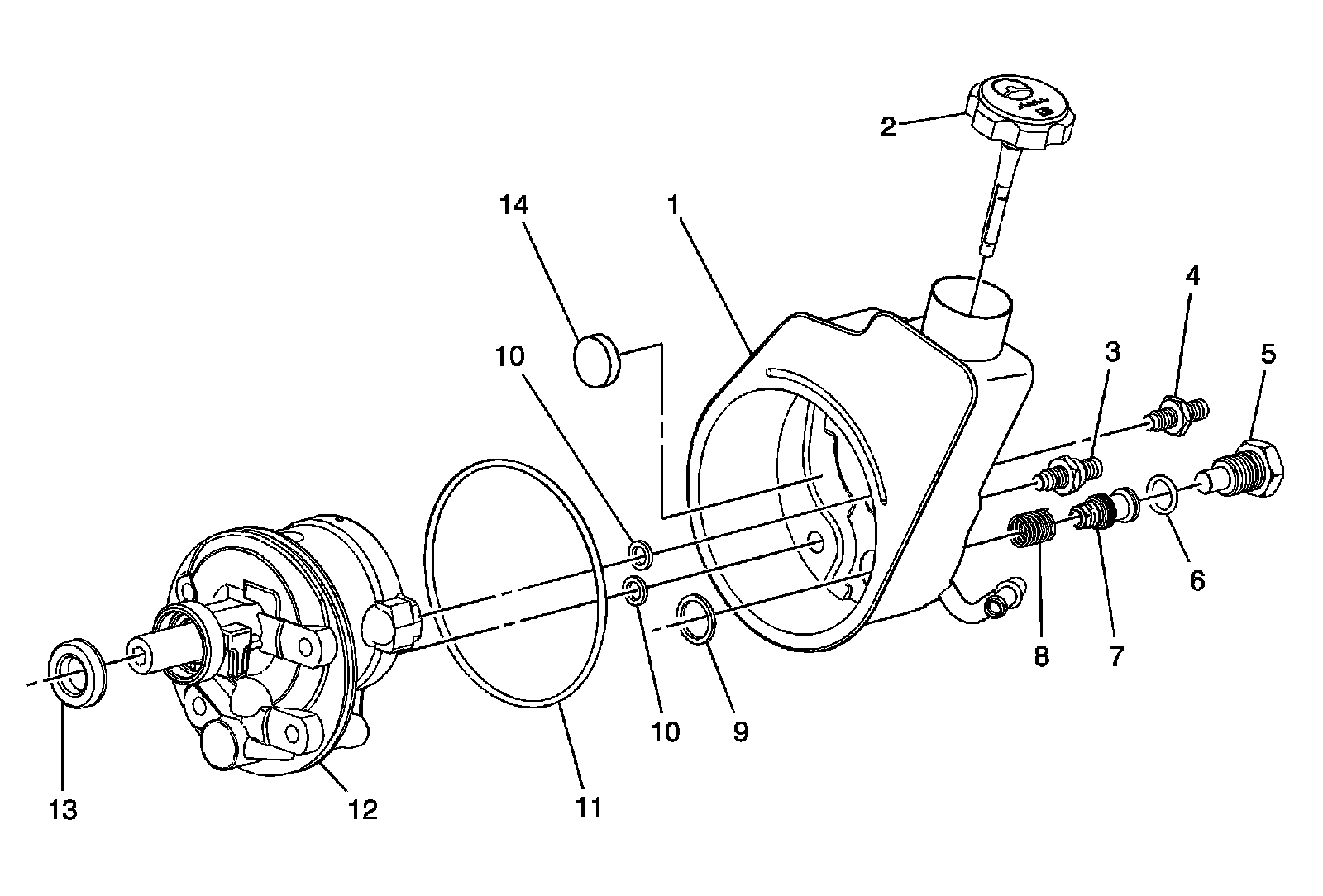

Power Steering Pump Disassembled View

Power Steering Pump Disassembled View:

1 - Power Steering Fluid Reservoir
2 - Power Steering Fluid Reservoir Cap
3 - Power Steering Fluid Reservoir Stud
4 - Power Steering Fluid Reservoir Stud
5 - Power Steering Pump Fitting
6 - Power Steering Pump Fitting Seal
7 - Power Steering Pump Flow Control Valve
8 - Power Steering Pump Flow Control Valve Spring
9 - Power Steering Pump Housing Seal
10 - Power Steering Pump Housing Seals
11 - Power Steering Fluid Reservoir Seal
12 - Power Steering Pump
13 - Power Steering Pump Shaft Seal
14 - Power Steering Fluid Reservoir Magnet
