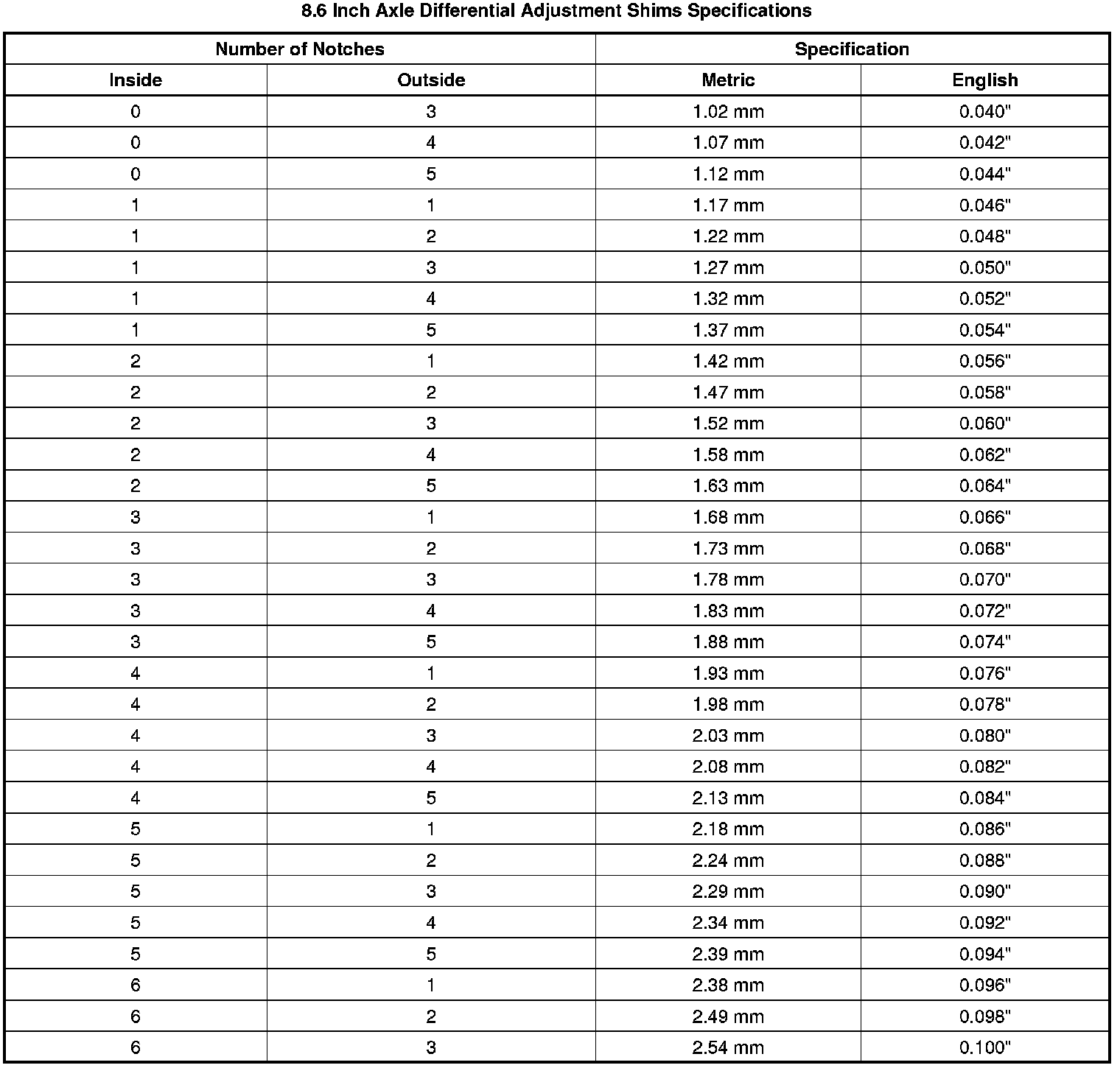

Differential Adjustment Shim Specifications
Differential Adjustment Shim Specifications
Differential Adjustment Shim Specifications
