Fuel Injector: Diagrams




Component Connector End Views

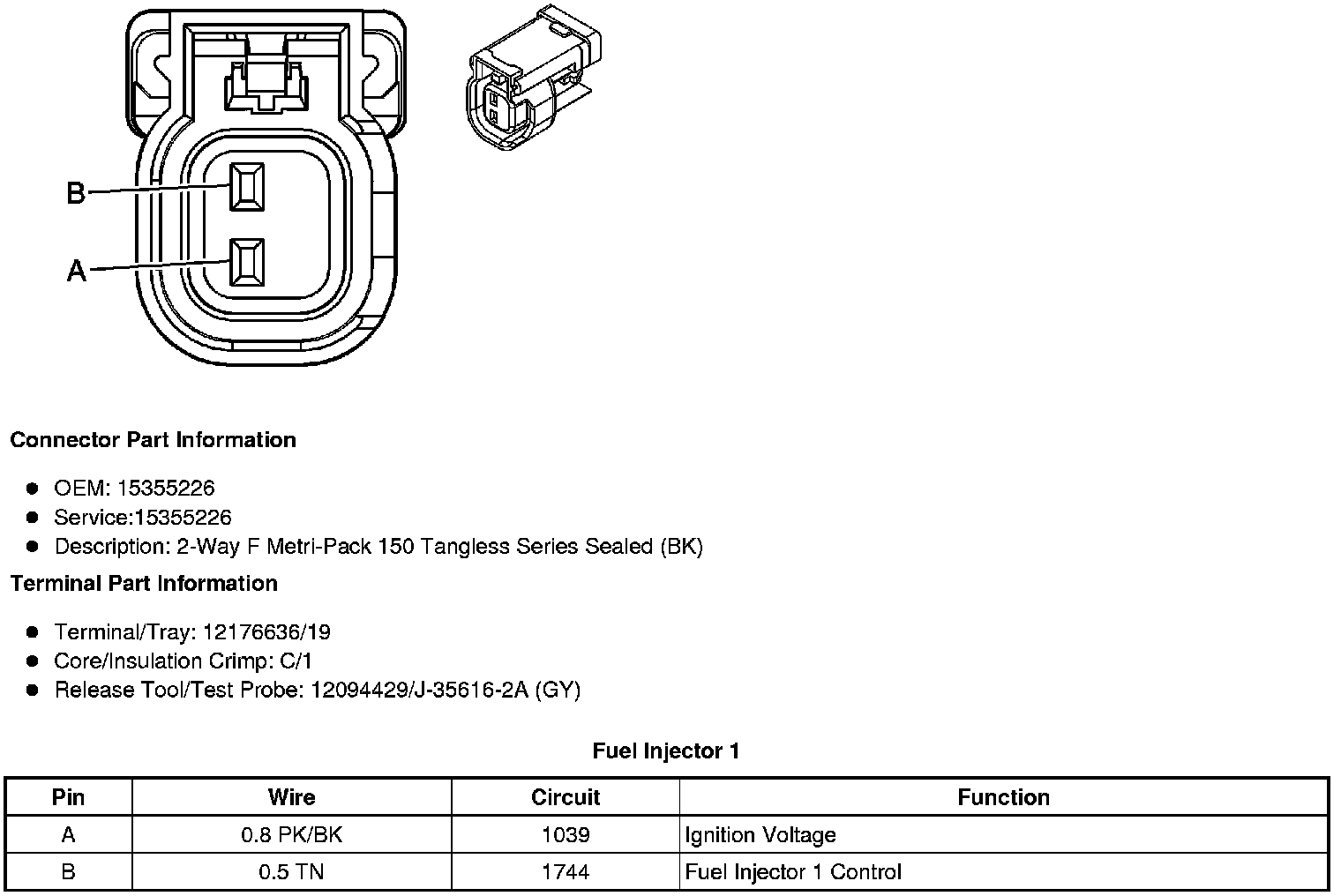

Fuel Injector 1





Fuel Injector 2





Fuel Injector 3





Fuel Injector 4

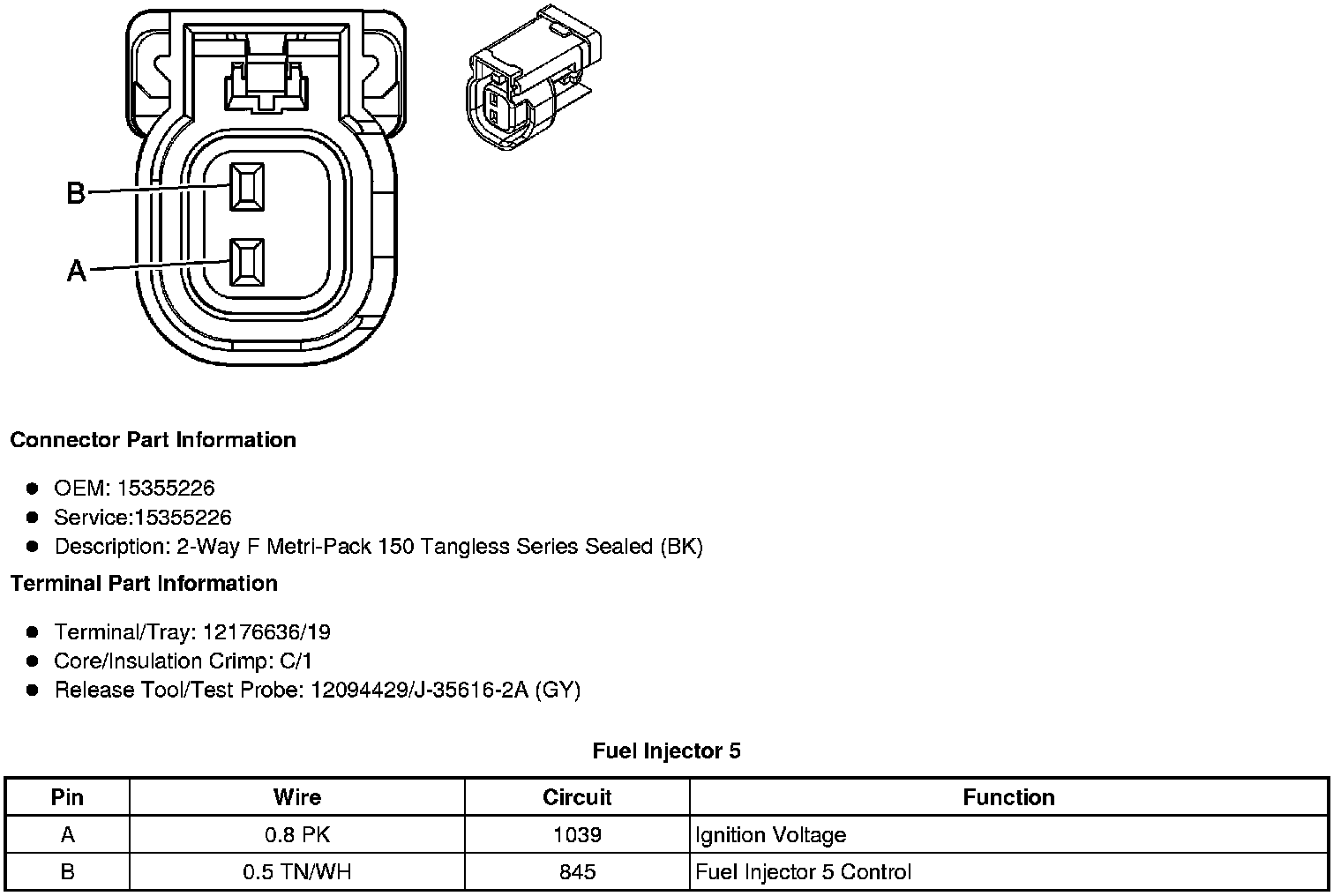

Fuel Injector 5





Fuel Injector 6





Fuel Injector 7

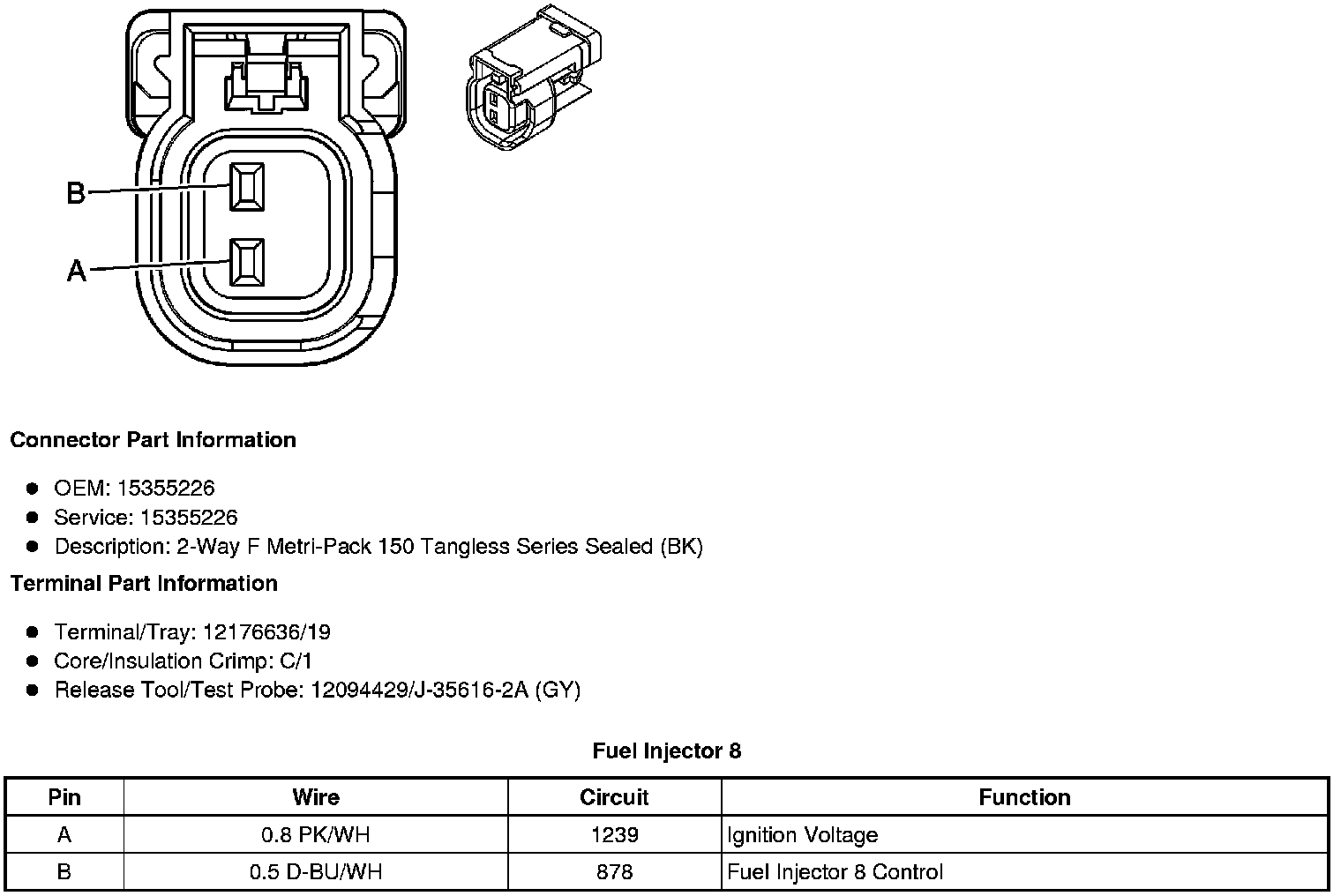

Fuel Injector 8
