G201




Ground Views

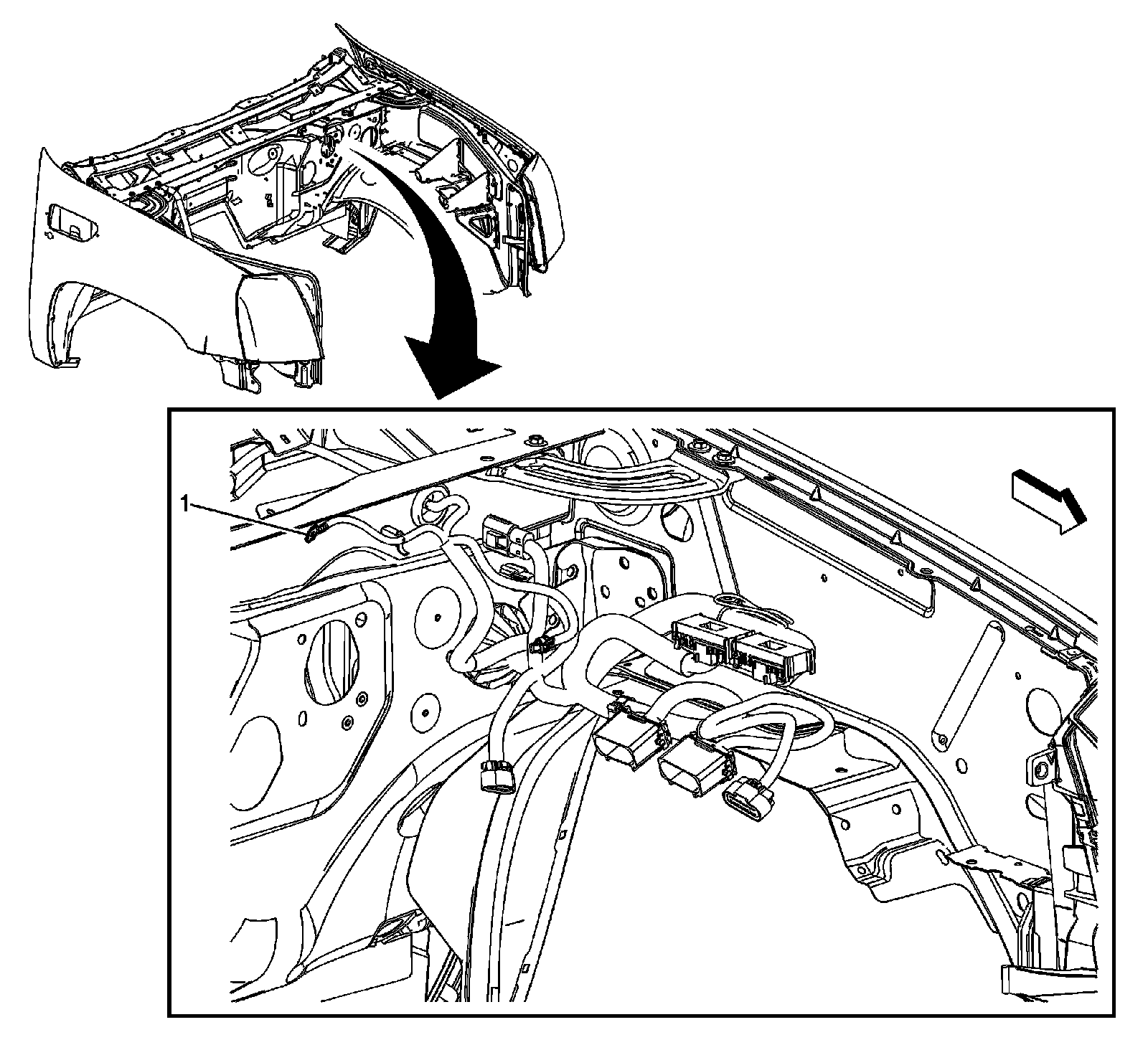

Instrument Panel Harness Underhood Ground (X88/Z88/Z75)




1 - G110

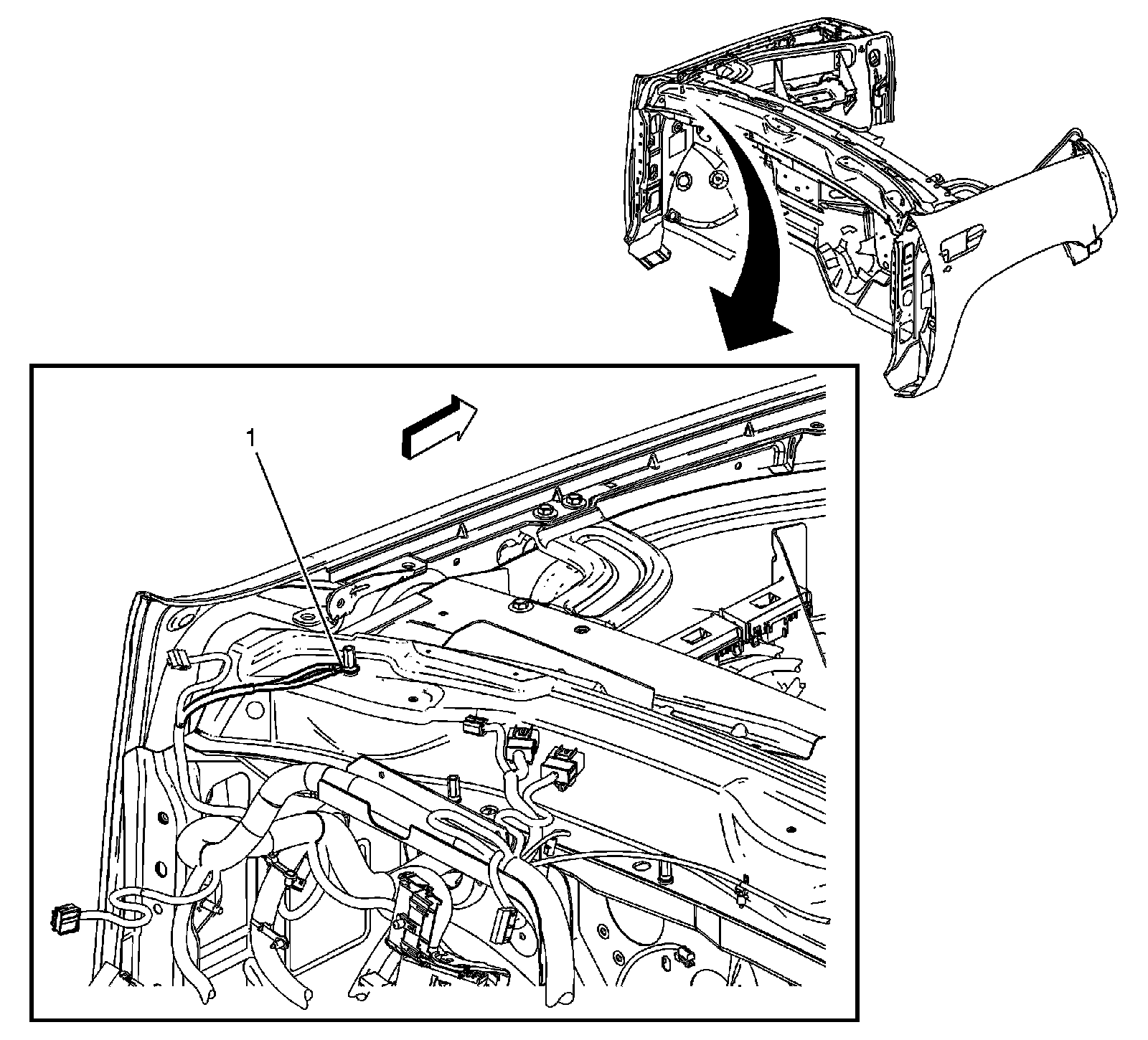

Instrument Panel Harness Passenger Compartment (X88/Z88/Z75)(HP2)




1 - G201
