Master Connector List
Master Electrical Component List

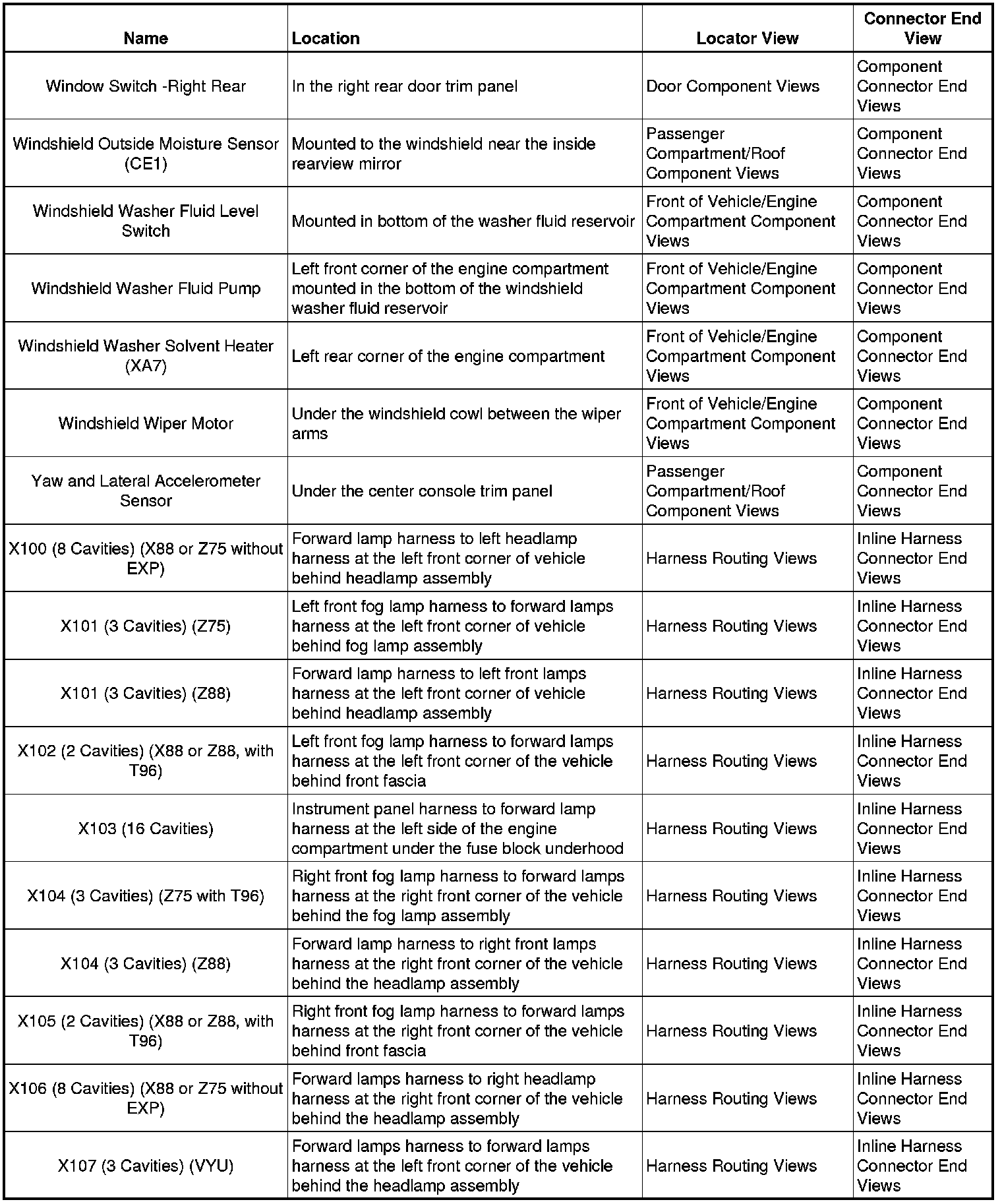

Wi - X107:

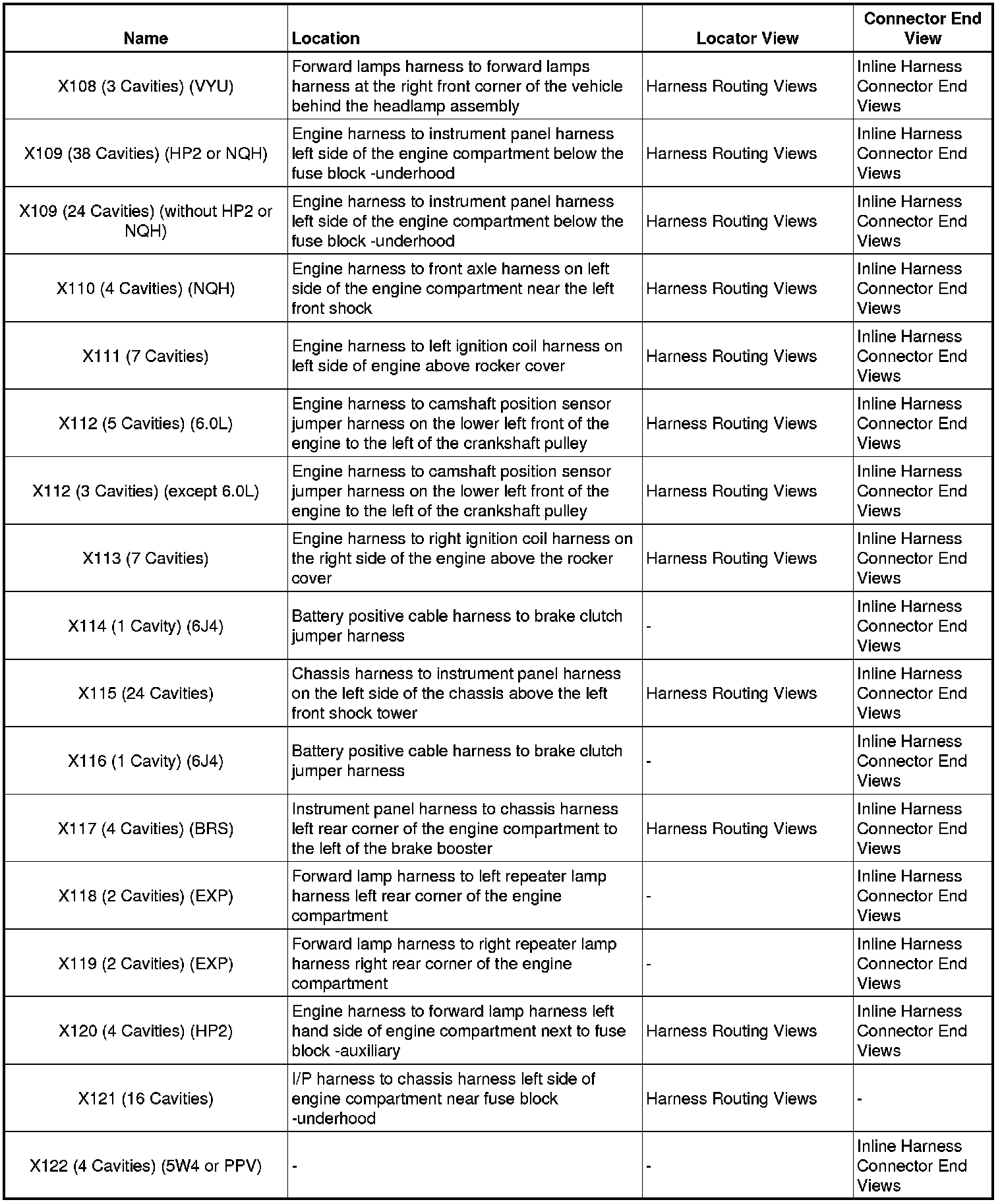

X108 - X122:

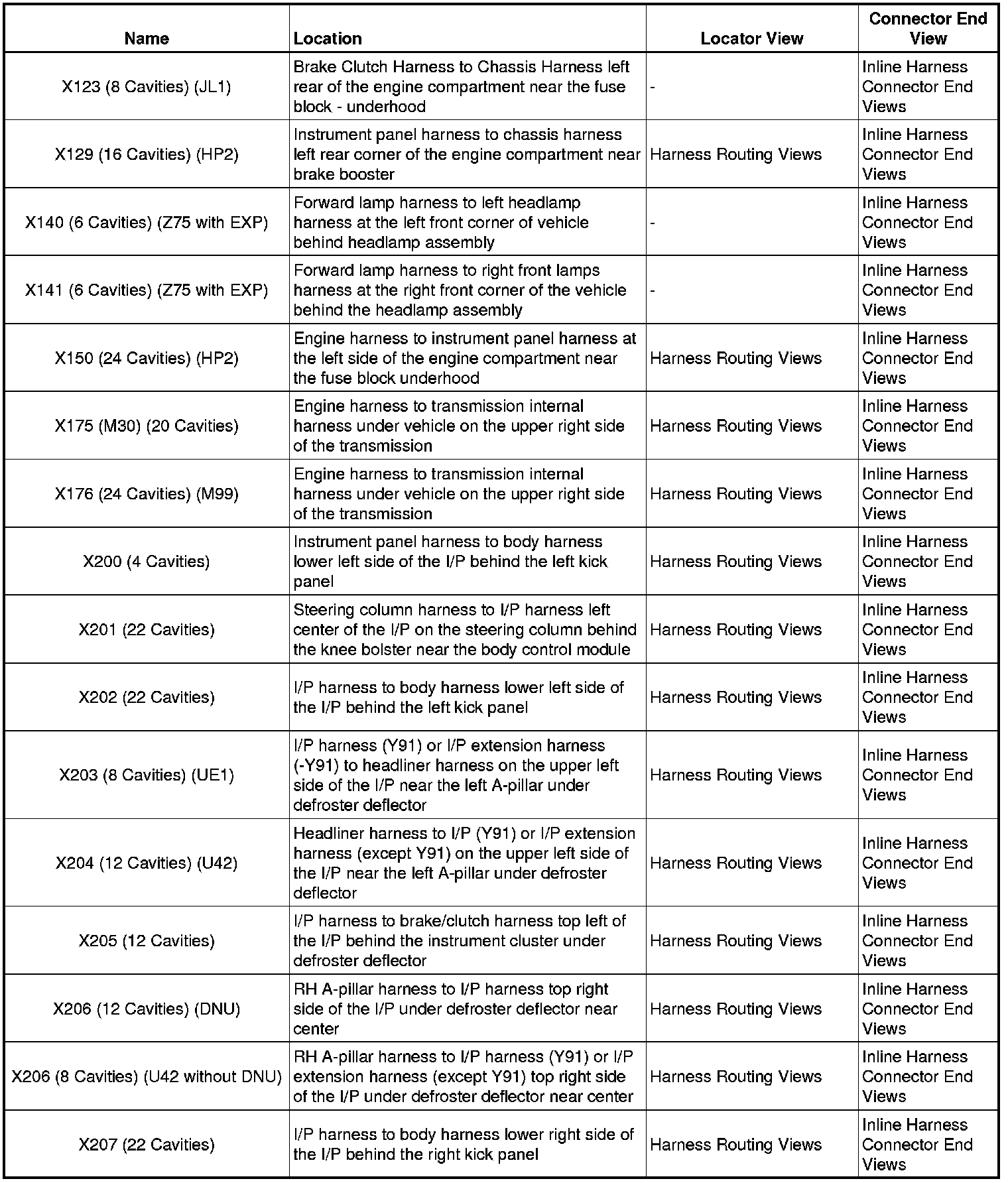

X123 - X207:

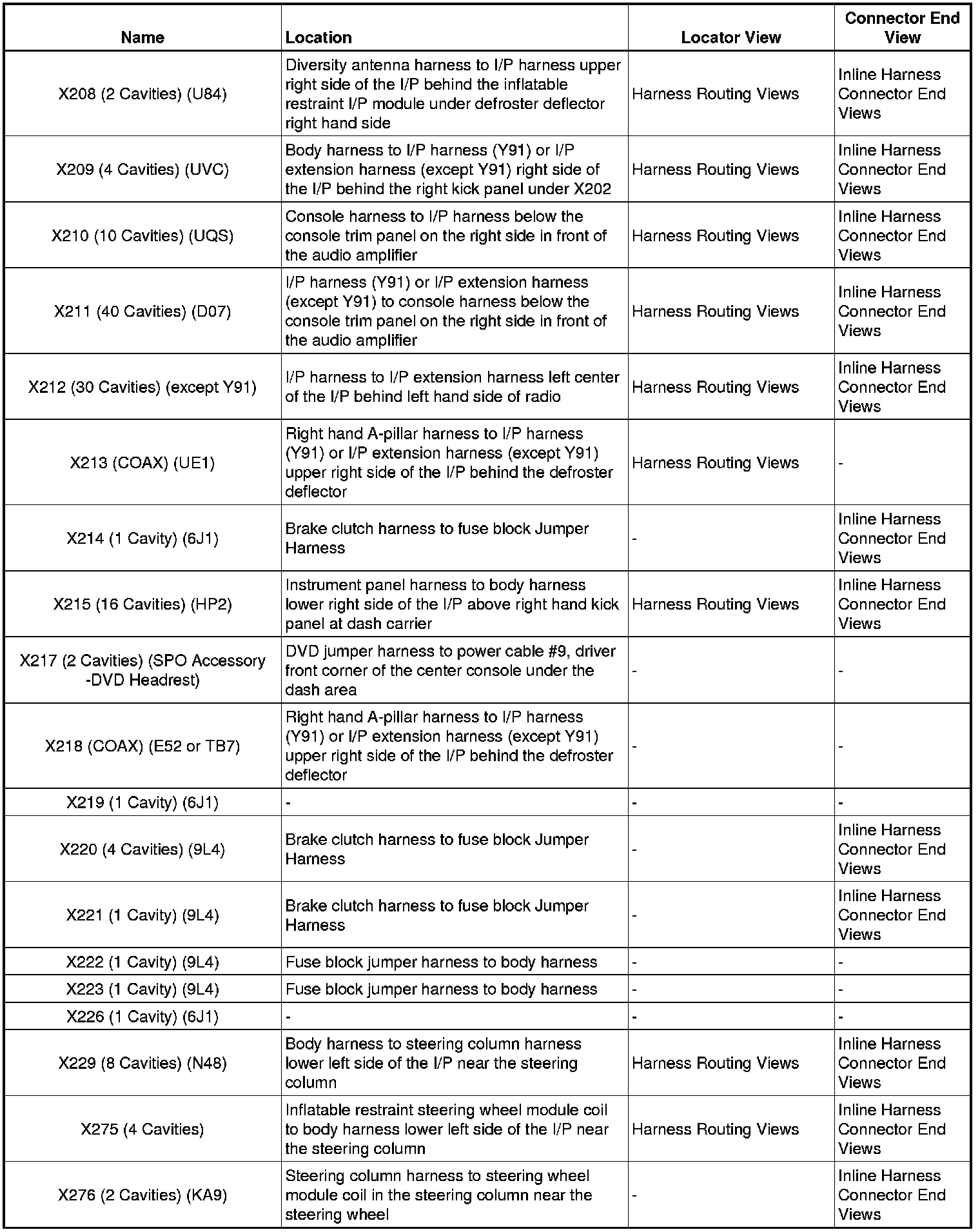

X208 - X276:

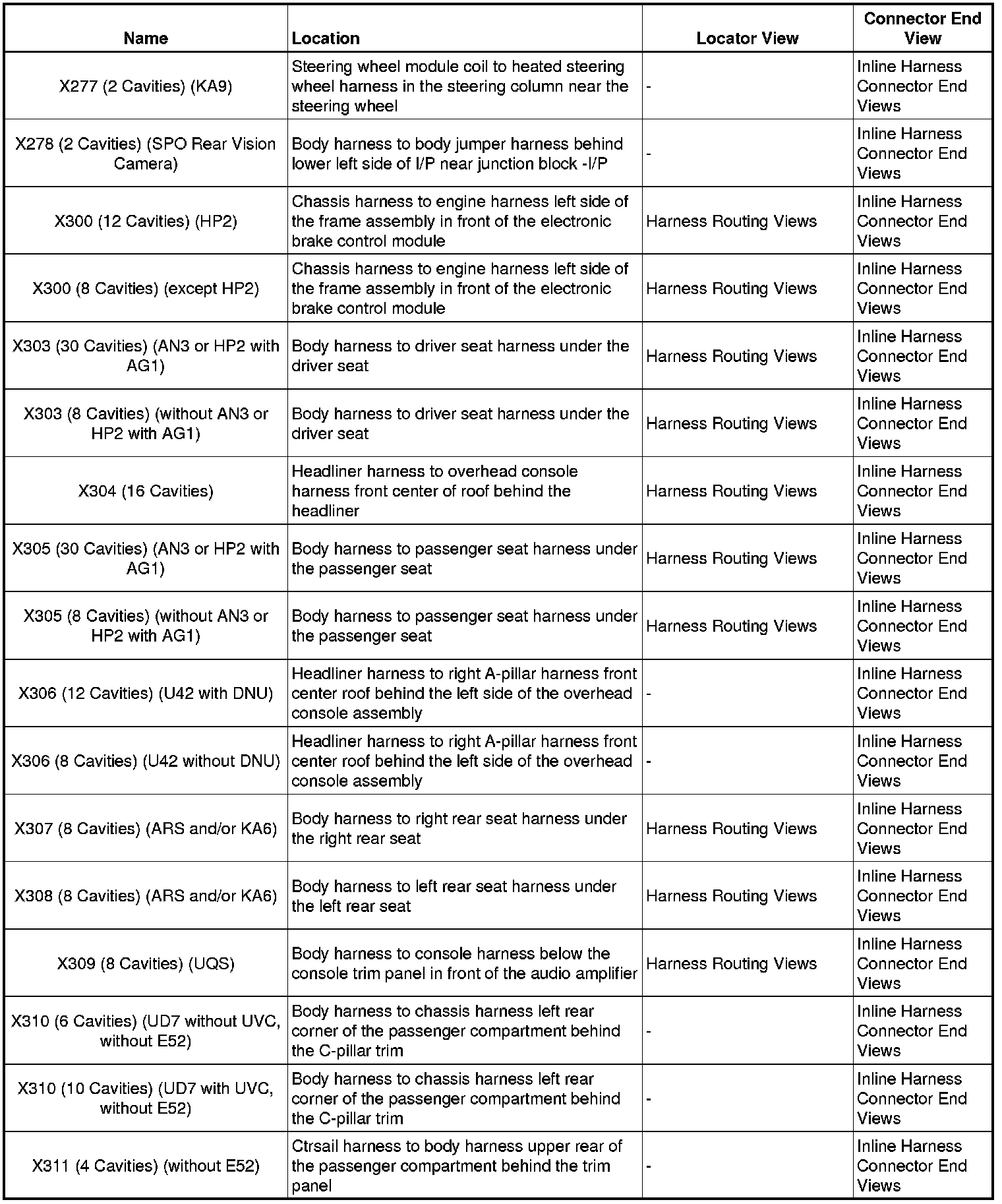

X277 - X311:

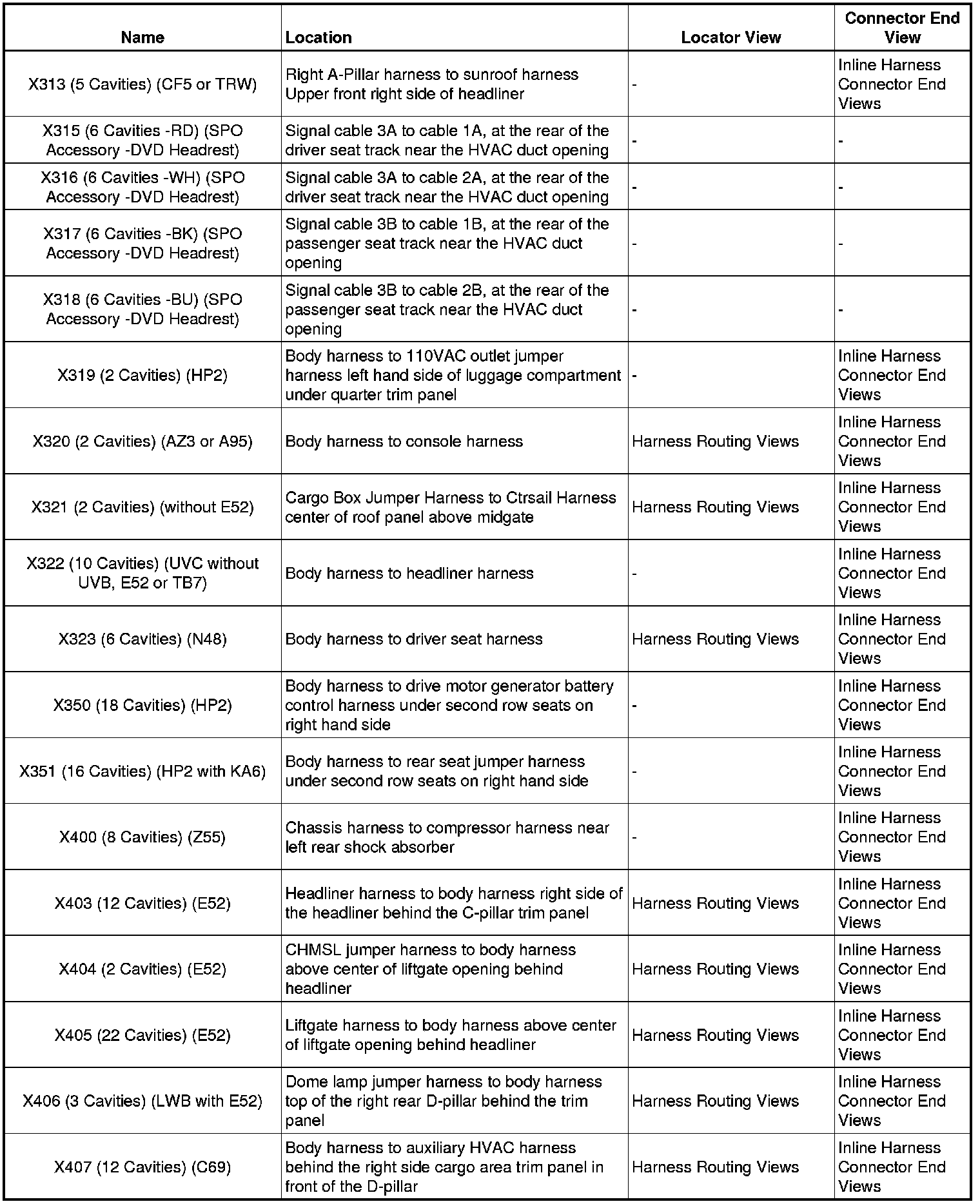

X313 - X407:

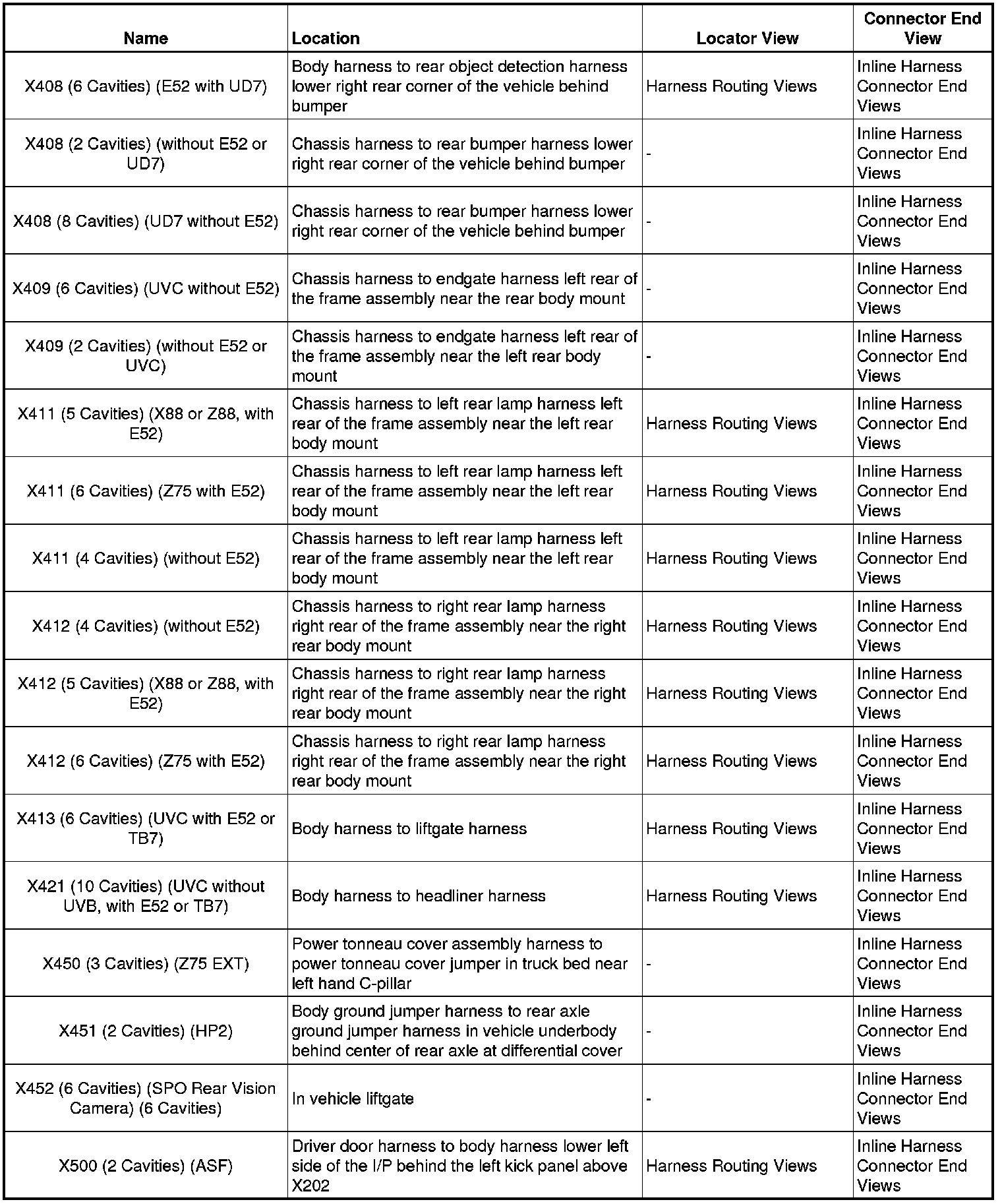

X408 - X500:

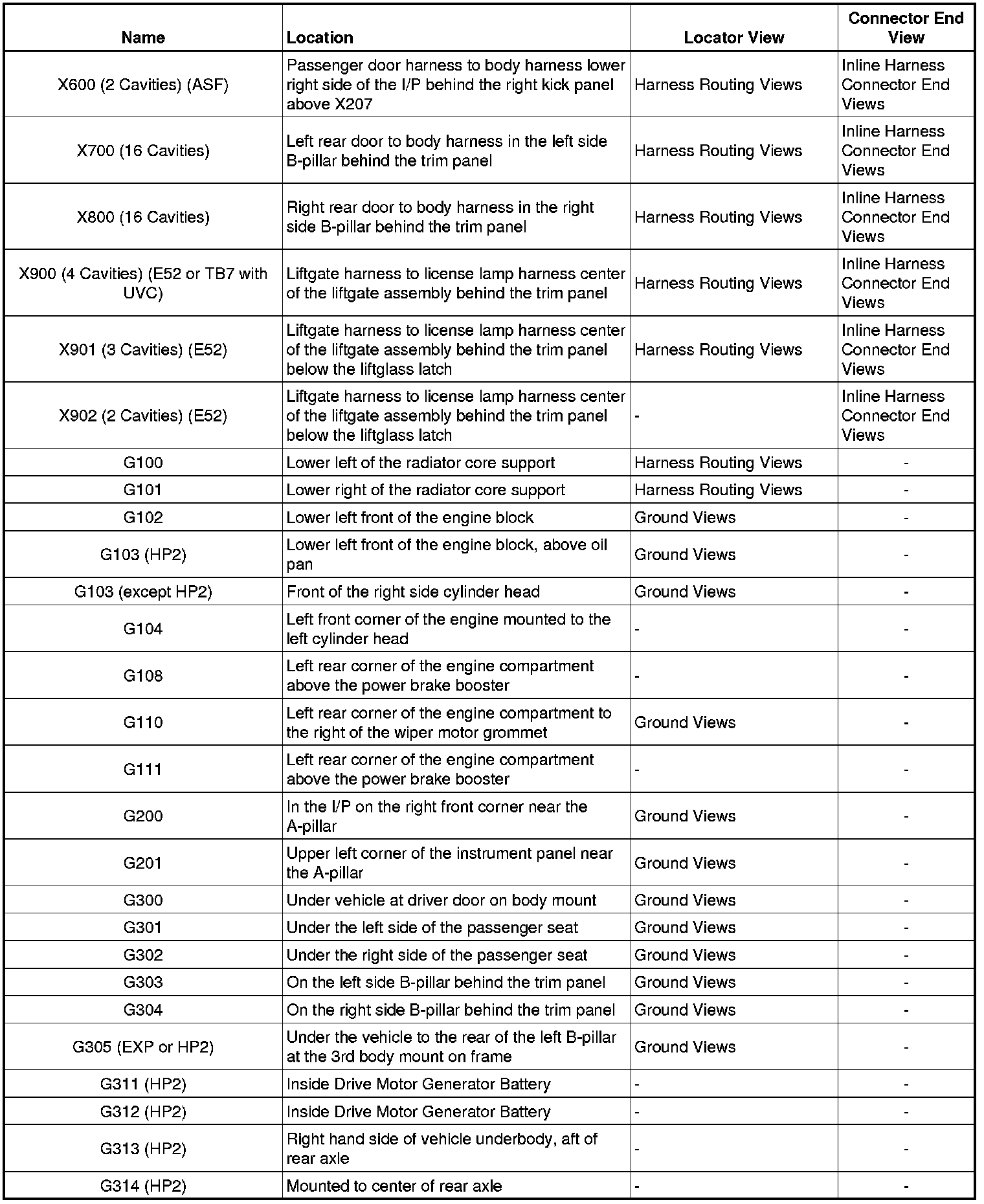

X600 - G314:
