Trailer Lighting Relay: Locations




Electrical Center Identification Views

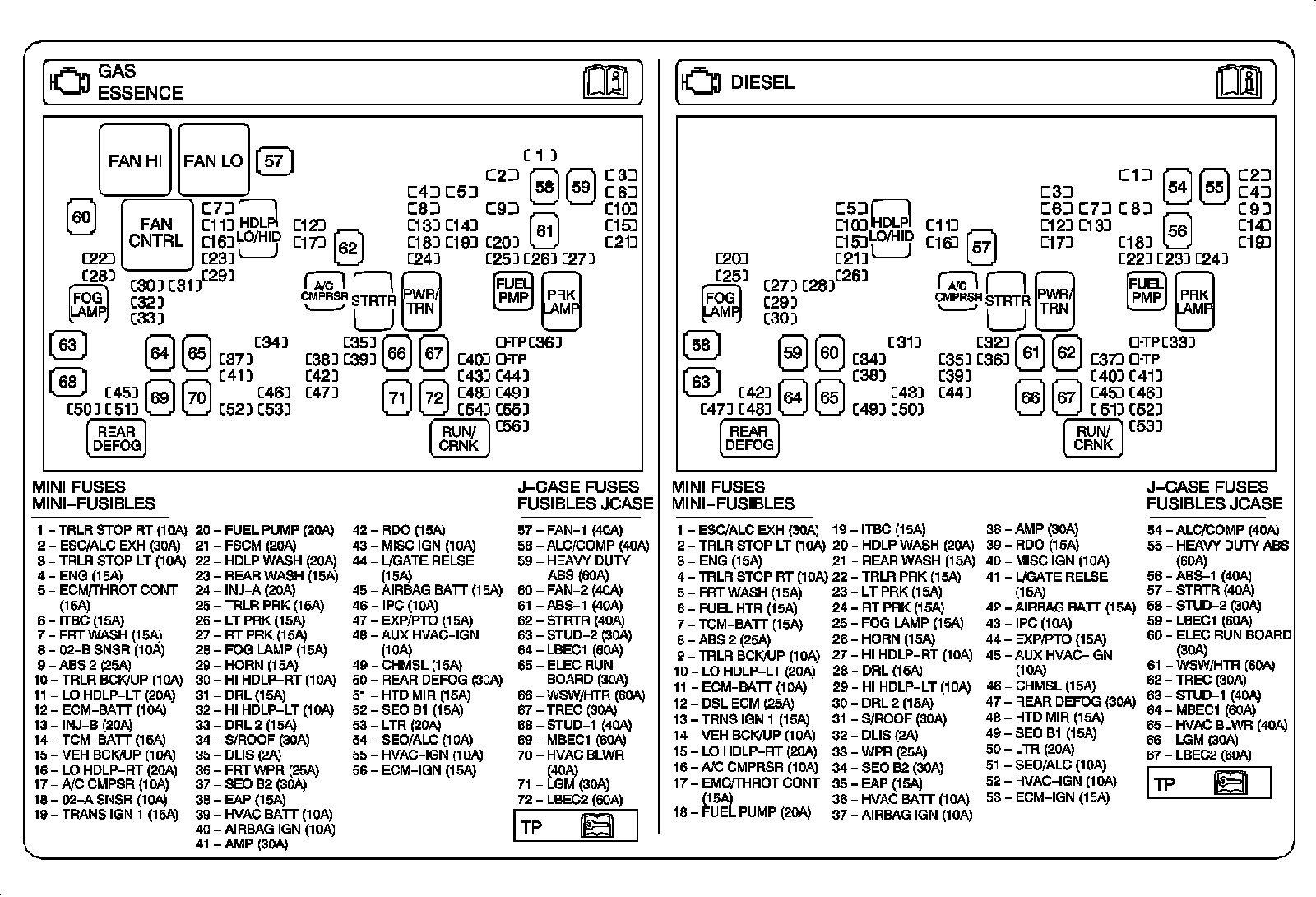

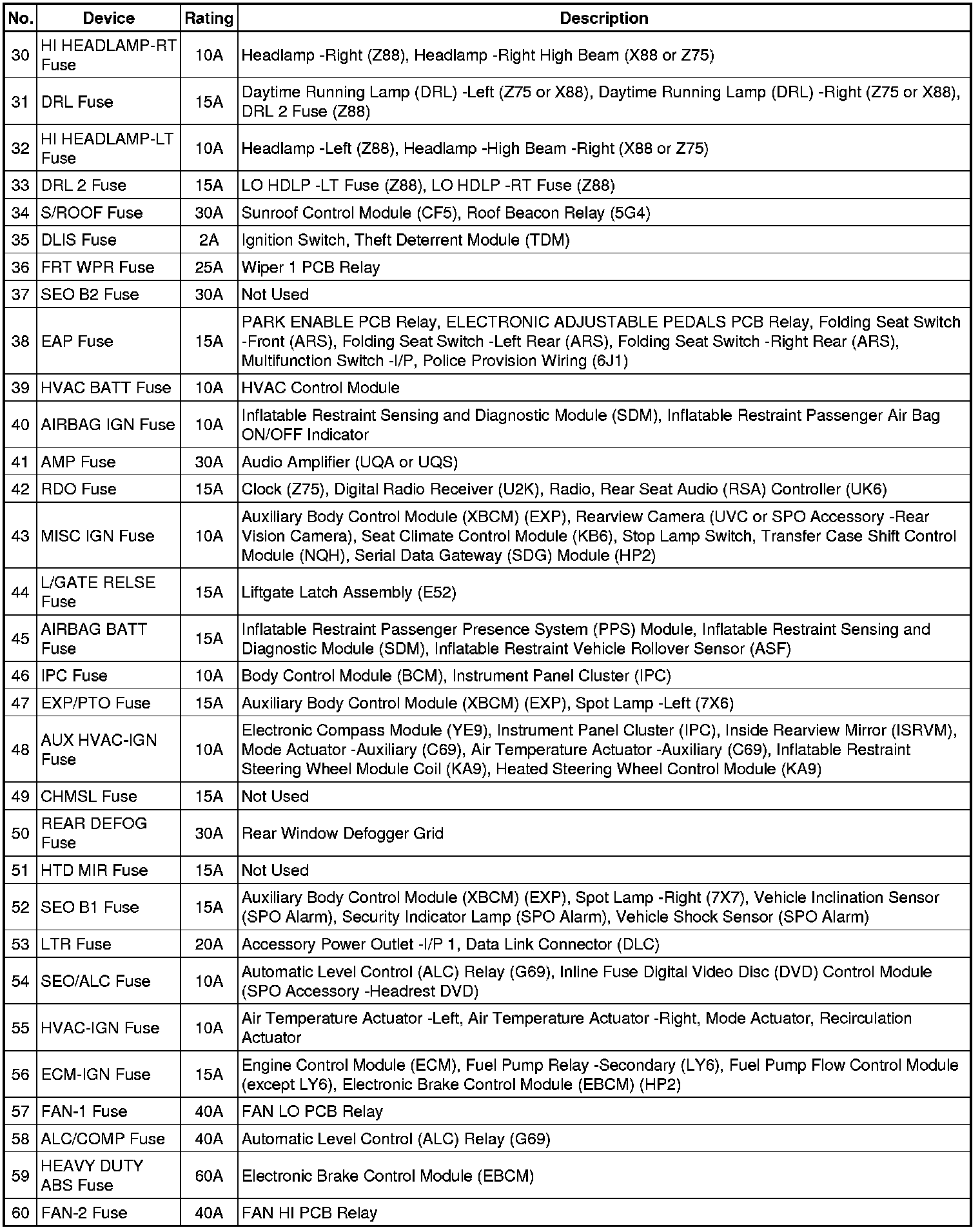

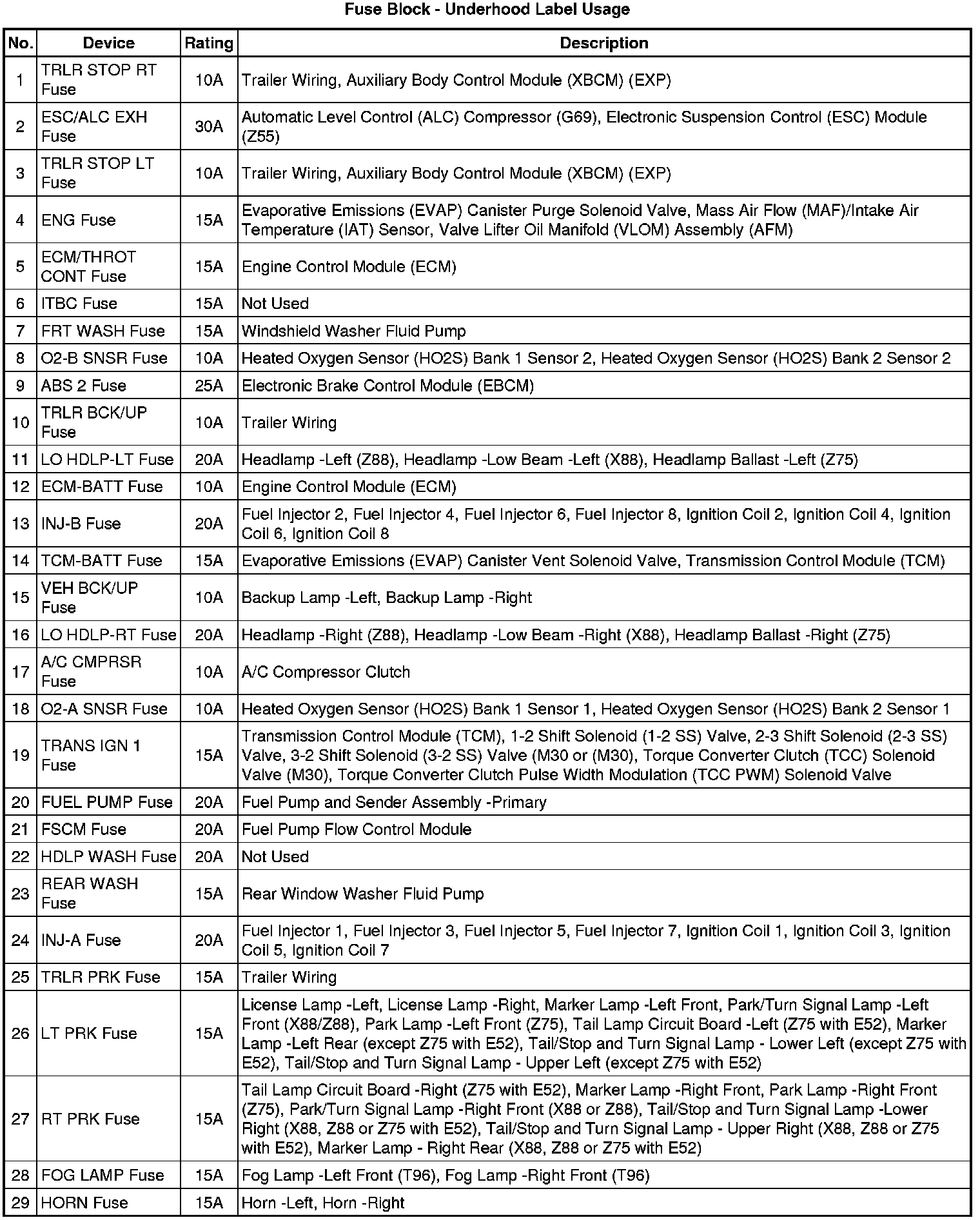

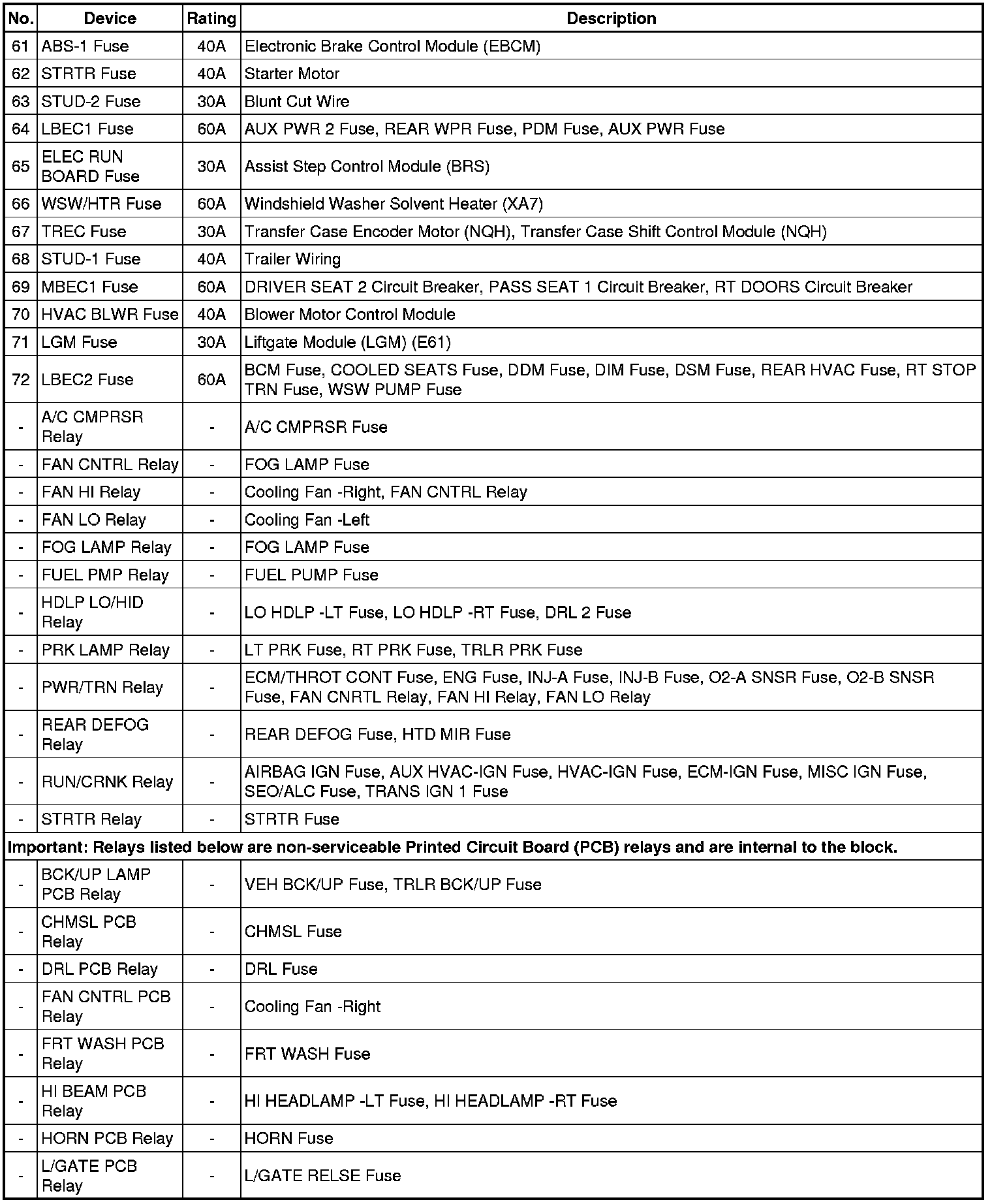

Fuse Block - Underhood Label
