Parking Lamp: Diagrams




Component Connector End Views

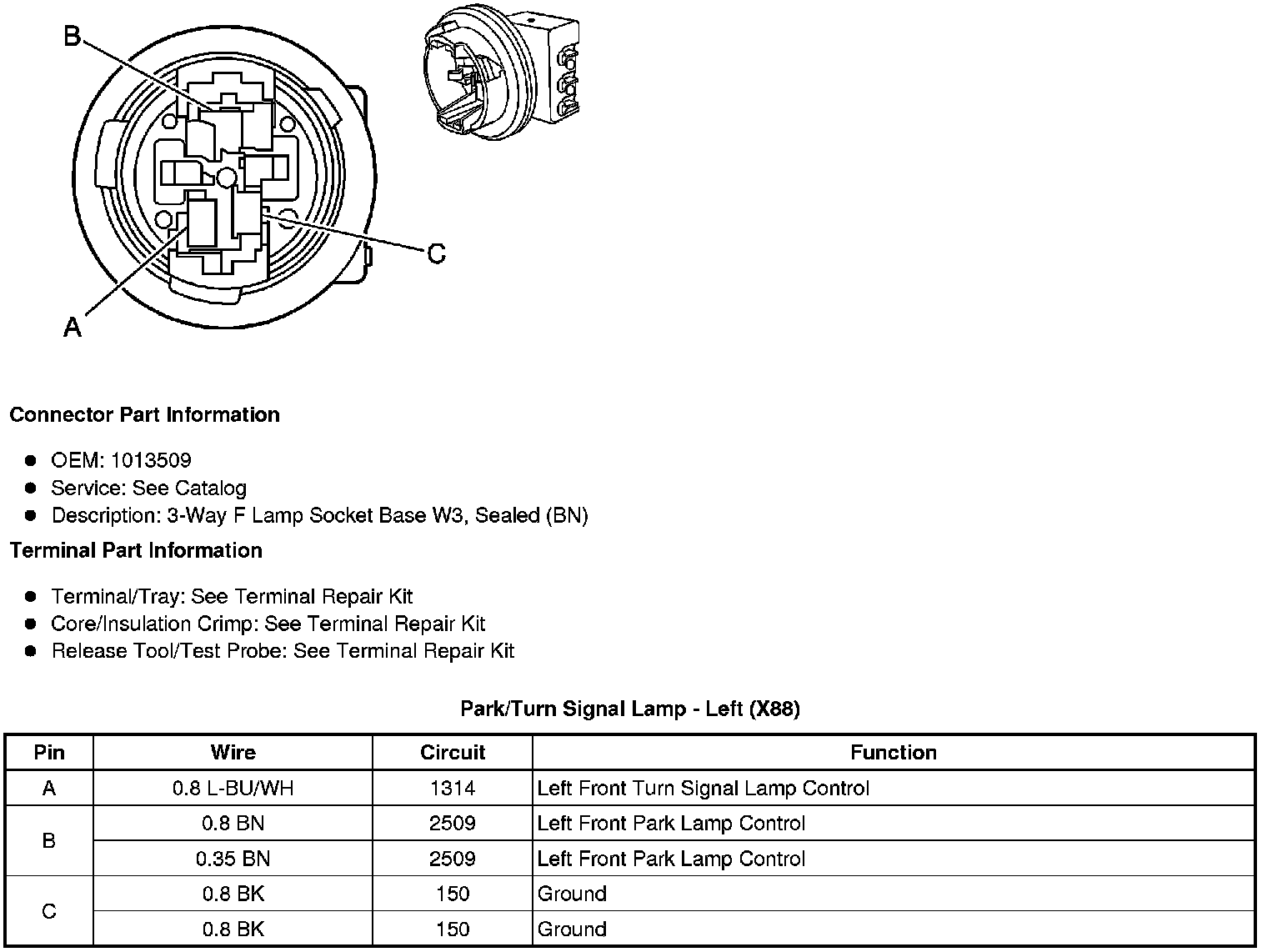

Park/Turn Signal Lamp - Left (X88)

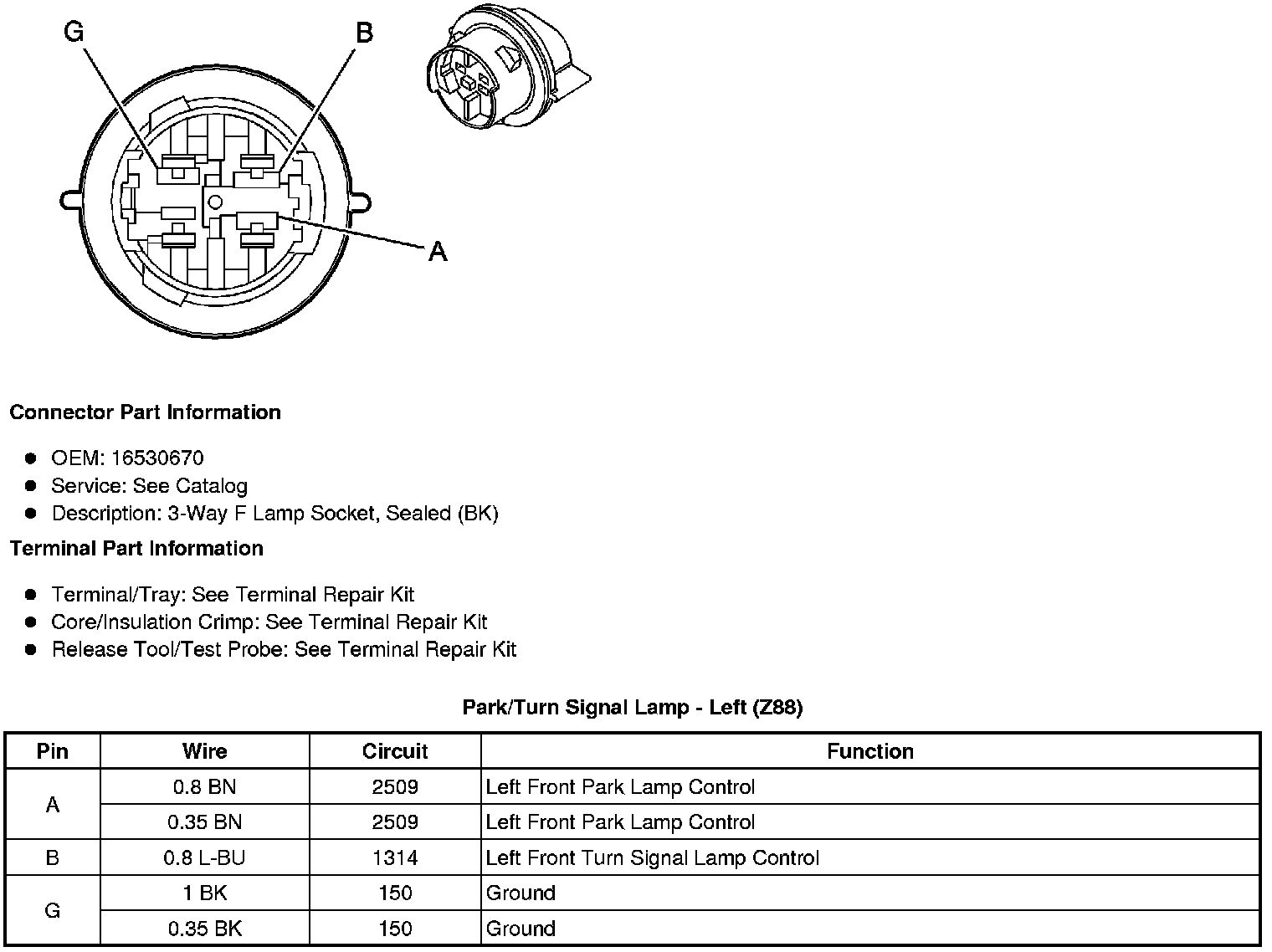

Park/Turn Signal Lamp - Left (Z88)

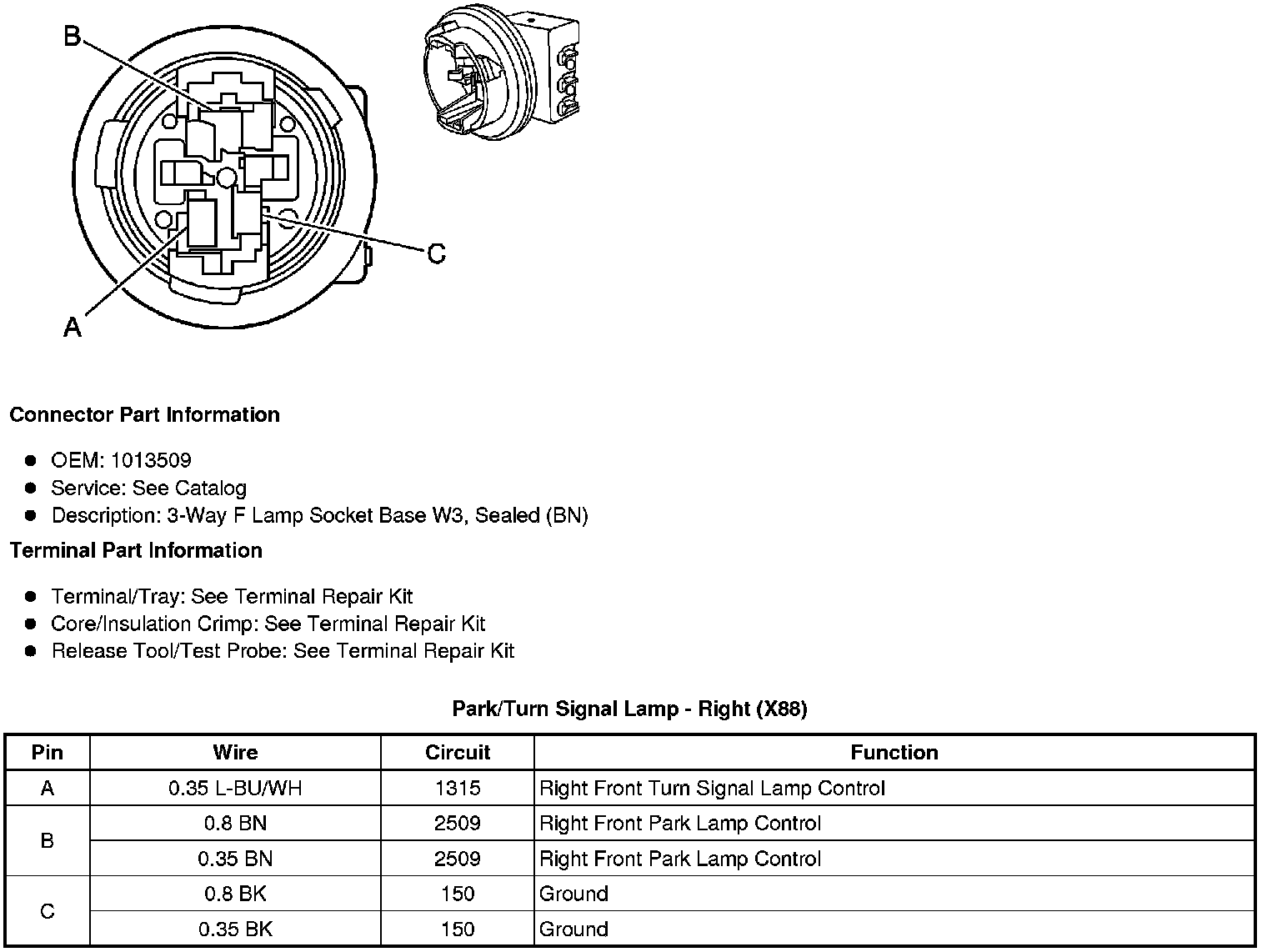

Park/Turn Signal Lamp - Right (X88)

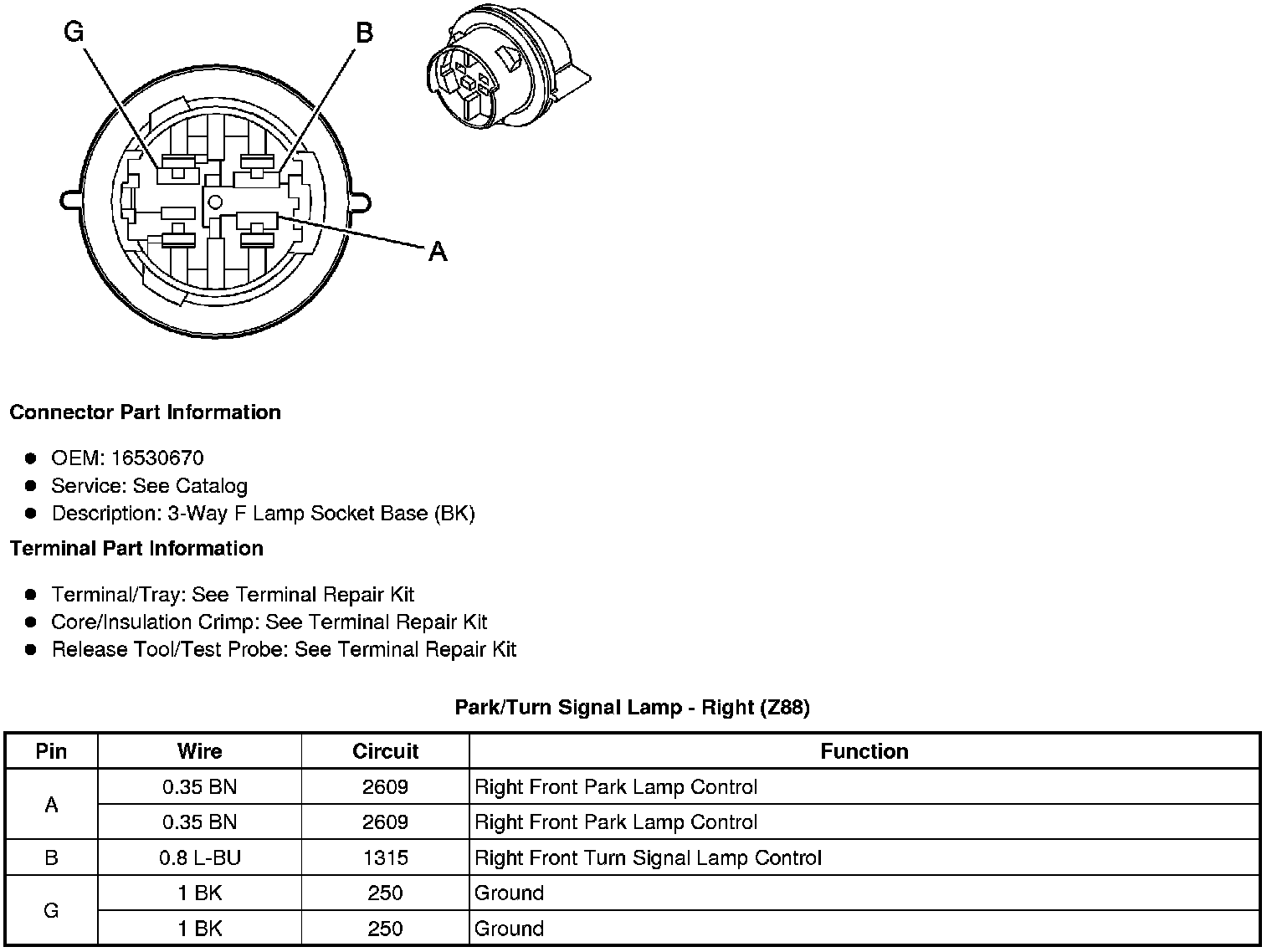

Park/Turn Signal Lamp - Right (Z88)
