Headlamp: Diagrams




Component Connector End Views

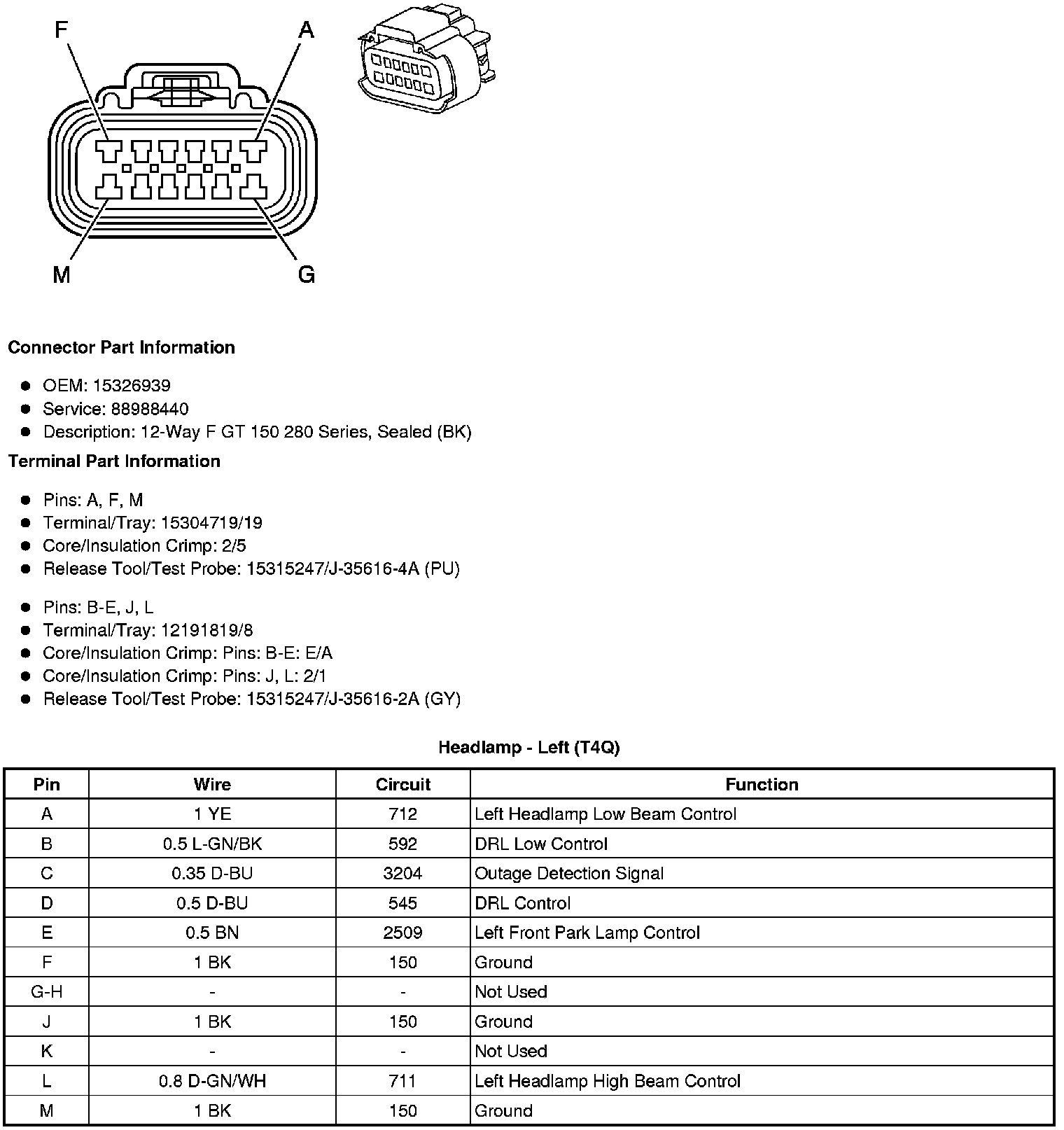

Headlamp - Left (T4Q)

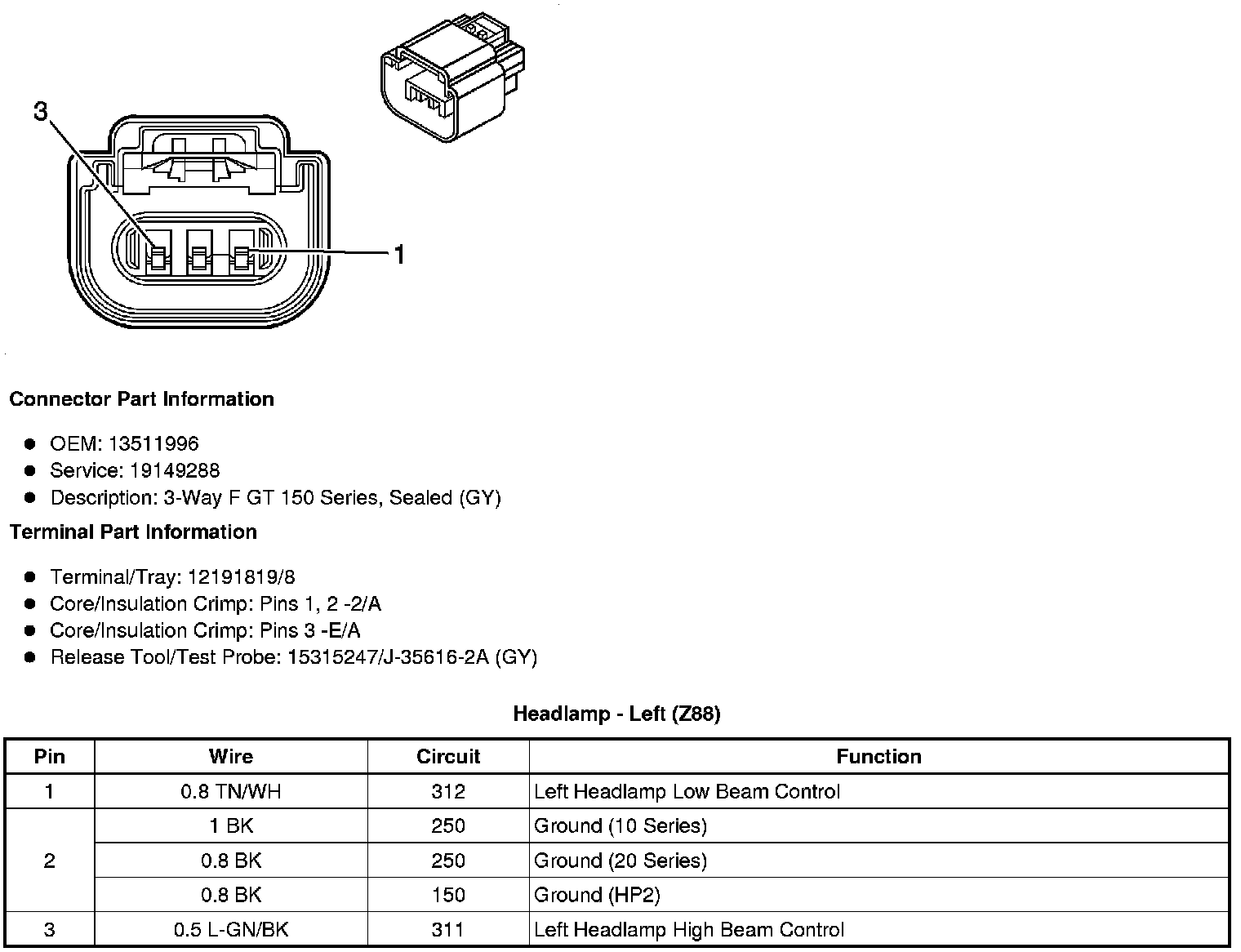

Headlamp - Left (Z88)





Headlamp - Left High Beam (X88)





Headlamp - Left Low Beam (X88)

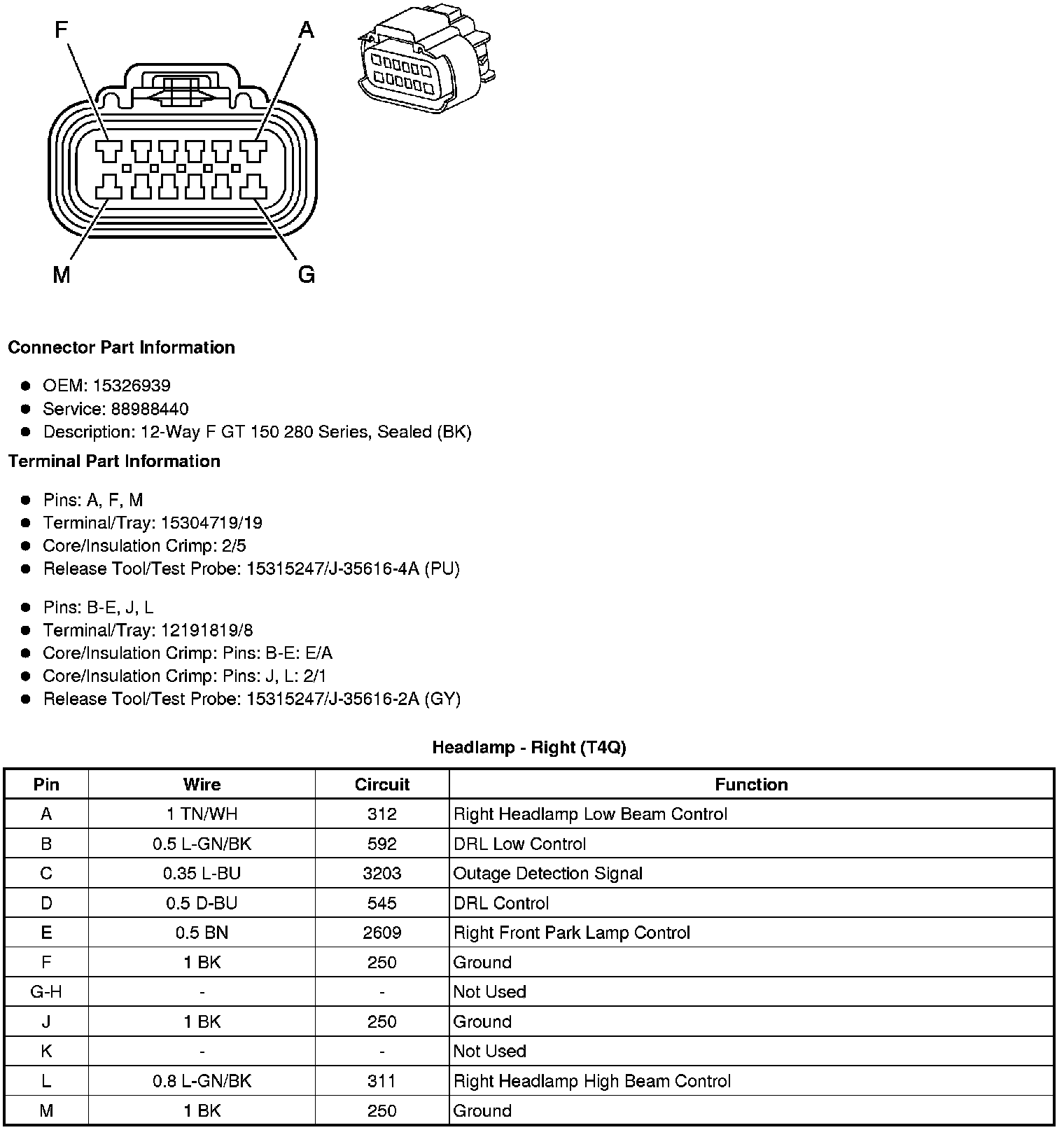

Headlamp - Right (T4Q)

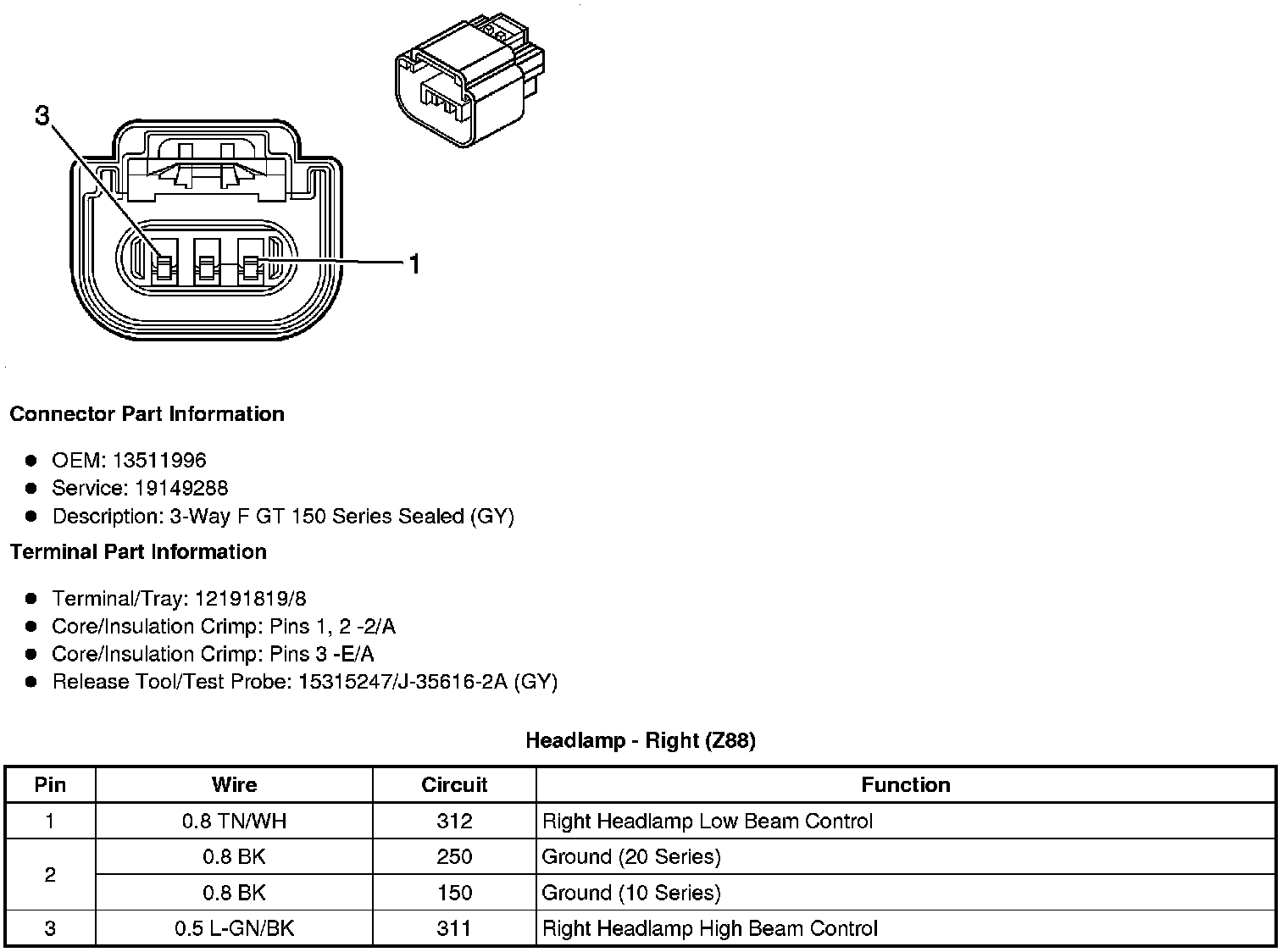

Headlamp - Right (Z88)





Headlamp - Right High Beam (X88)





Headlamp - Right Low Beam (X88)
