Center Mounted Brake Lamp: Diagrams

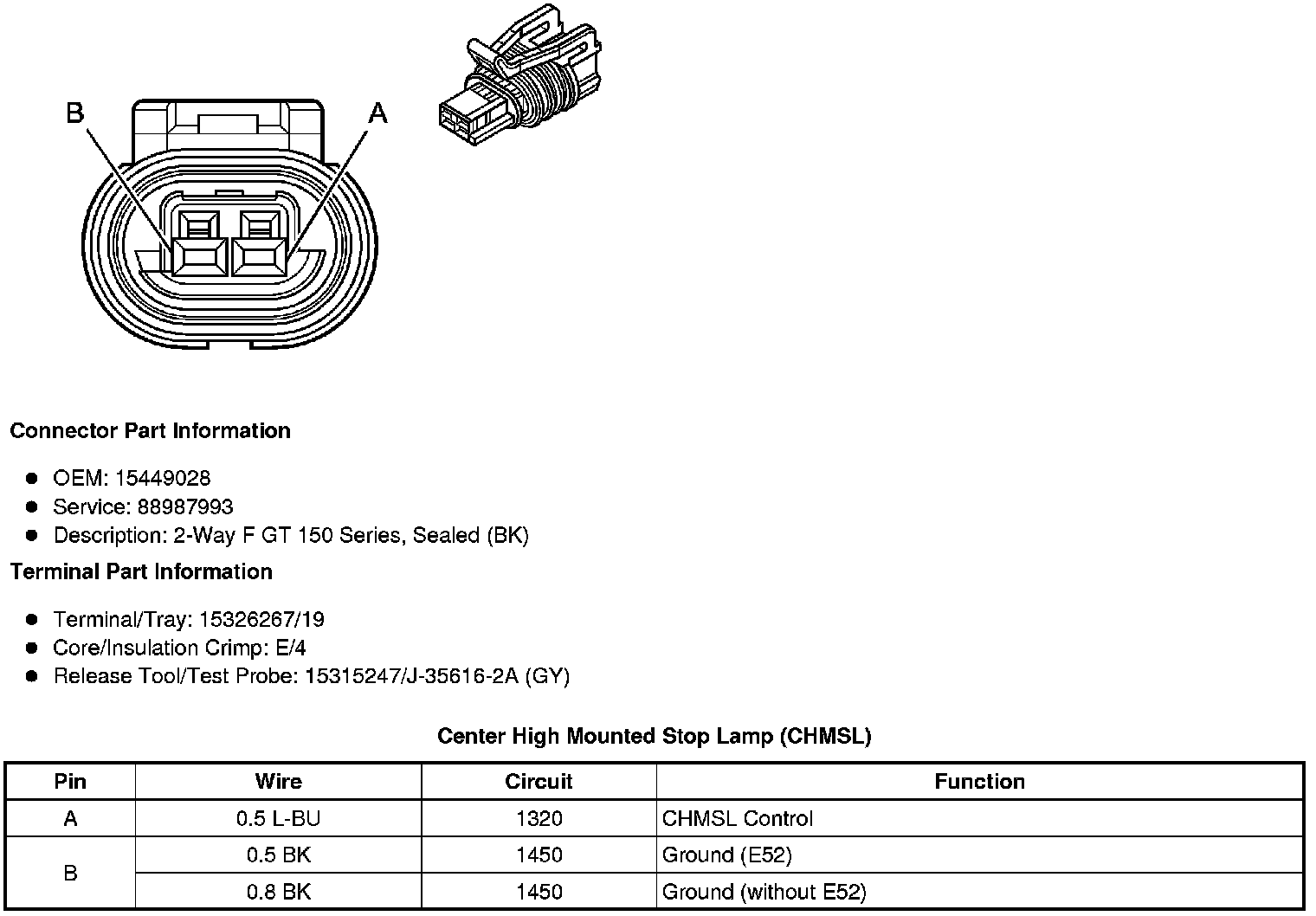

Component Connector End Views

Center High Mounted Stop Lamp (CHMSL)
