Backup Lamp: Diagrams




Component Connector End Views

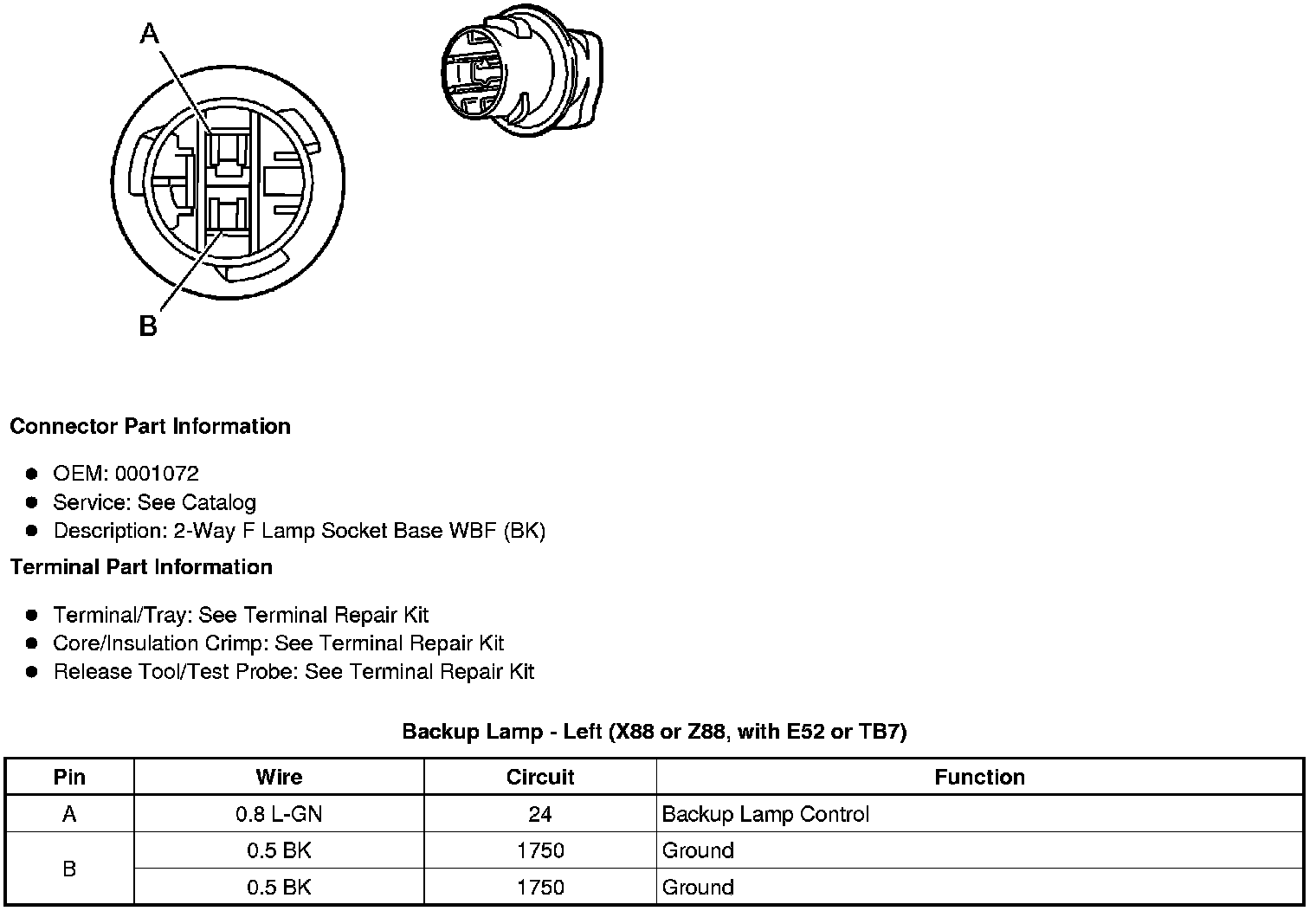

Backup Lamp - Left (X88 or Z88, with E52 or TB7)

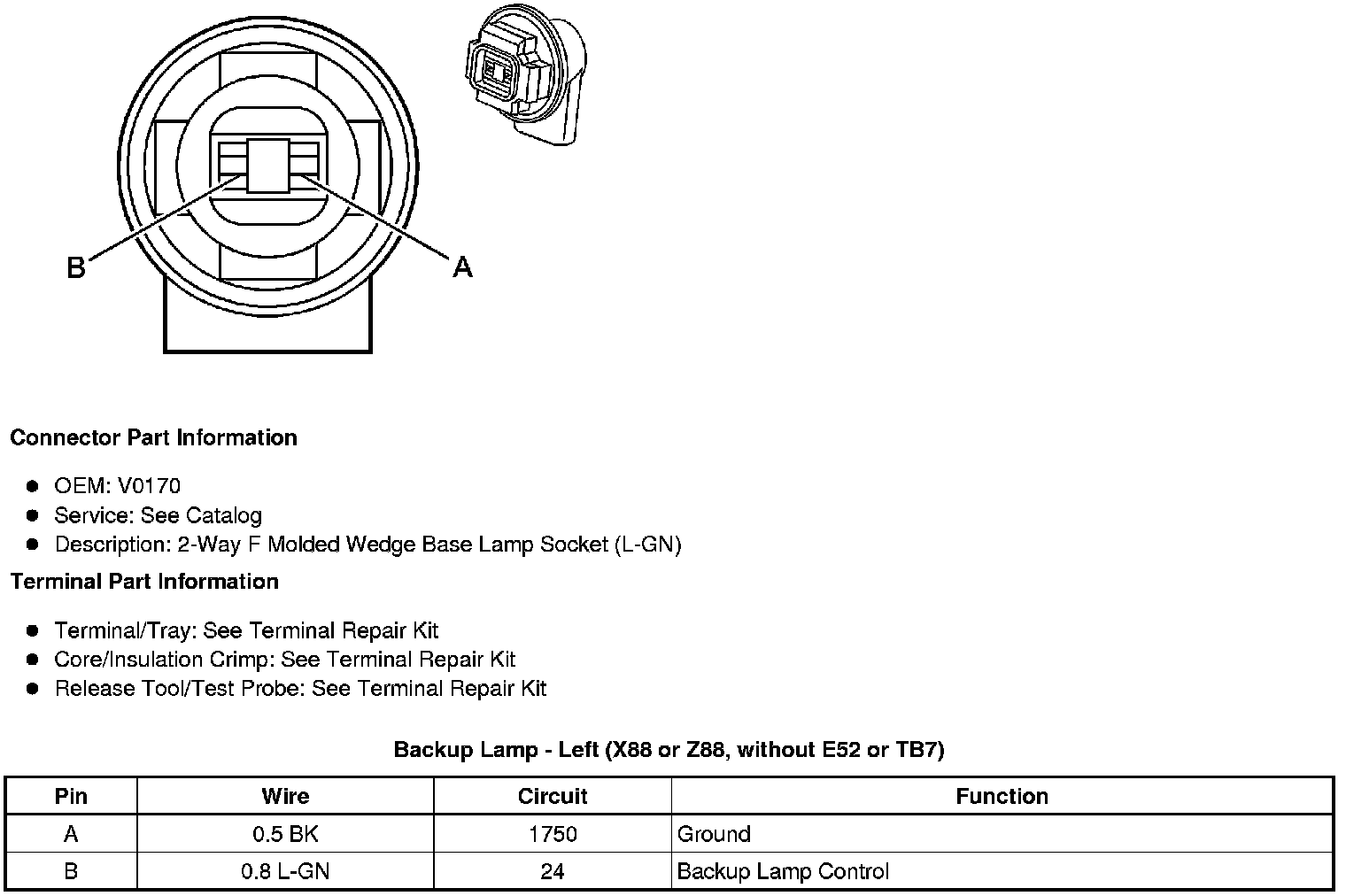

Backup Lamp - Left (X88 or Z88, without E52 or TB7)





Backup Lamp - Left (Z75)





Backup Lamp - Right (X88 or Z88, with E52 or TB7)





Backup Lamp - Right (X88 or Z88, without E52 or TB7)





Backup Lamp - Right (Z75)
