G400




Ground Views

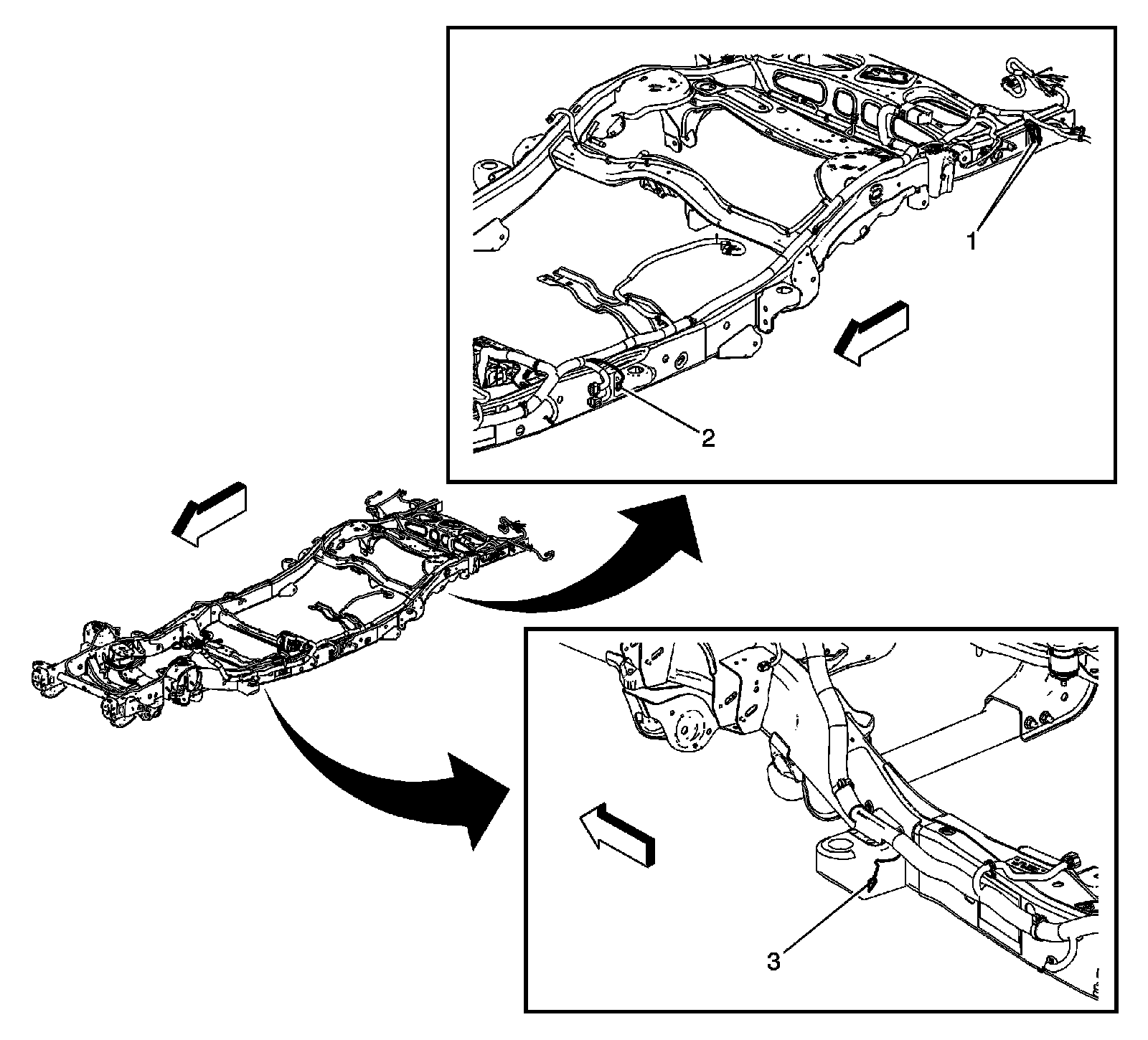

Chassis Component Grounds (Utility)




1 - G400
2 - G305 (EXP or HP2)
3 - G300
