4L60-E/4L65-E/4L70-E Automatic Transmission

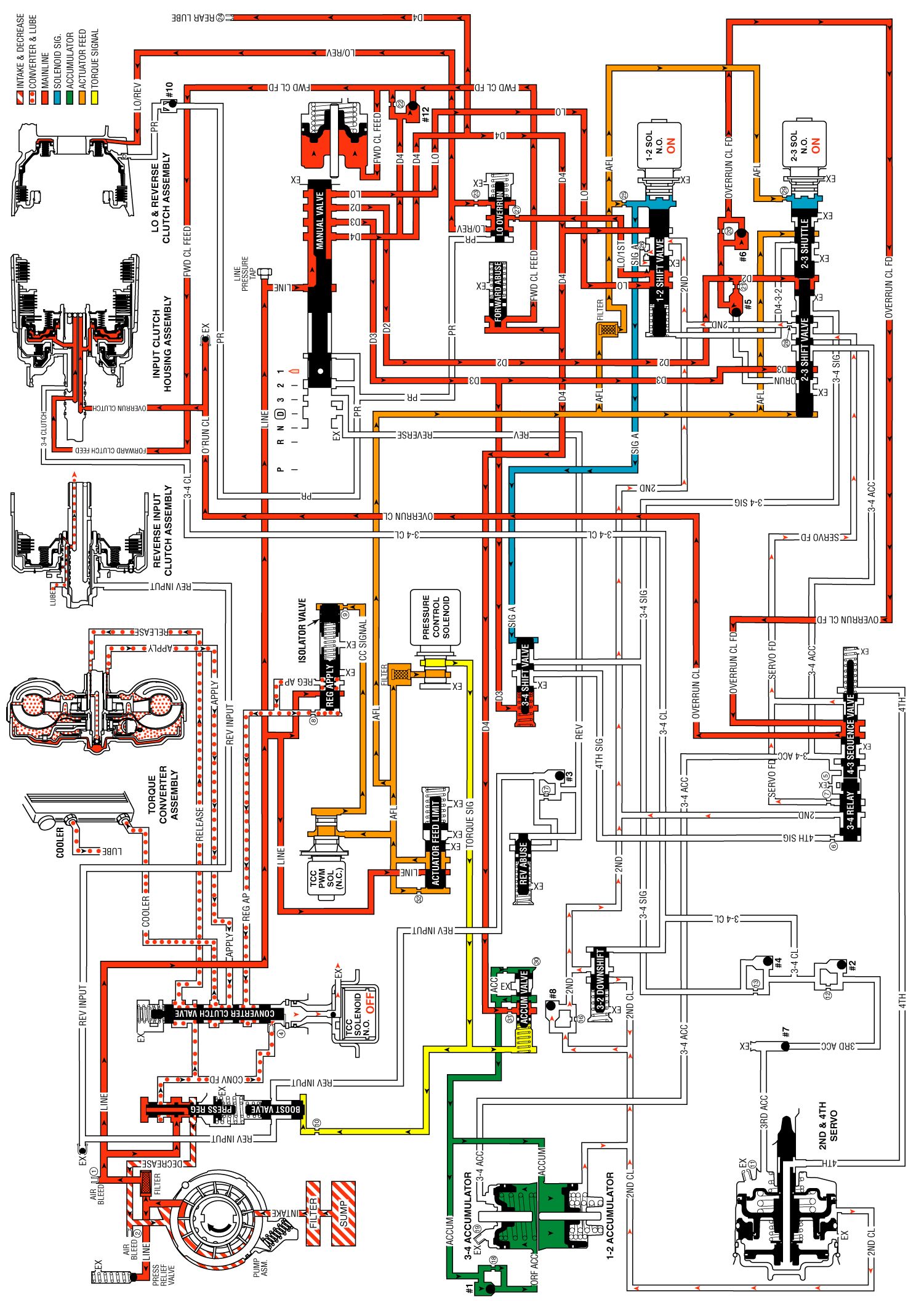

Park - Engine Running

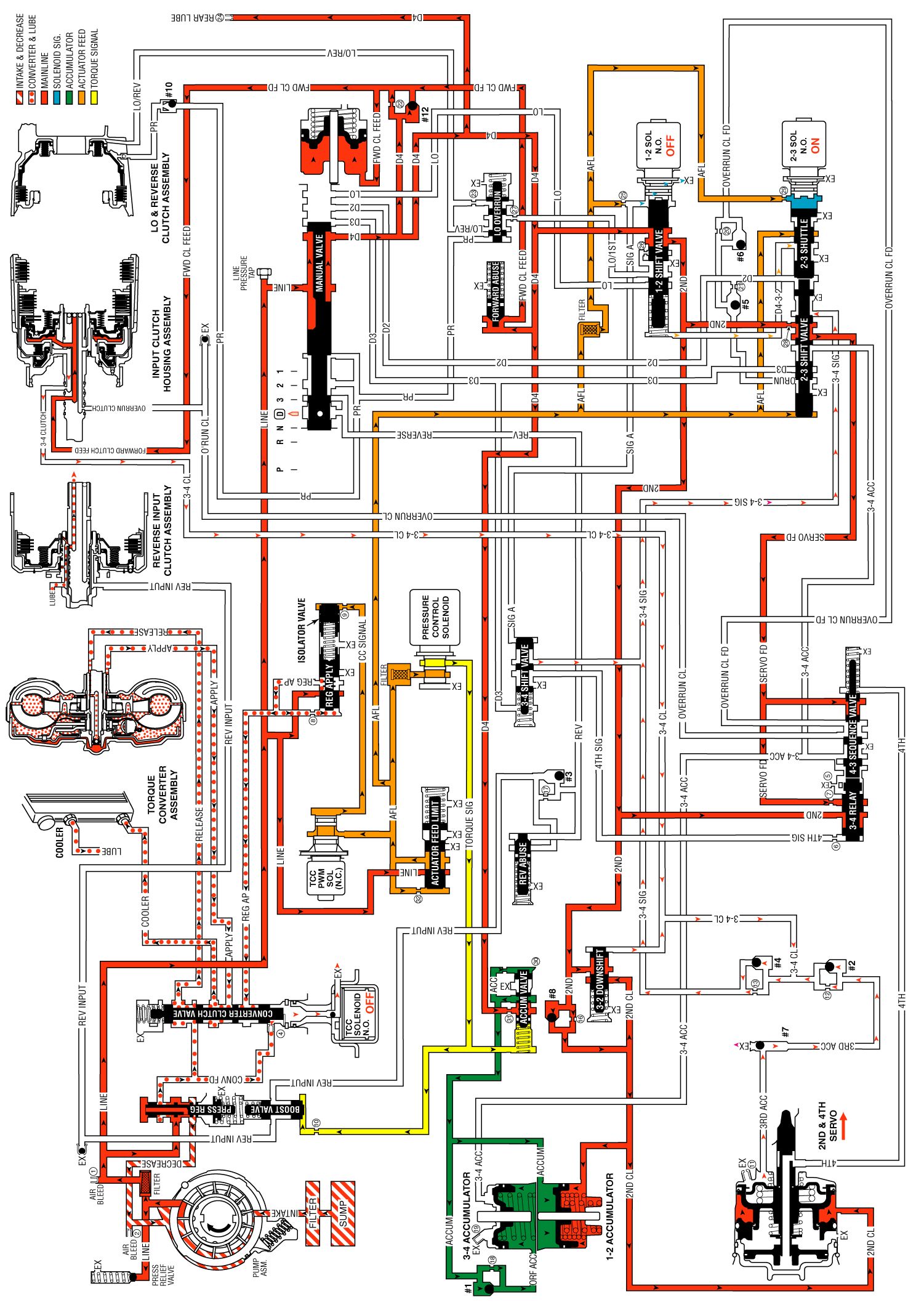

Reverse

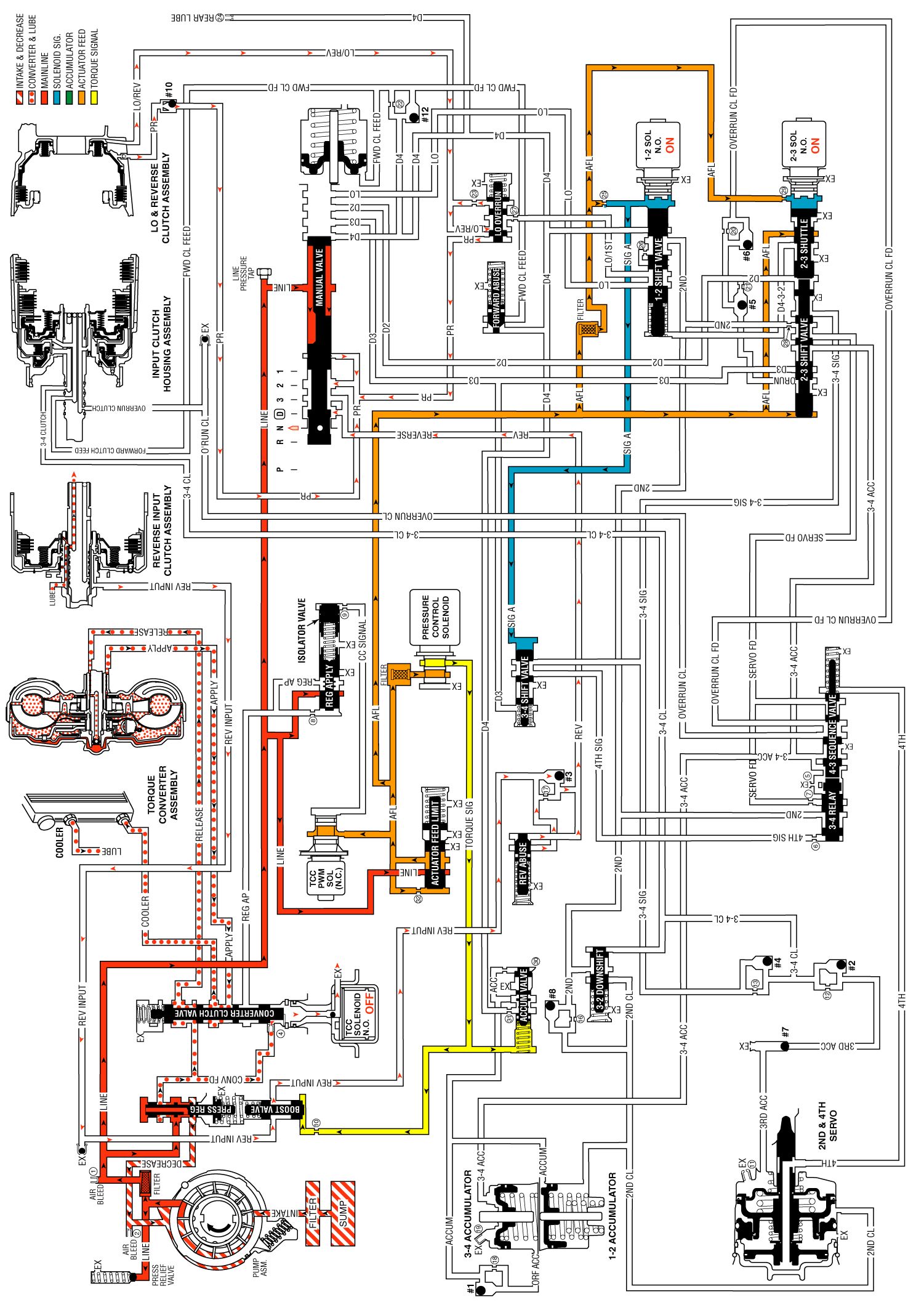

Neutral - Engine Running

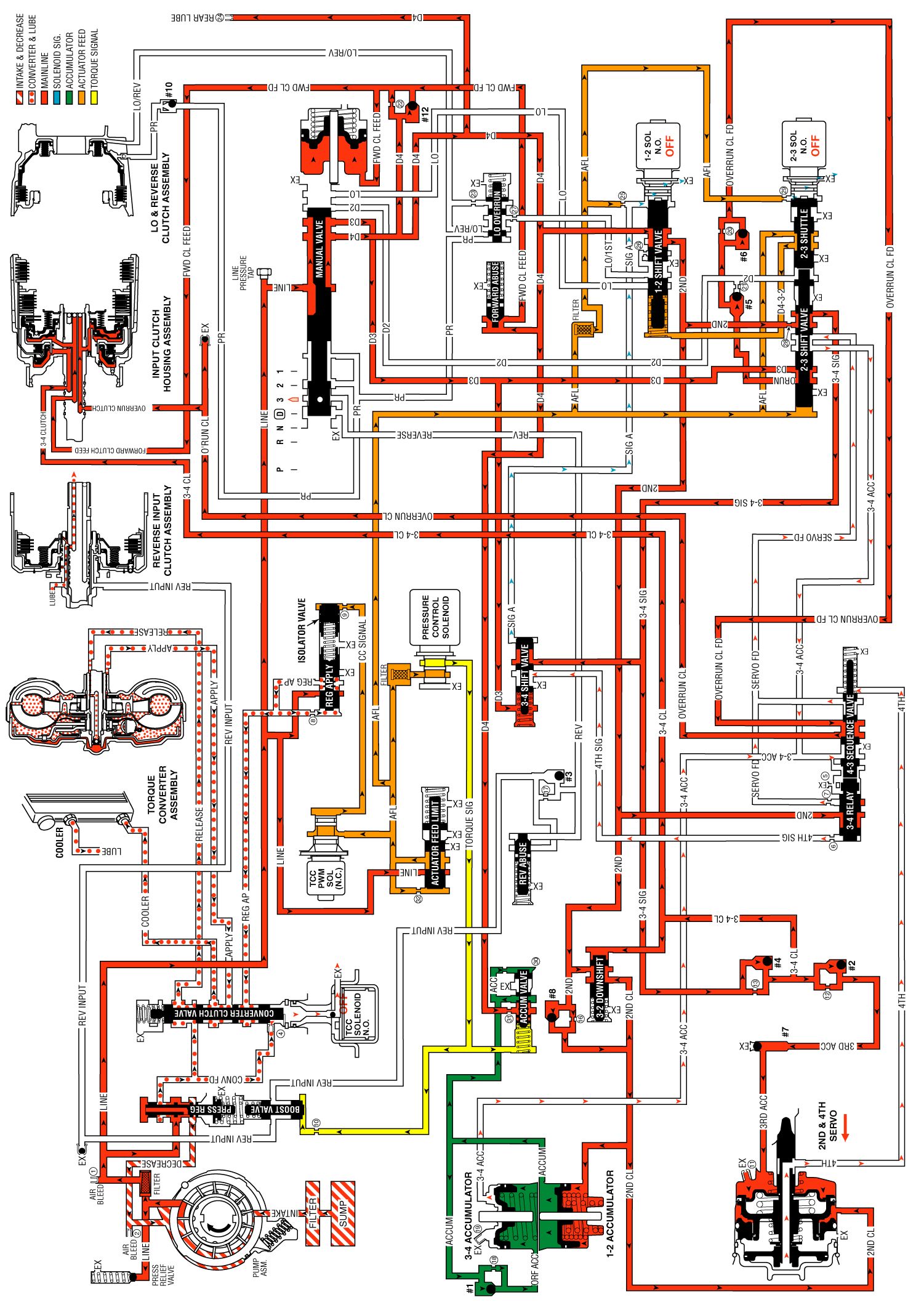

Neutral - Engine Running

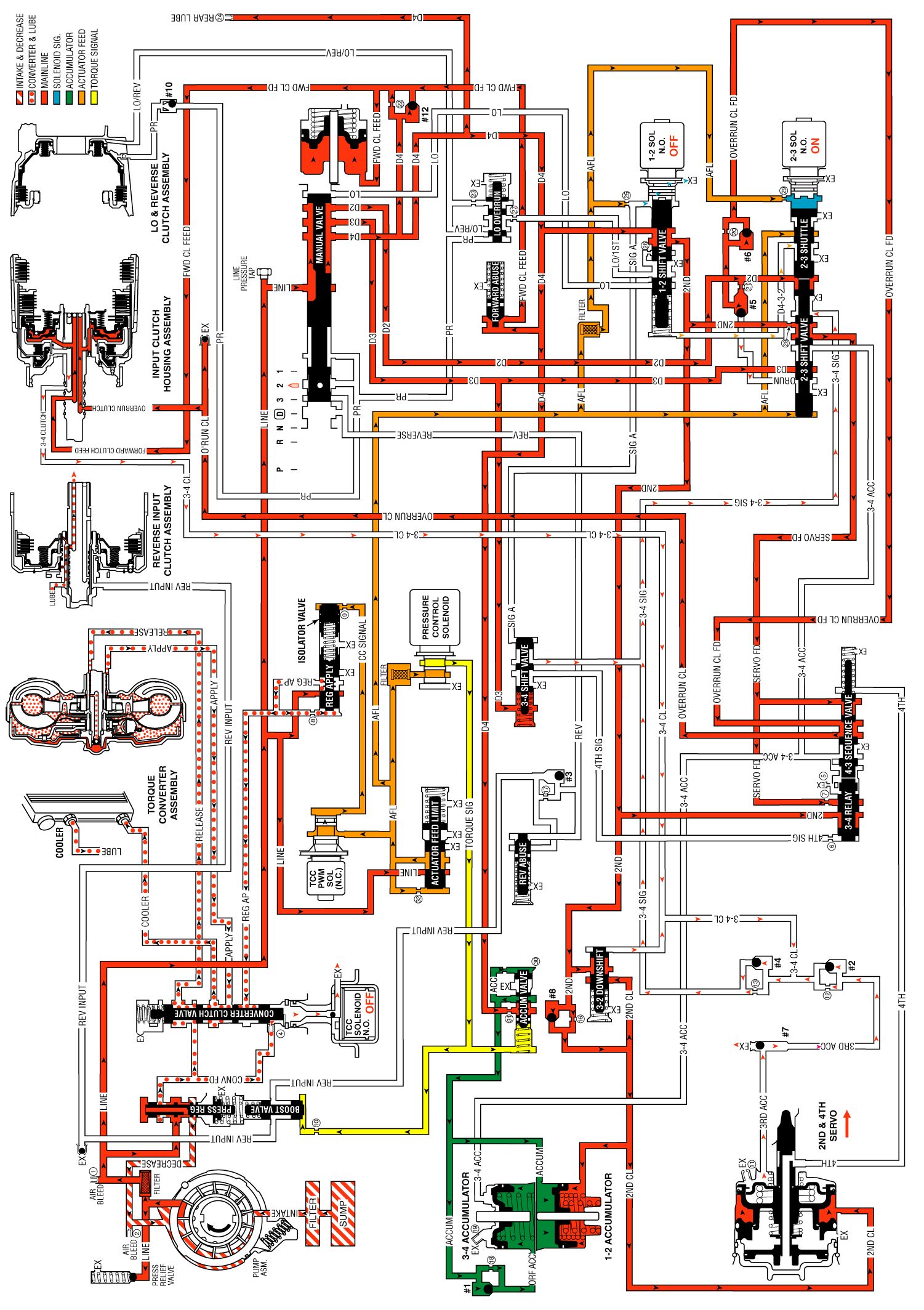

Neutral - Engine Running

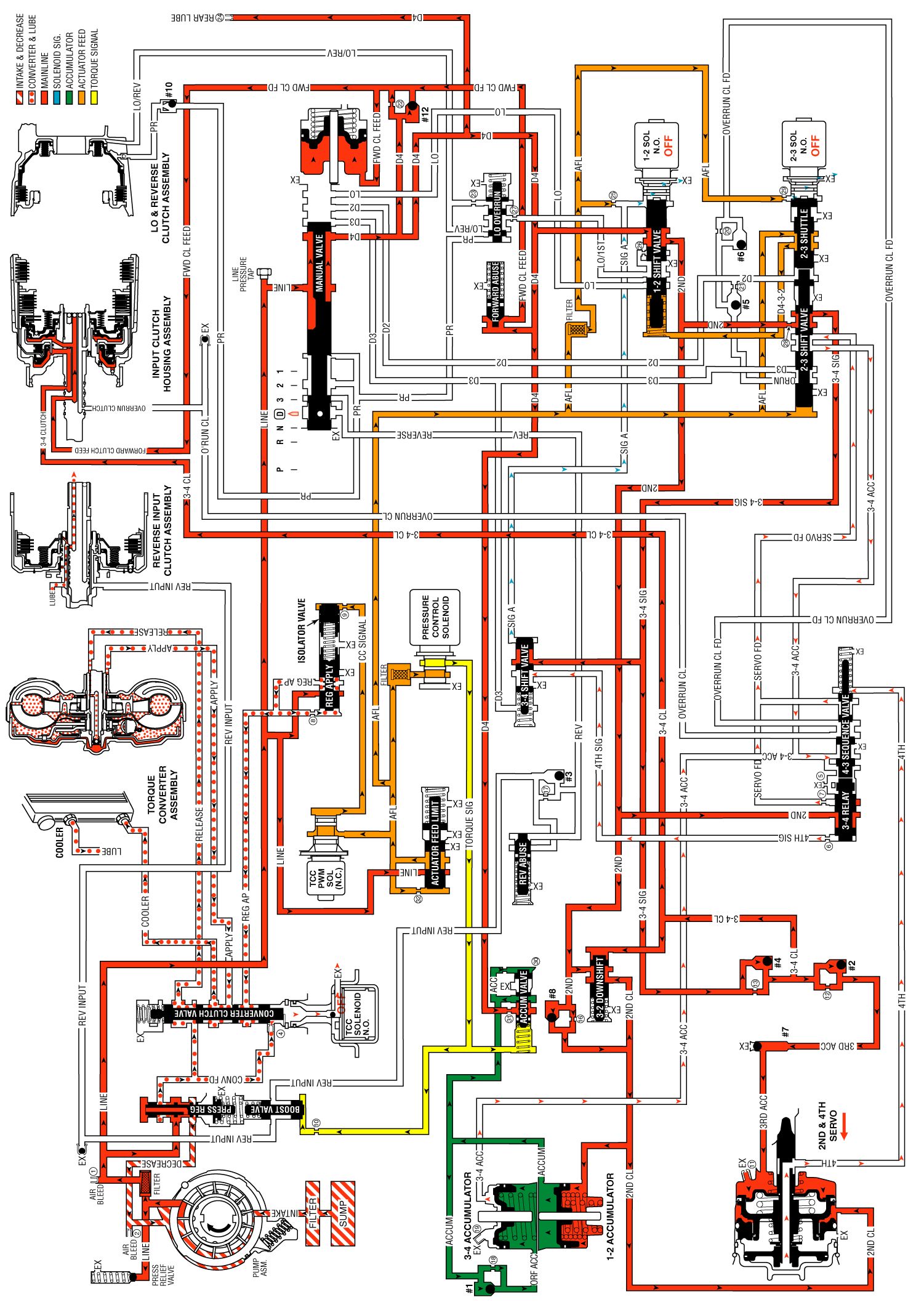

Neutral - Engine Running

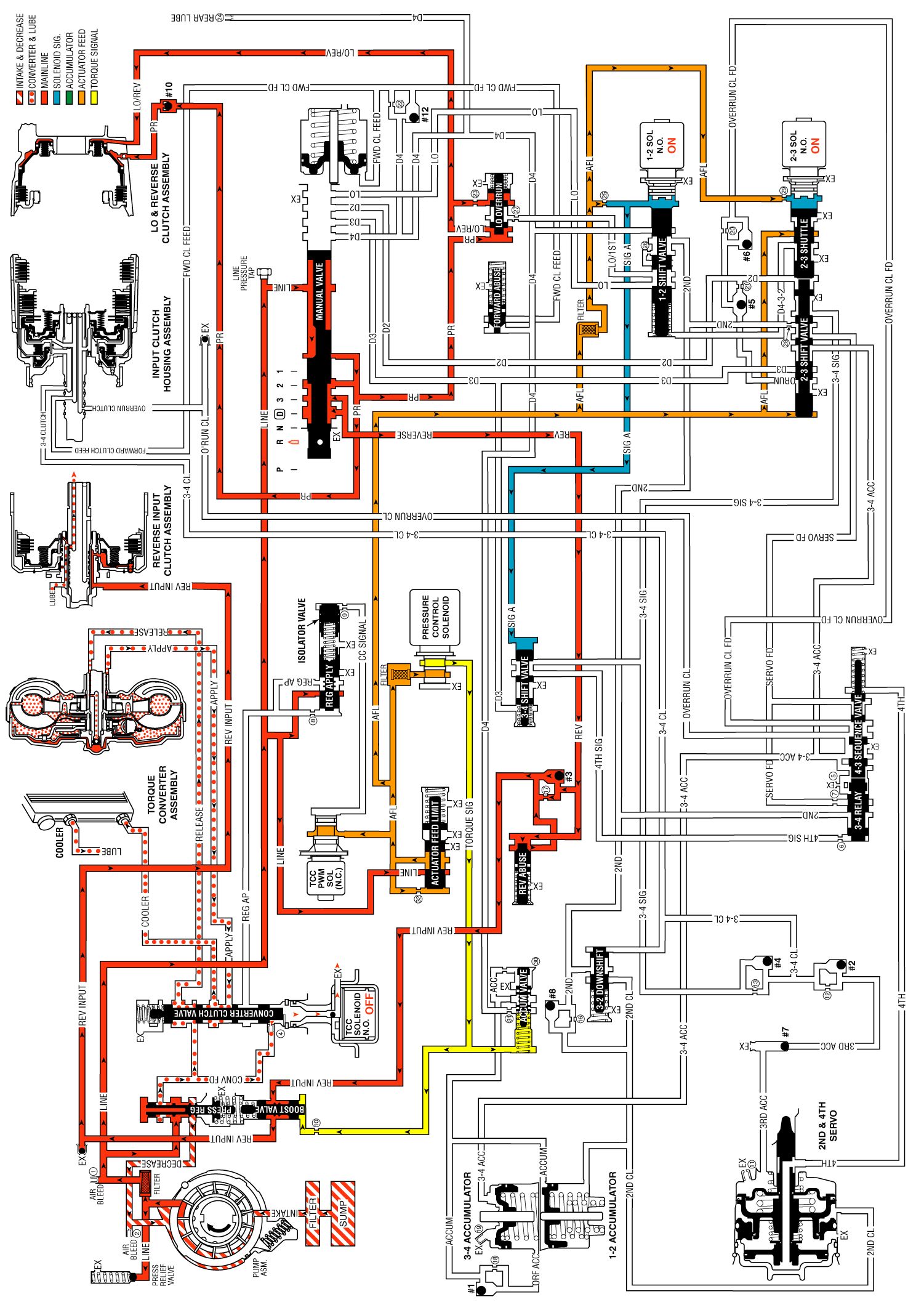

Neutral - Engine Running

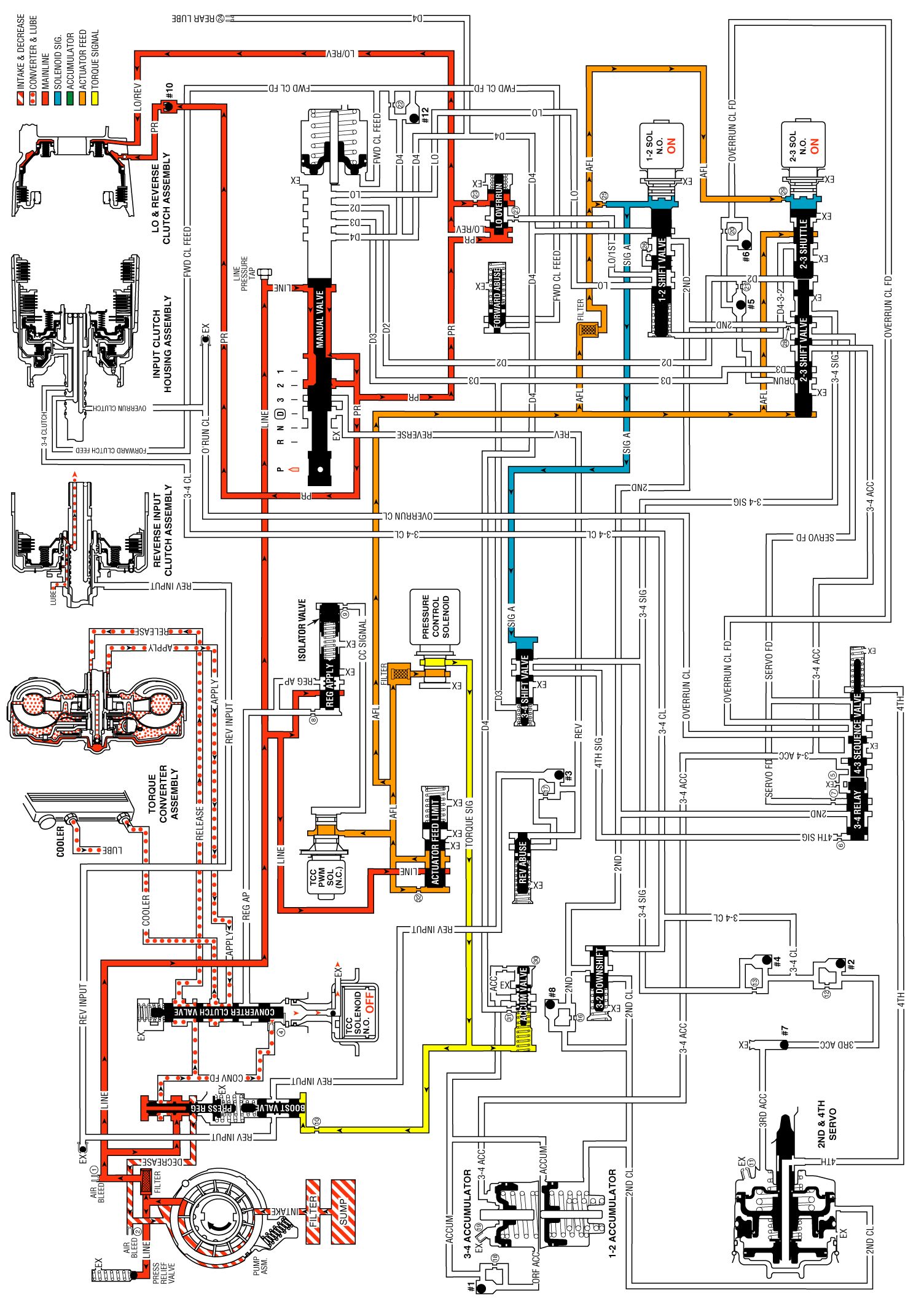

Overdrive Range, 4-3 Downshift





Overdrive Range, 3-2 Downshift





Manual Third Gear





Manual Second Gear





Manual First Gear
