Wiper and Washer Systems




Wiper/Washer Schematics

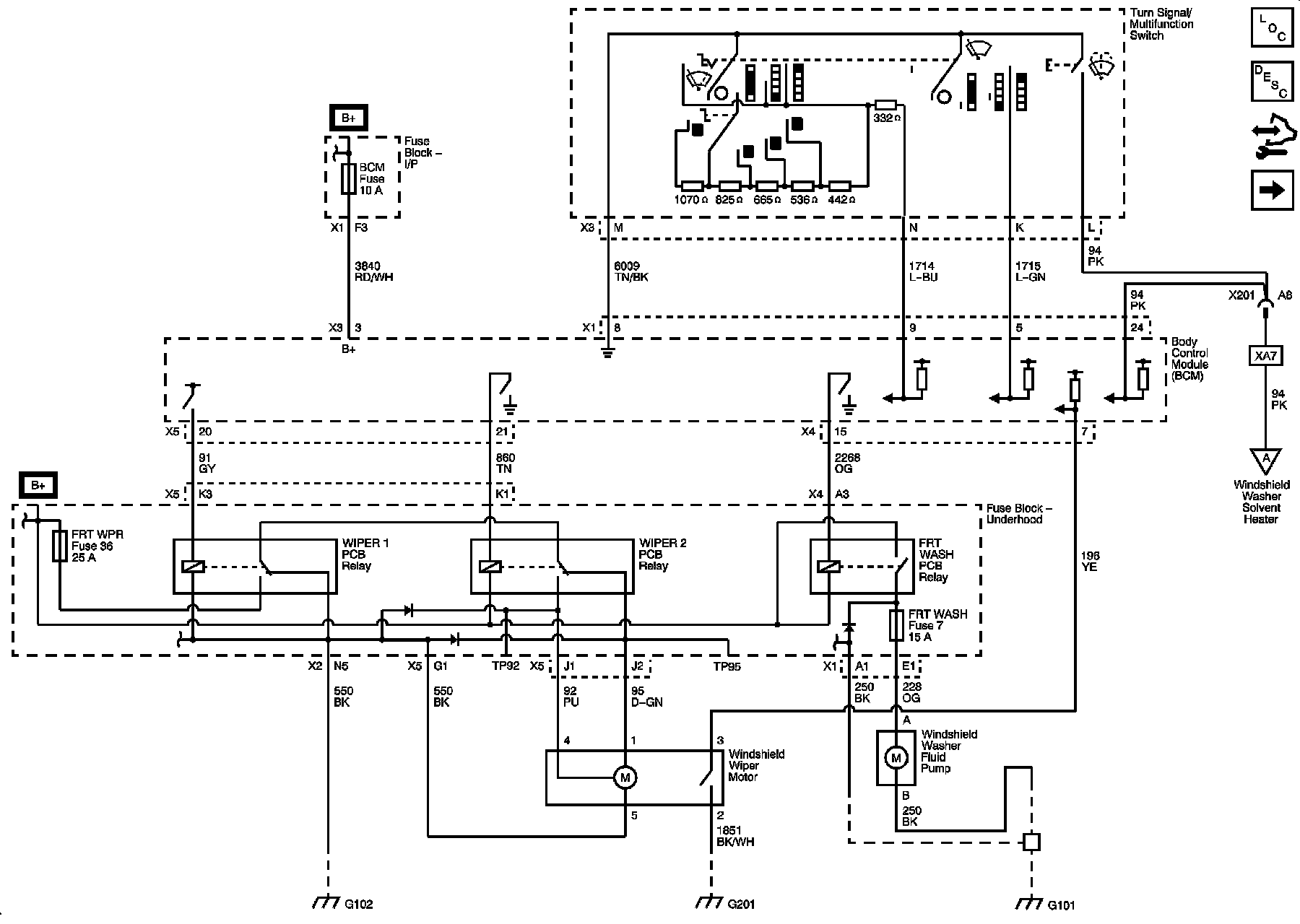

Front





Rear





Outside Moisture Sensor





Heated Washer System
