6L50/6L80/6L90 - Automatic Transmission




Automatic Transmission Controls Schematics

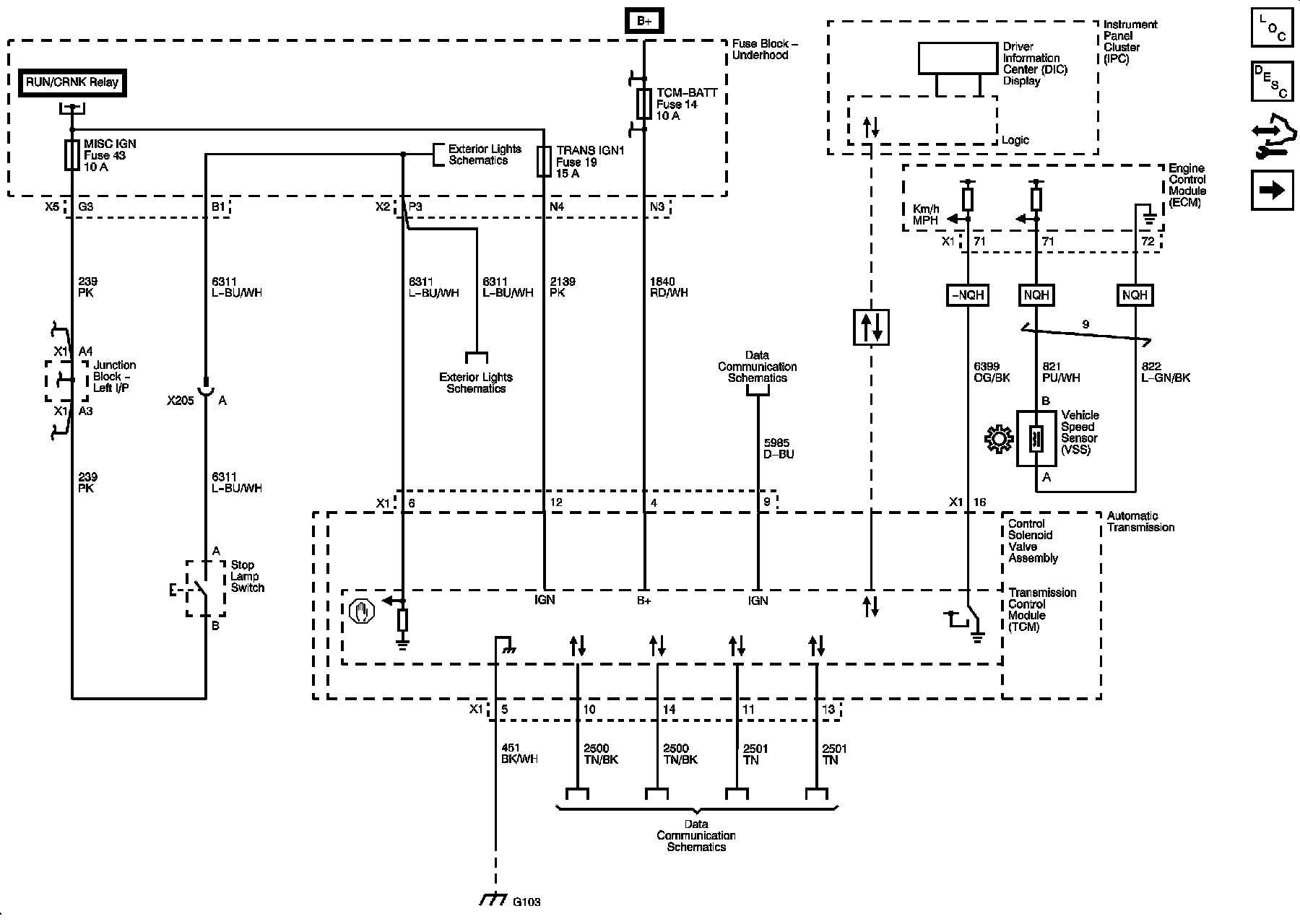

Module Power, Ground, Serial Data and Stop Lamp Switch

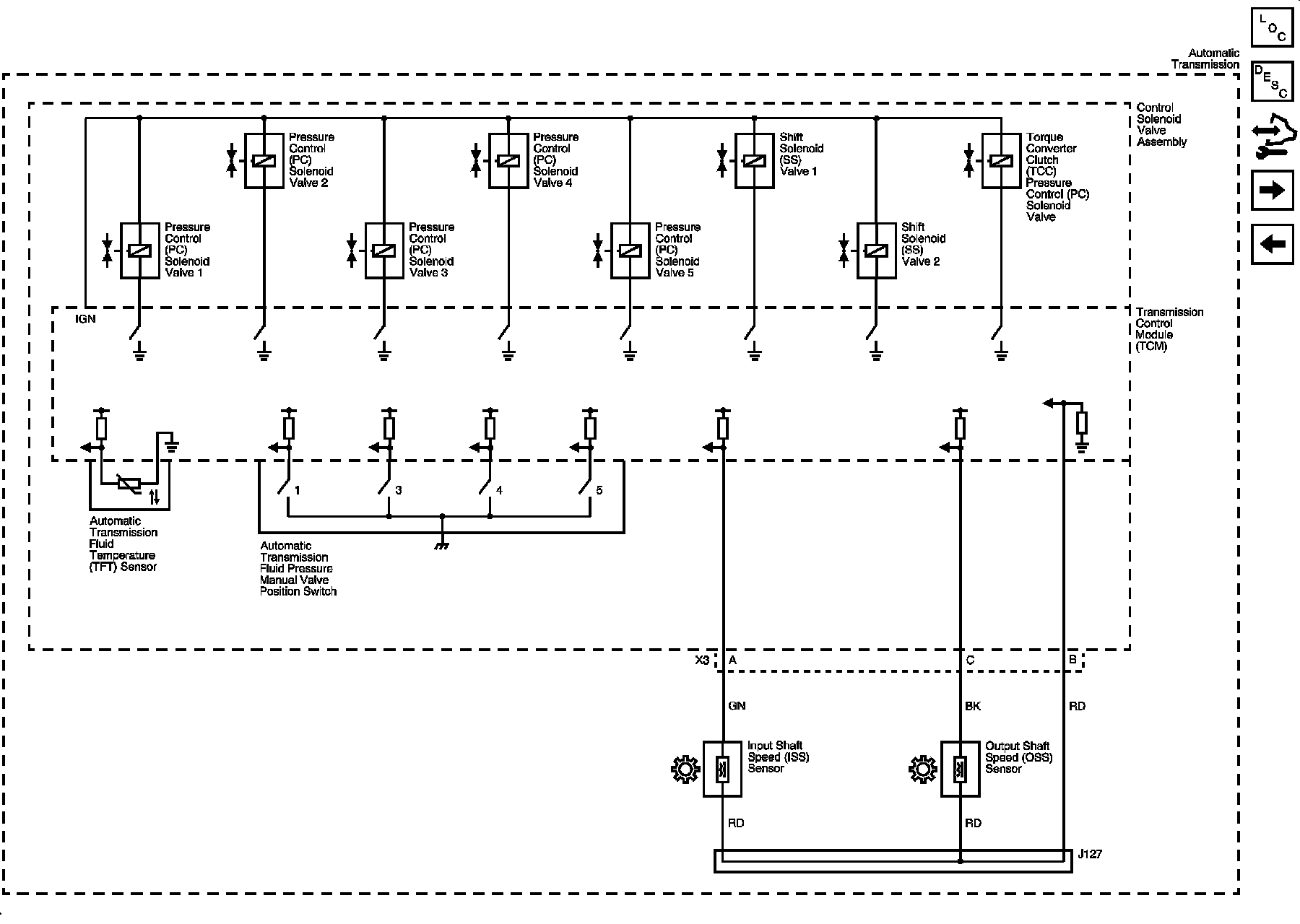

Pressure Controls - 1 of 2 and Shift Controls





Transmission Range Signals and Driver Shift Request
