4L60-E/4L65-E/4L70-E Automatic Transmission
Automatic Transmission Controls Schematics
Module Power, Ground, and Serial Data
Shift Controls
Pressure and Temperature Controls

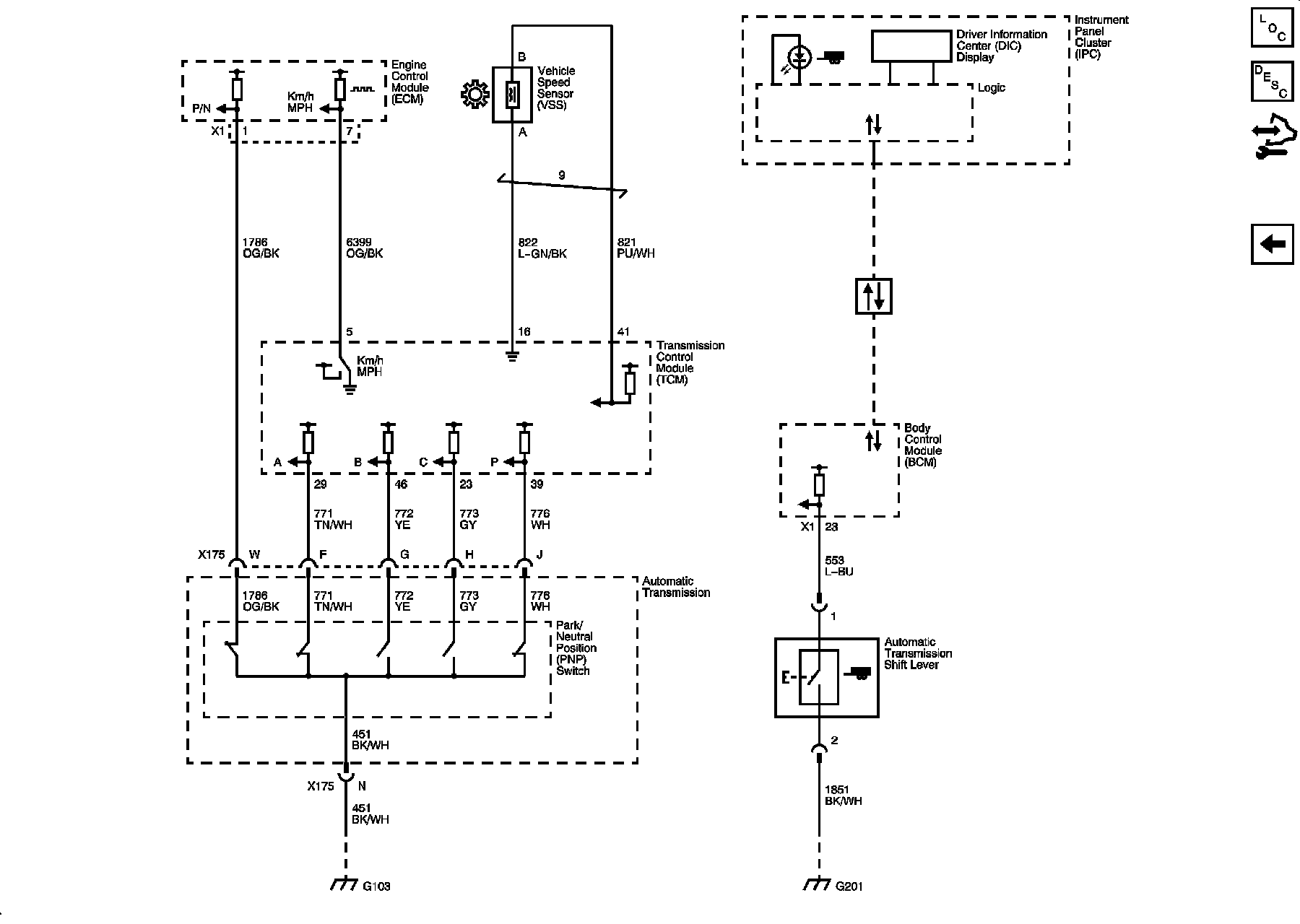

PNP Signals, VSS Signals, and Tow/Haul Signal
Automatic Transmission Controls Schematics
Module Power, Ground, and Serial Data
Shift Controls
Pressure and Temperature Controls
PNP Signals, VSS Signals, and Tow/Haul Signal
