Electronic Suspension Control




Electronic Suspension Control Schematics

Module Power, Ground, and Serial Data

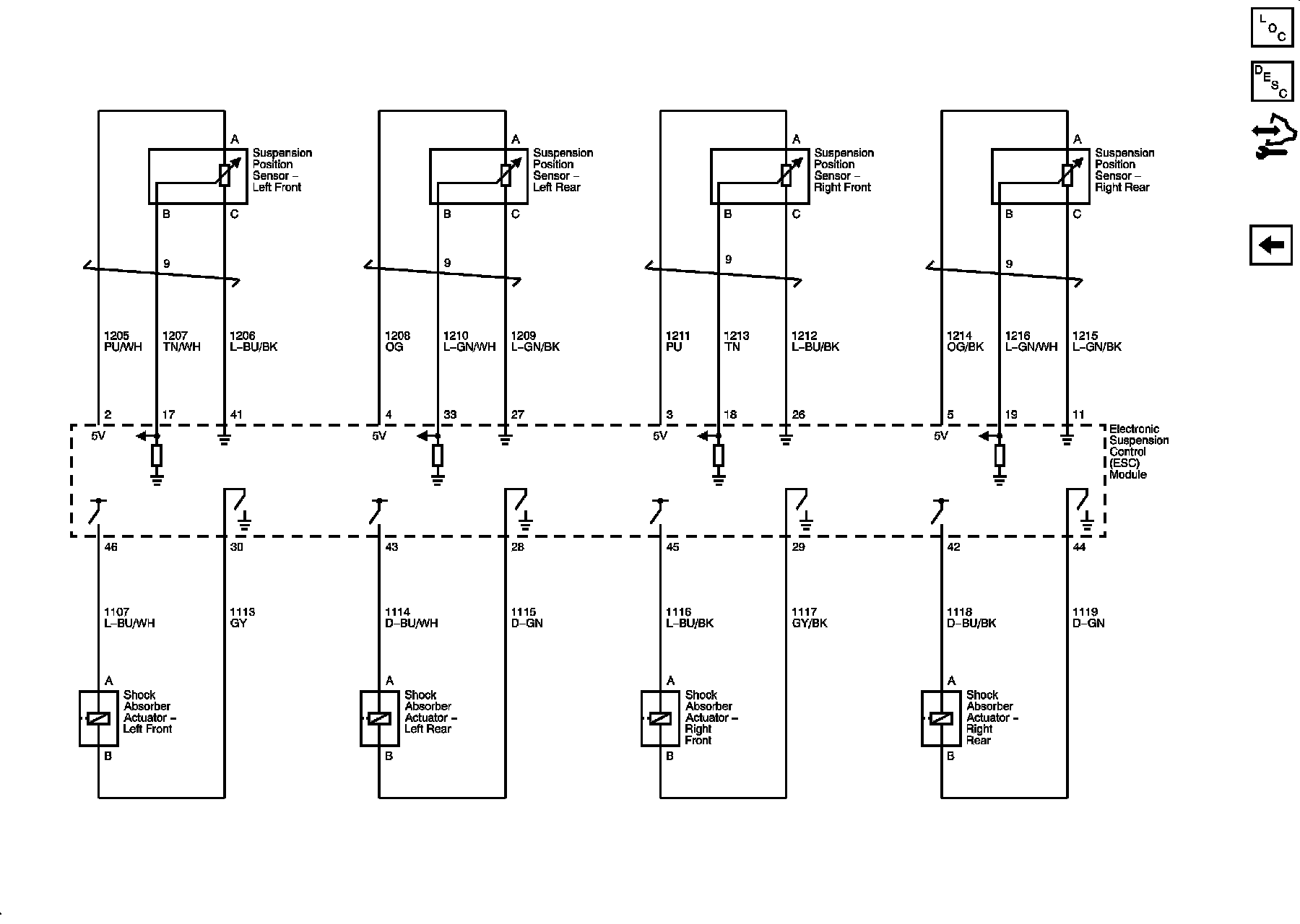

Position Sensors and Solenoids
