Home >> Cadillac >> 2009 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Wheel

Steering Wheel

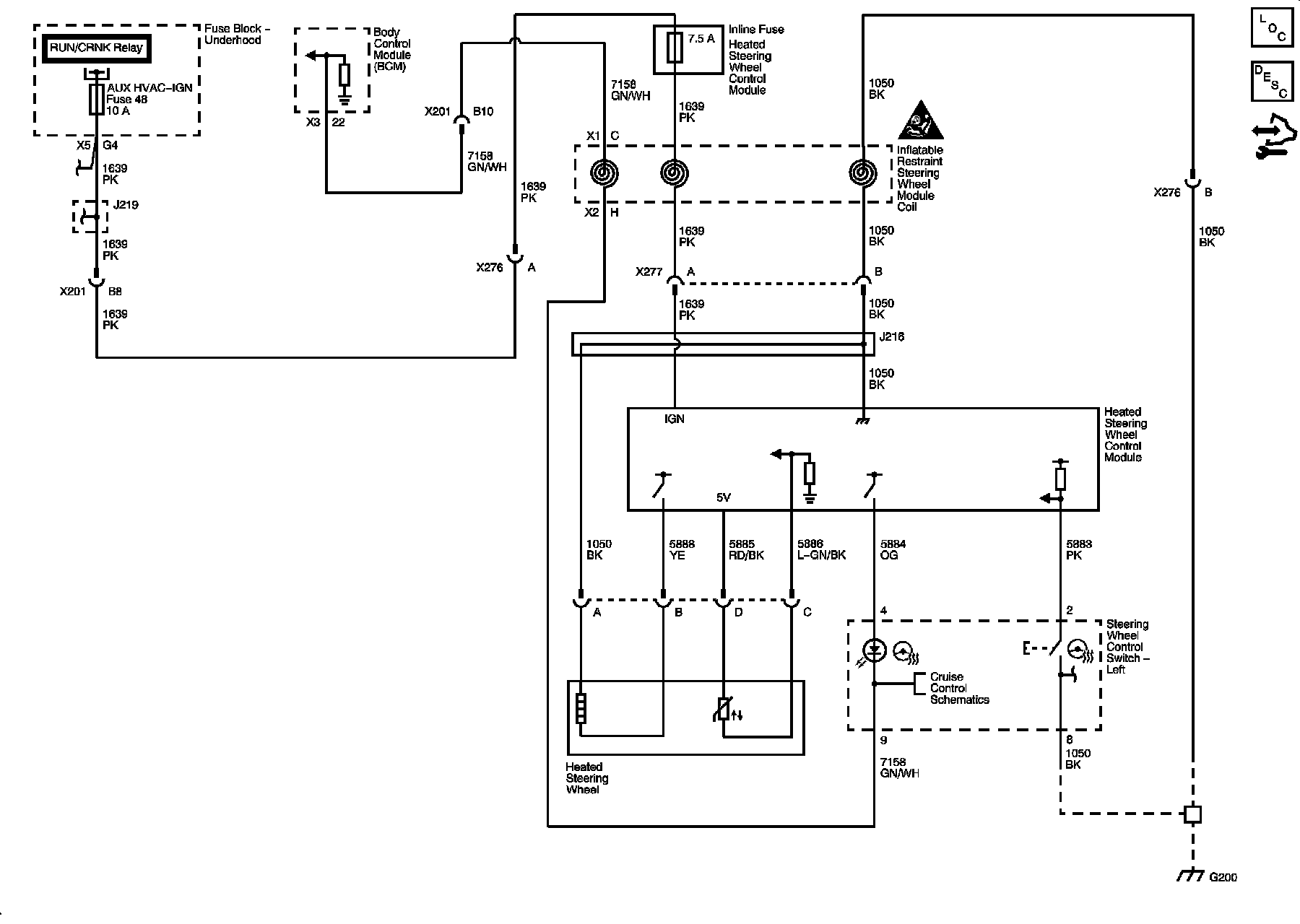

Steering Wheel Schematics (Steering Wheel Schematics)

Heated Steering Wheel (KA9)
