Home >> Cadillac >> 2009 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Column

Steering Column

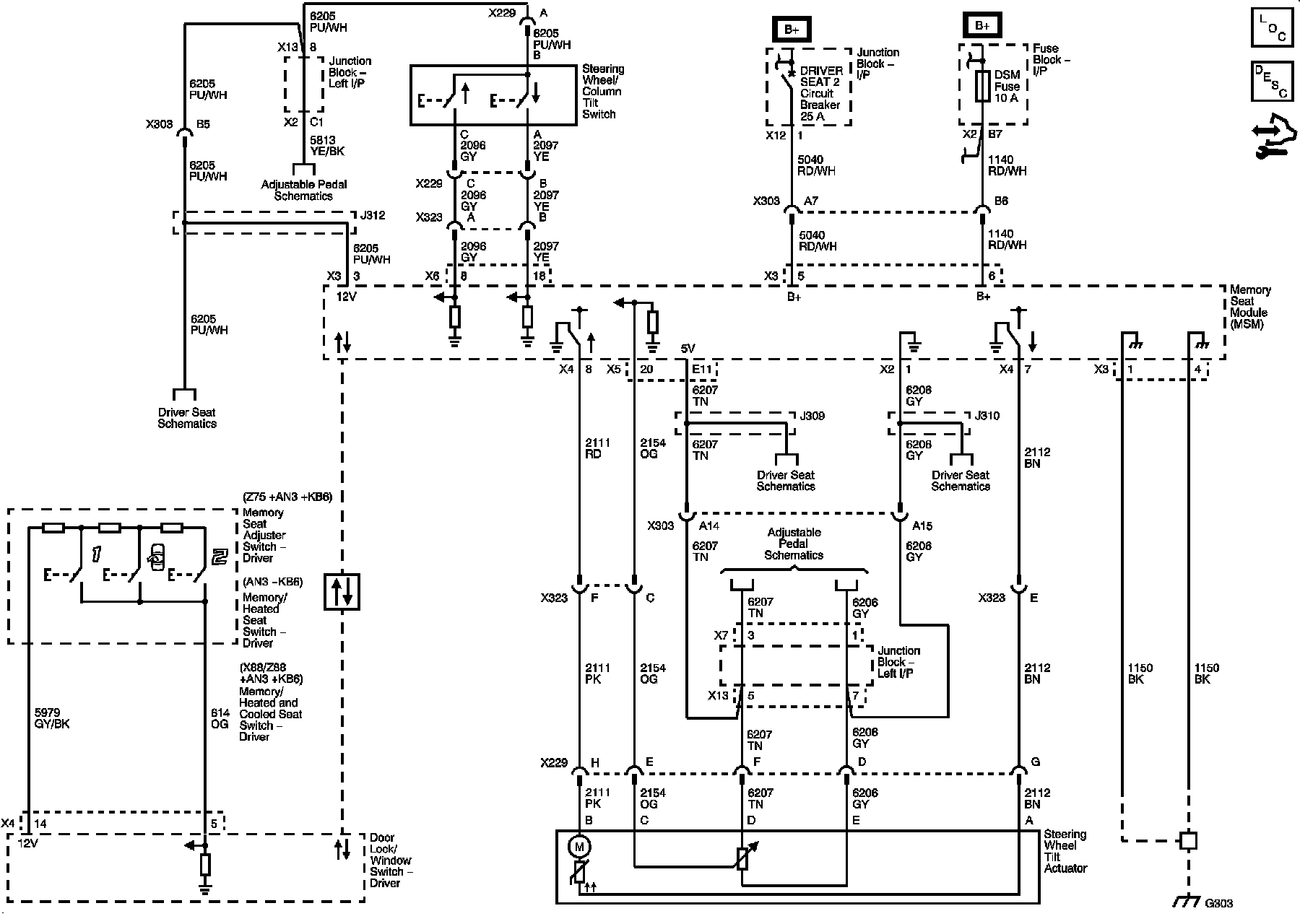

Steering Wheel Schematics (Tilt/Telescoping Steering Column)

Heated/Cooled Seat - Passenger - X88 or Z88 with KB6
