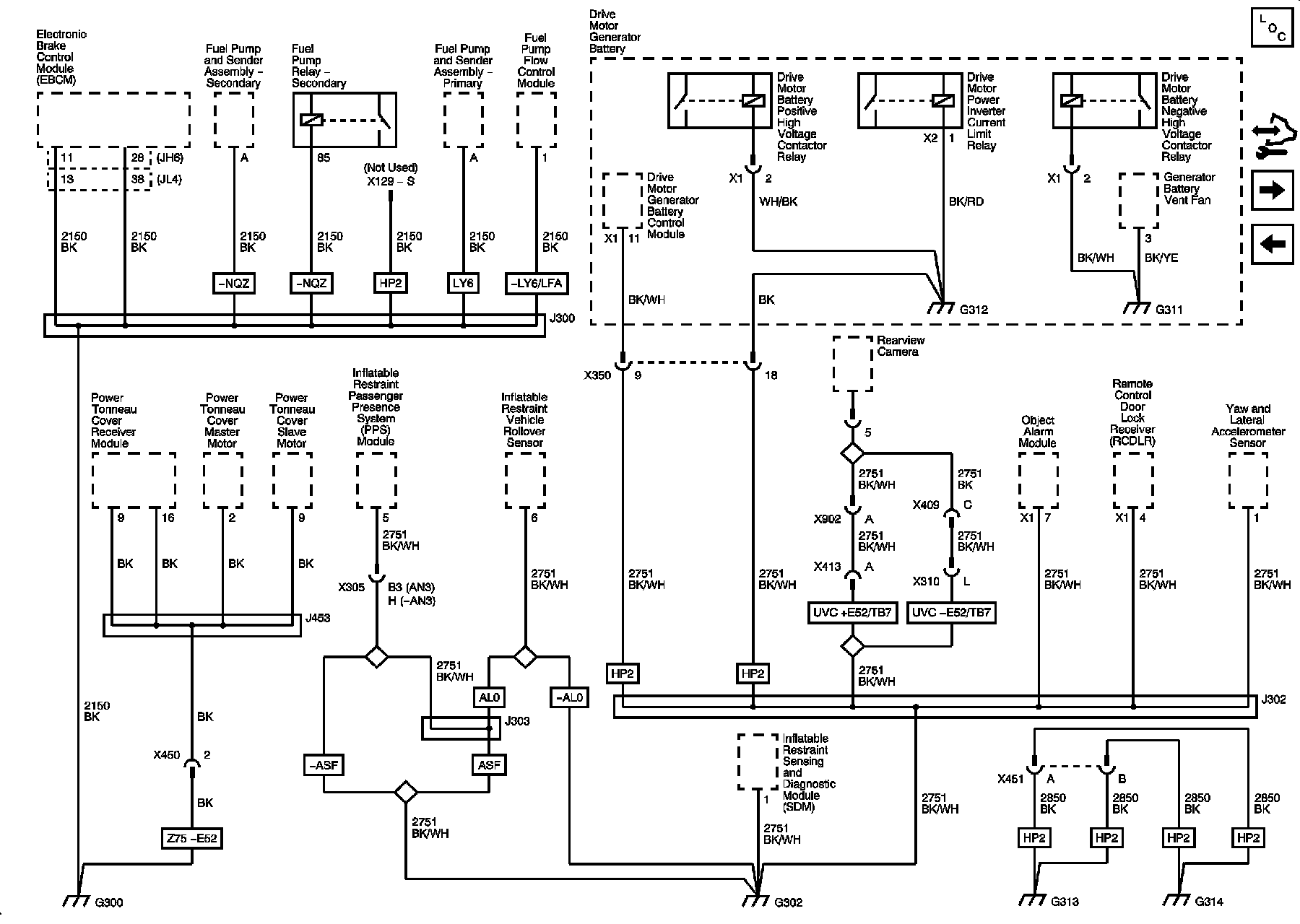

Home >> Cadillac >> 2009 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Diagrams >> G300
