Home
>>
Cadillac
>>
2009
>>
Escalade AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems
Seat Belt

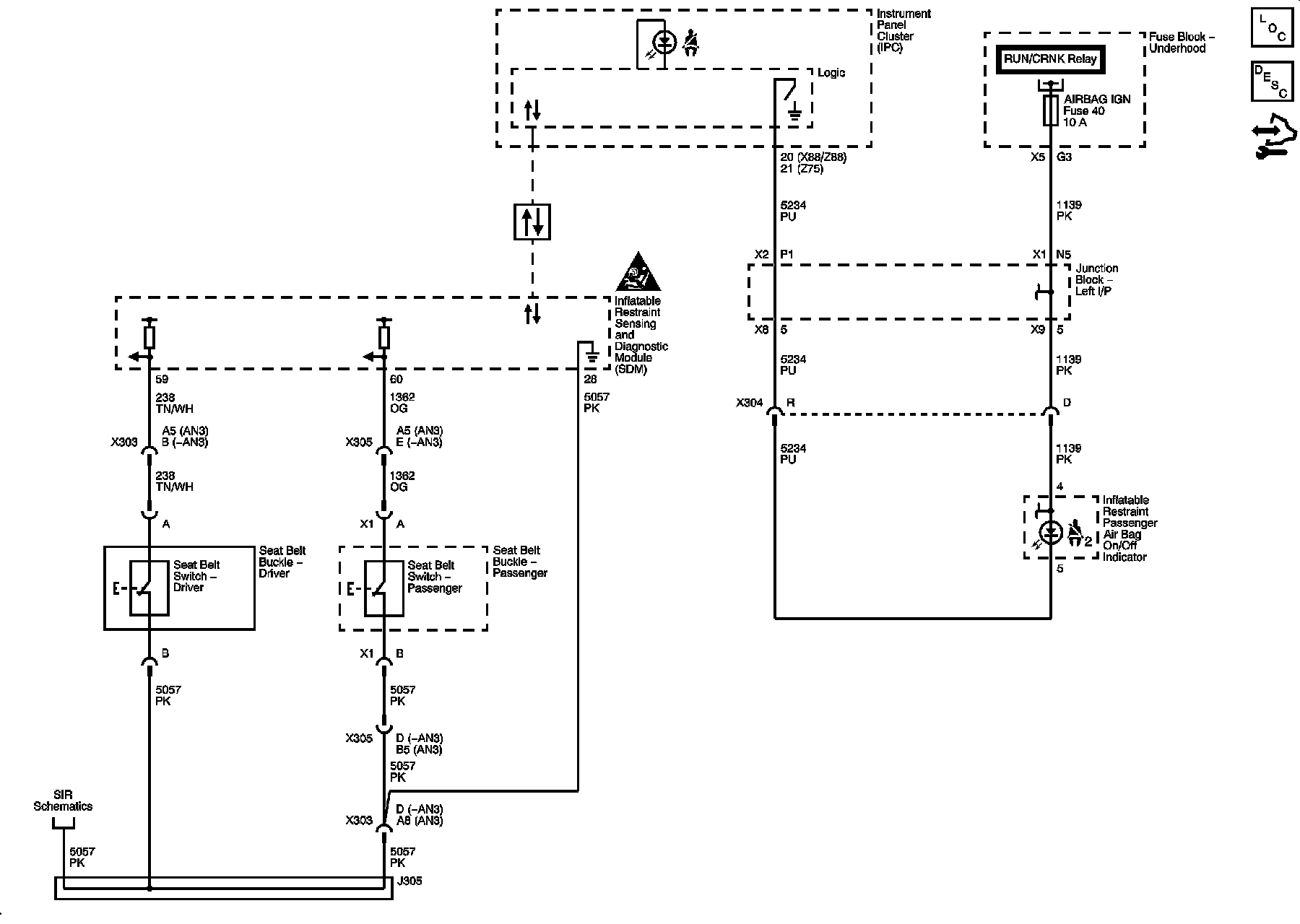

Schematics
