System Diagram
>>
Liftgate Schematics
Liftgate Schematics
Liftgate Schematics

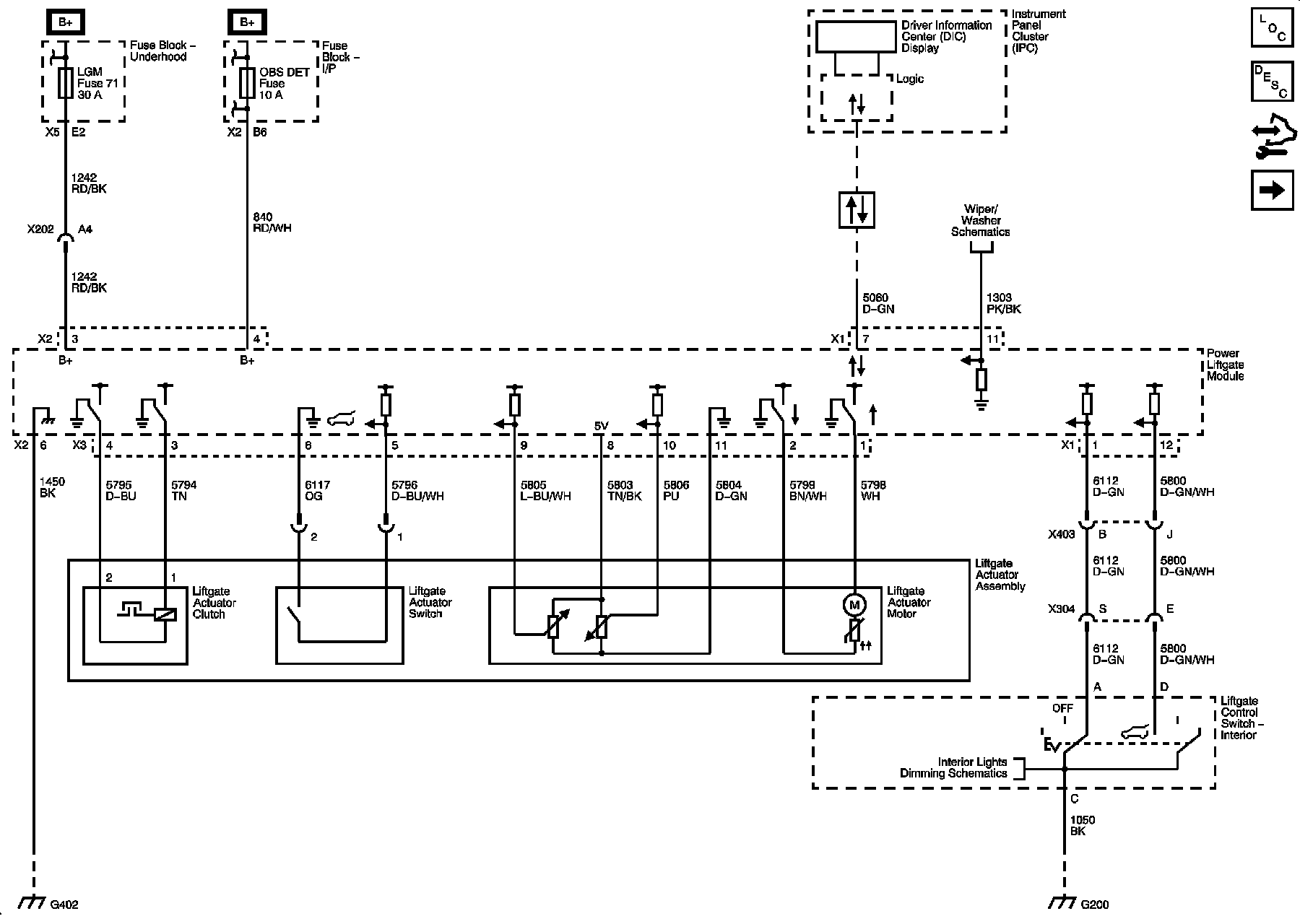

Module Power, Ground, Serial Data, and Front Switch (E61)

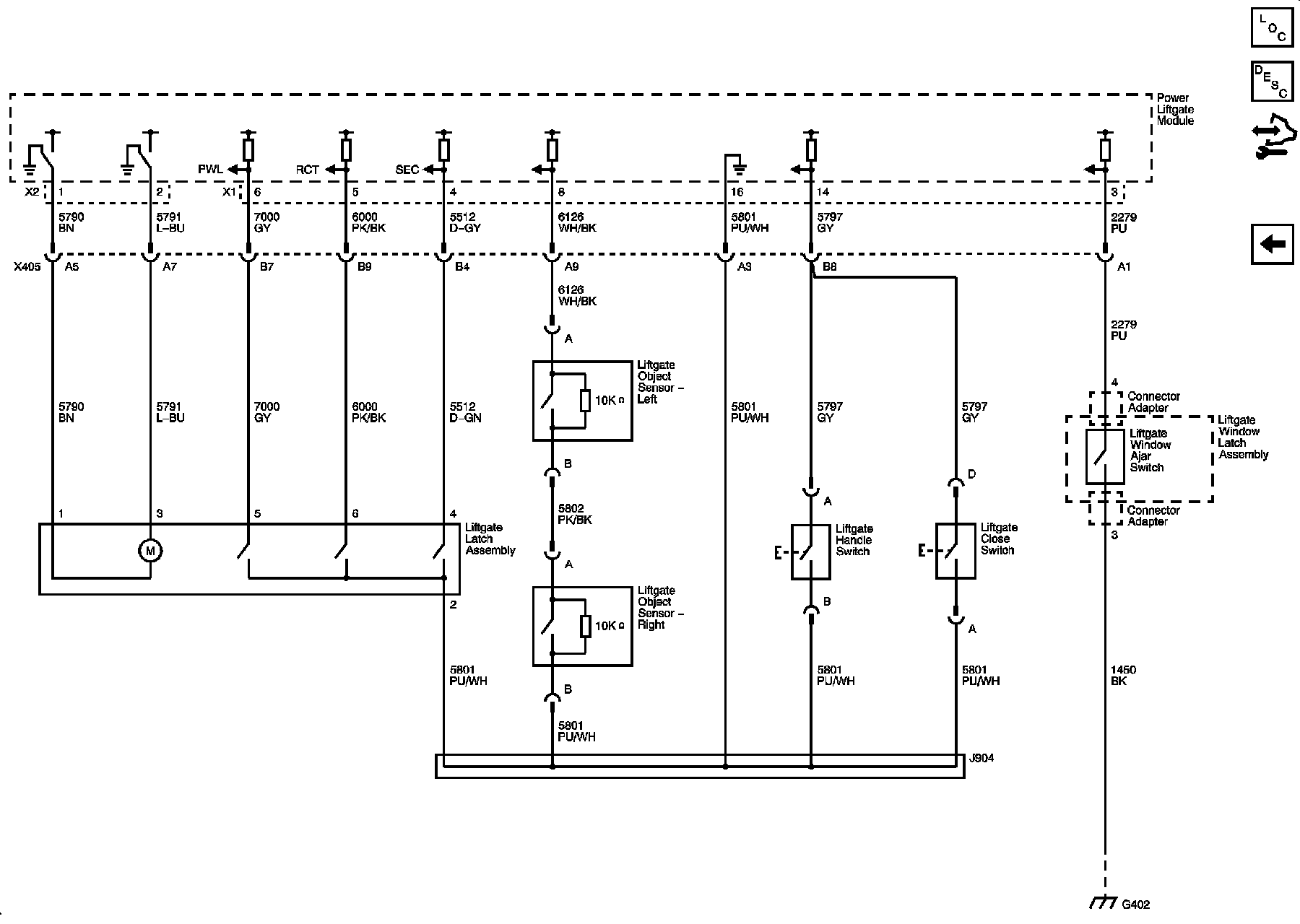

Liftgate Motor Controls (E61)
