Headlights/Daytime Running Lights (DRL) Schematic 4
Headlights/Daytime Running Lights (DRL) Schematic 4
Headlights/Daytime Running Lights (DRL) Schematics

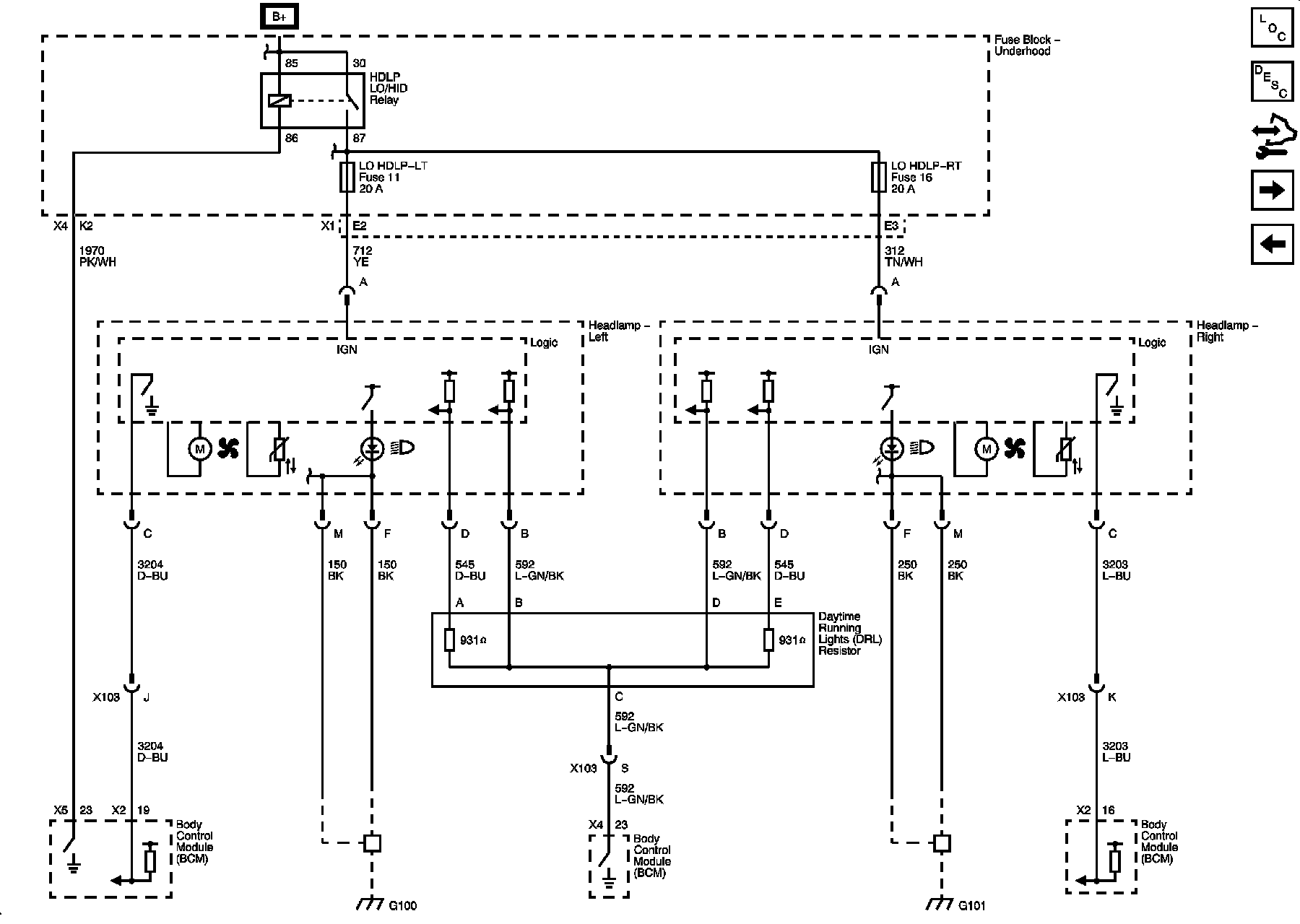

Low Beams, Daytime Running Lamps and Outage Detection - Z75 with T4Q
