Headlights/Daytime Running Lights (DRL) Schematic 2




Headlights/Daytime Running Lights (DRL) Schematics

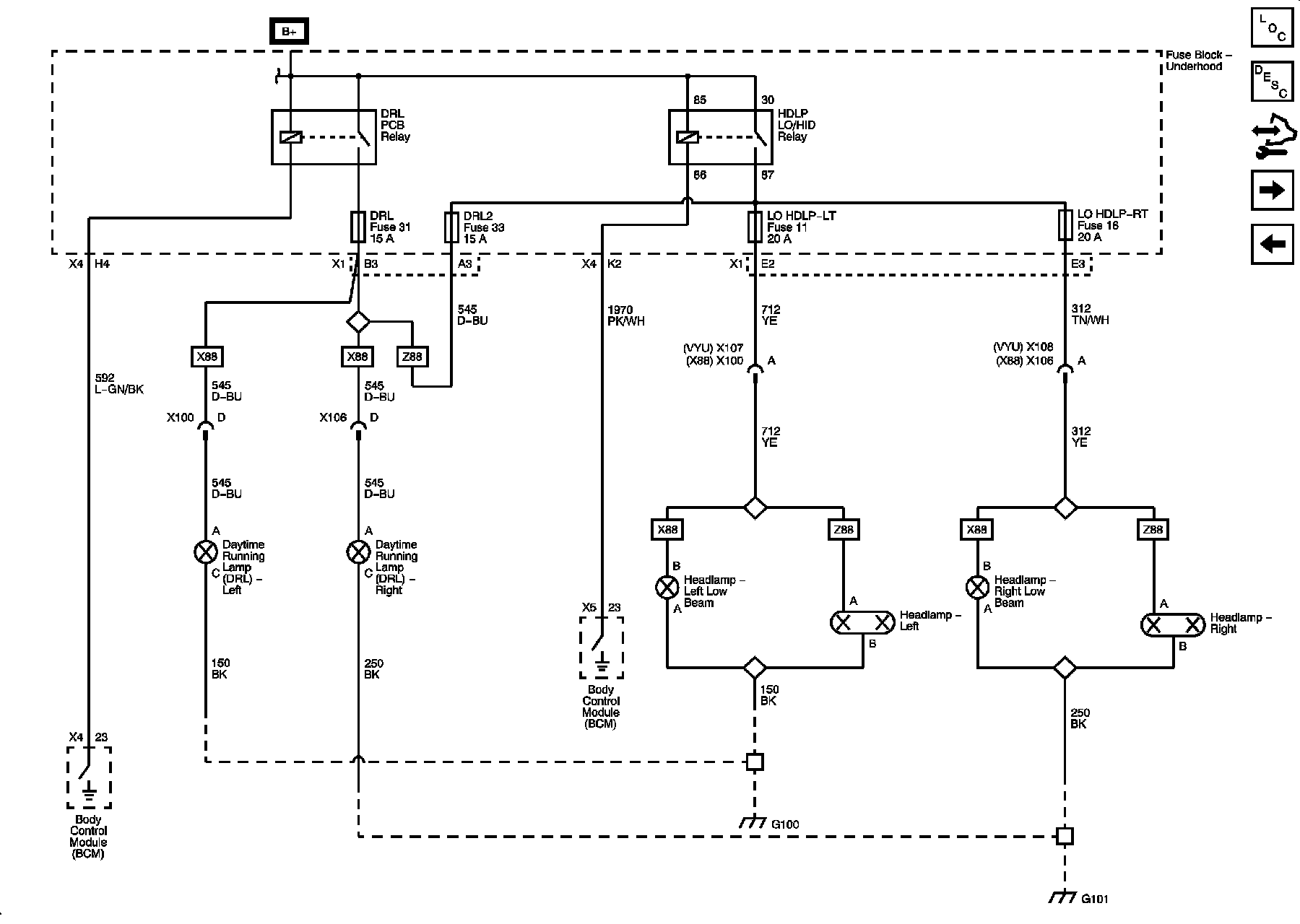

Low Beam and Daytime Running Lamps - X88/Z88
