HVAC - Automatic




HVAC Schematics

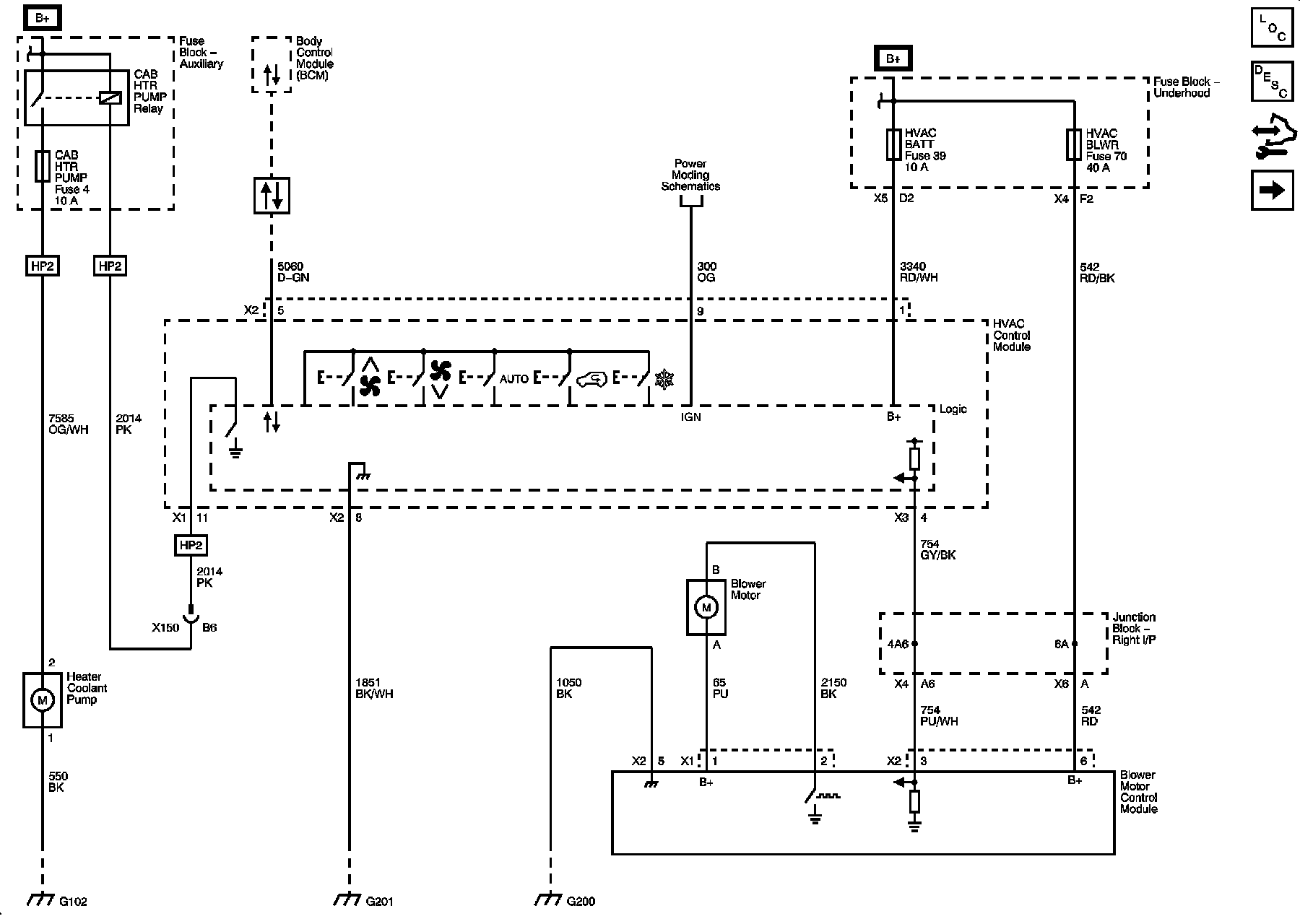

Module Power, Ground, Serial Data, Front Blower Controls and Hybrid Cabin Heating

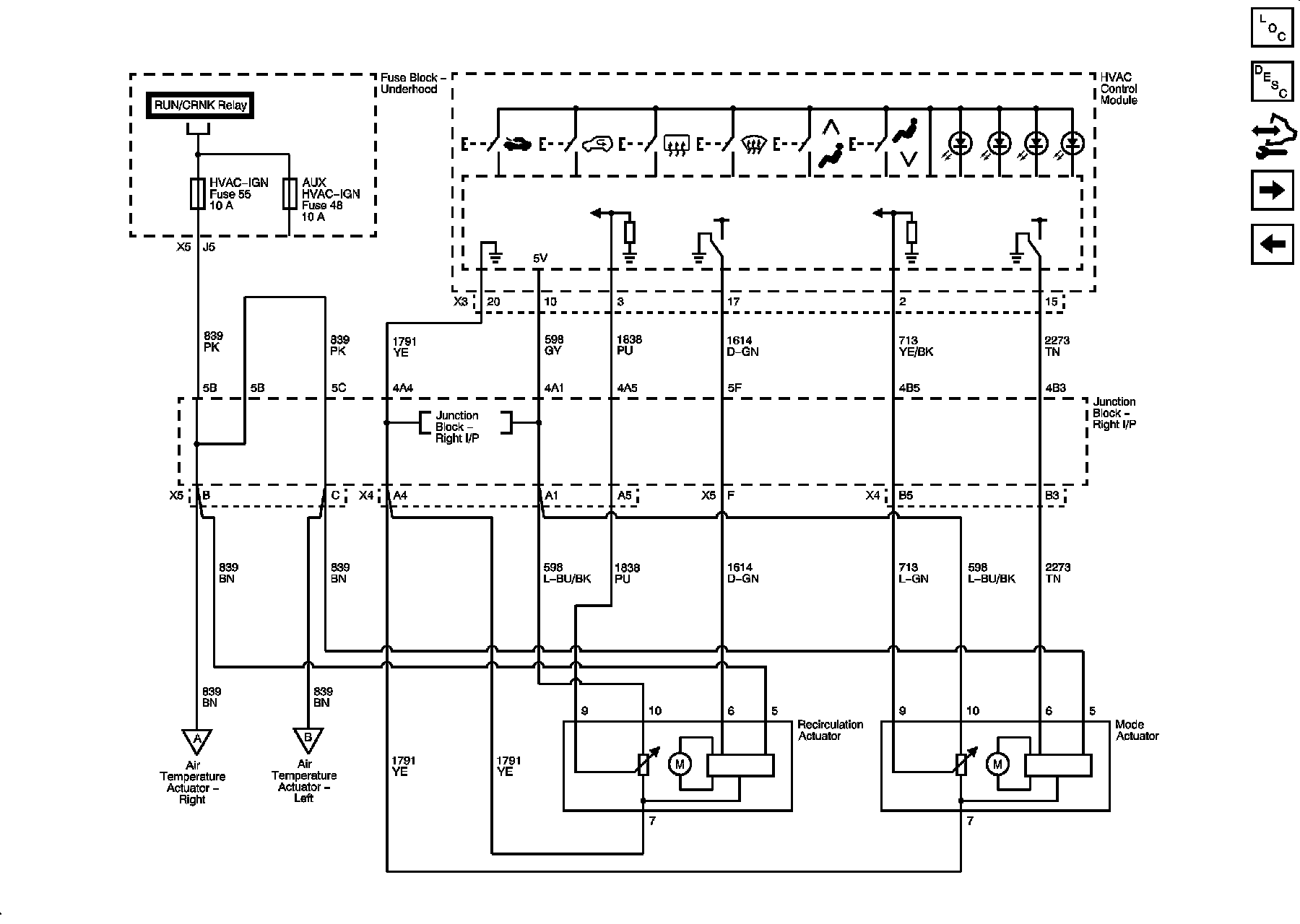

Front Mode Controls

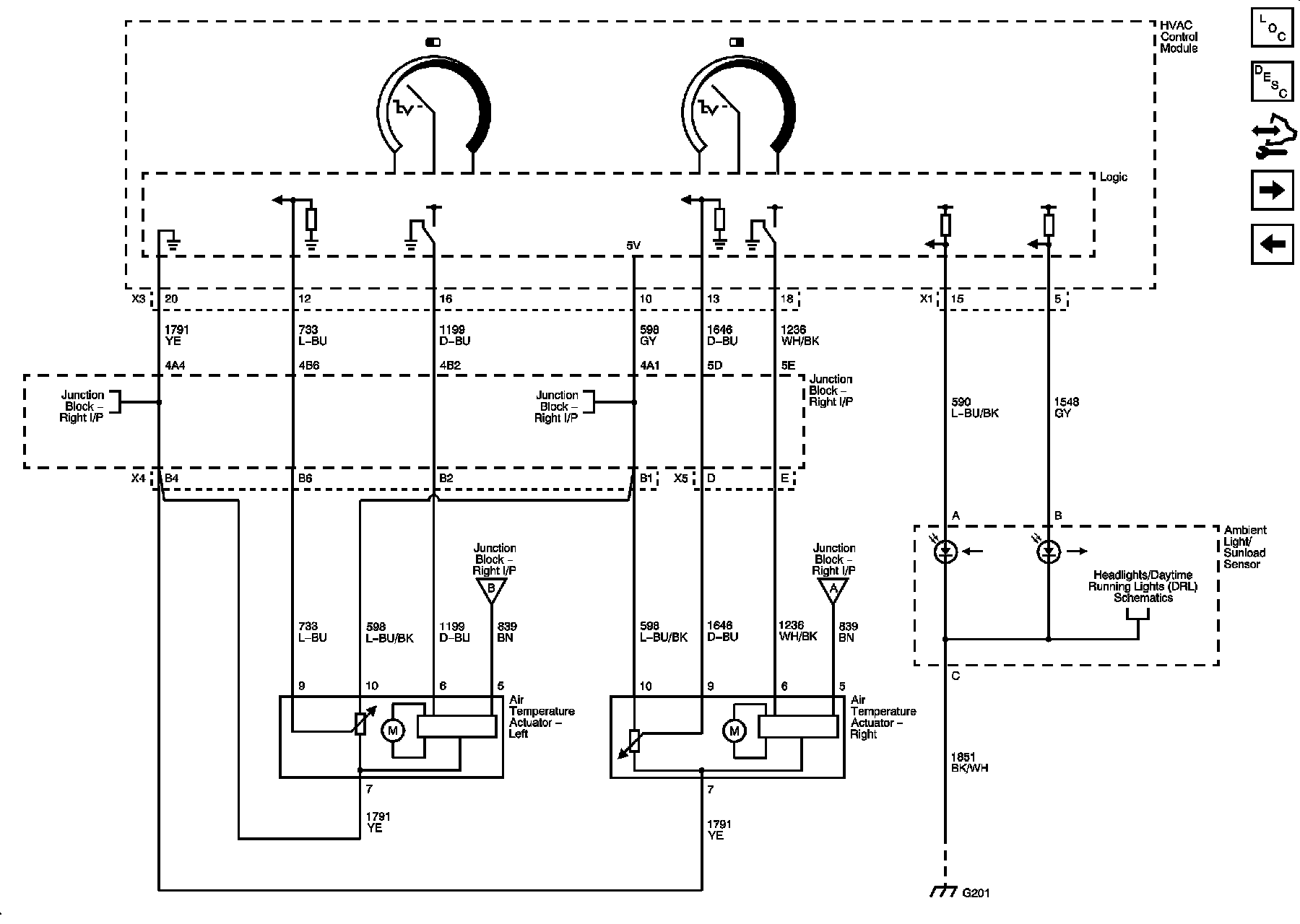

Front Temperature Controls

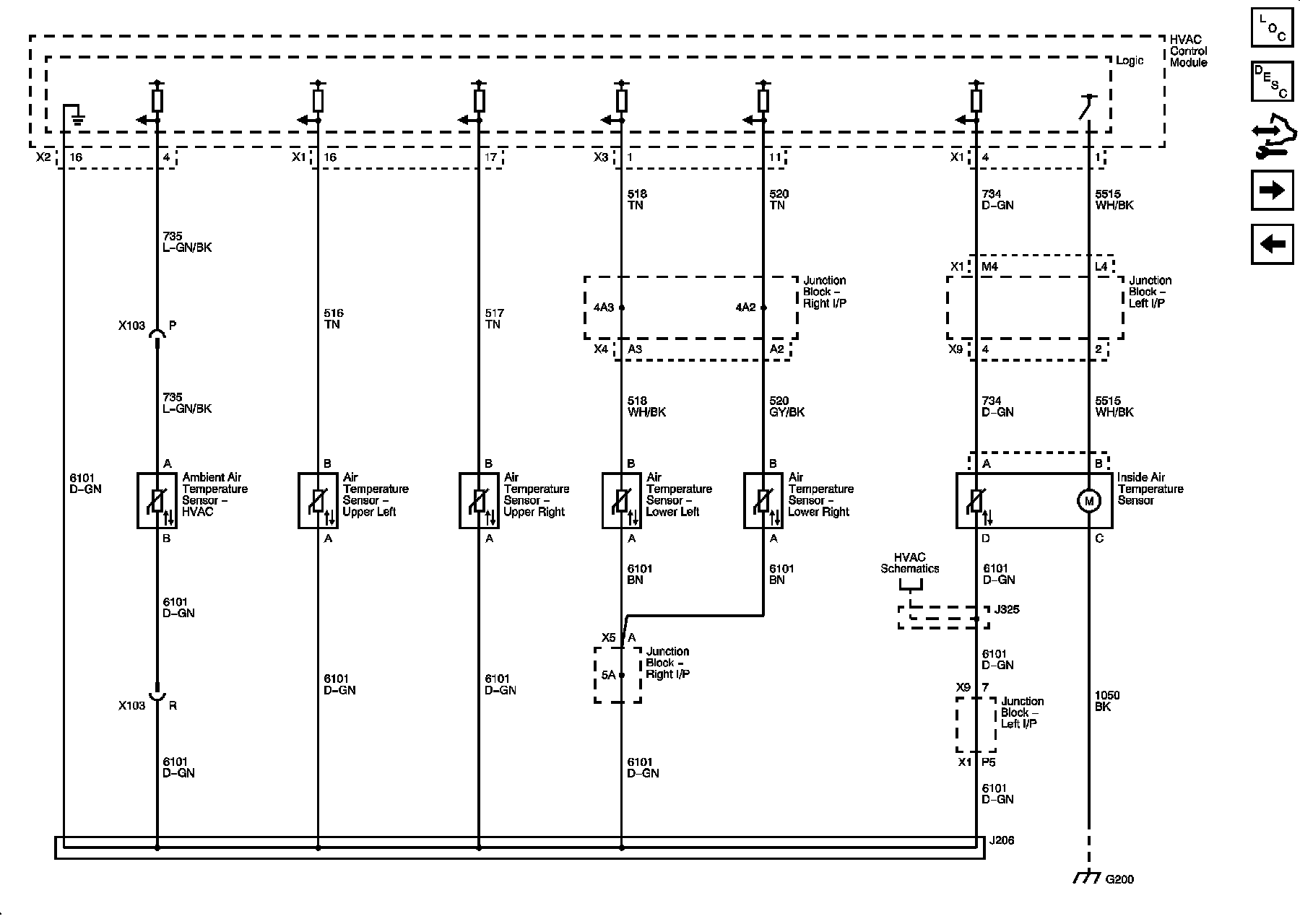

Front Temperature Sensors





Auxiliary Blower Controls

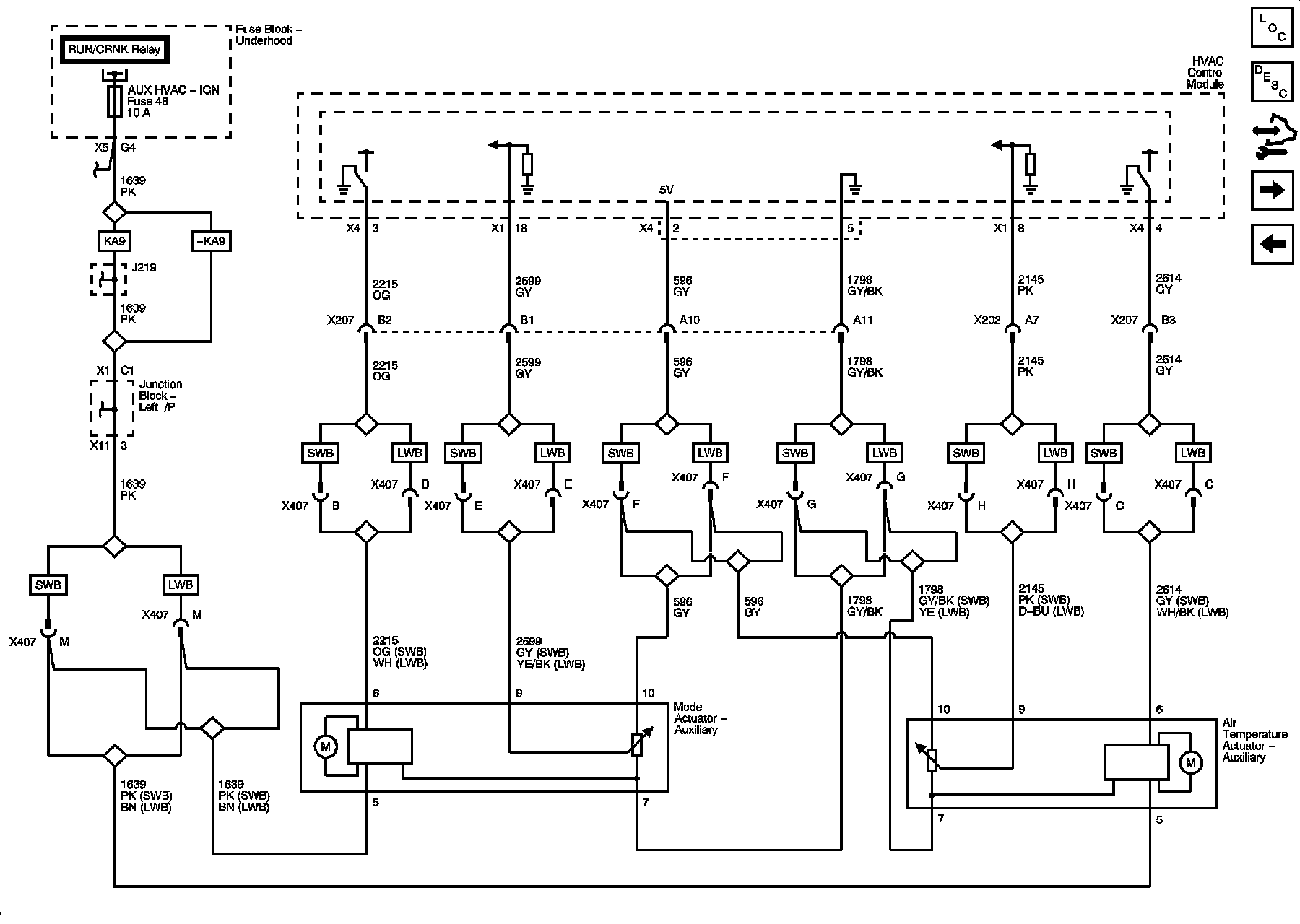

Auxiliary Mode and Temperature Controls





Auxiliary Temperature Sensors





A/C Compressor Controls (Except HP2)
