Trailer Brake Control Schematics

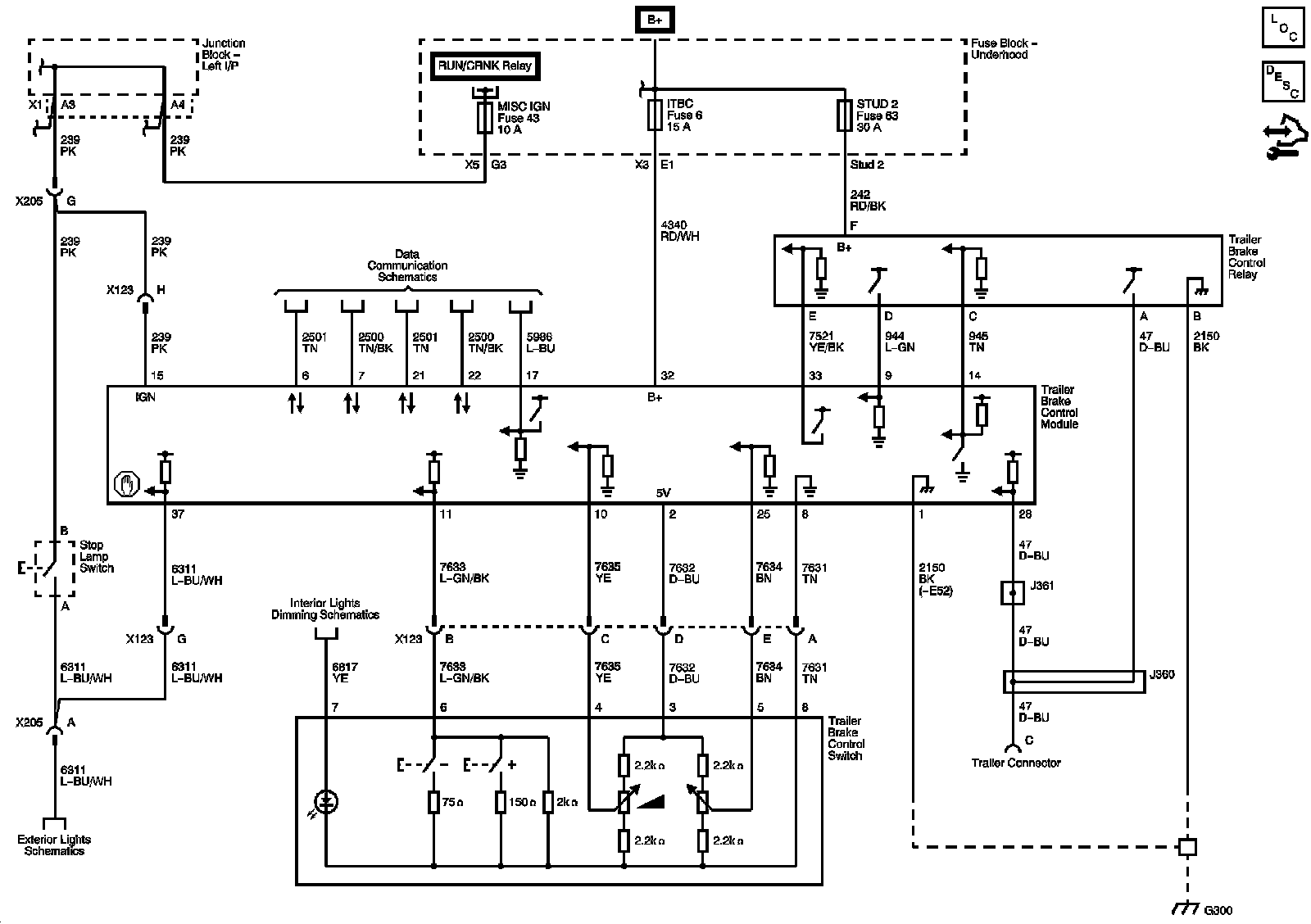

Trailer Brake Control System - E52

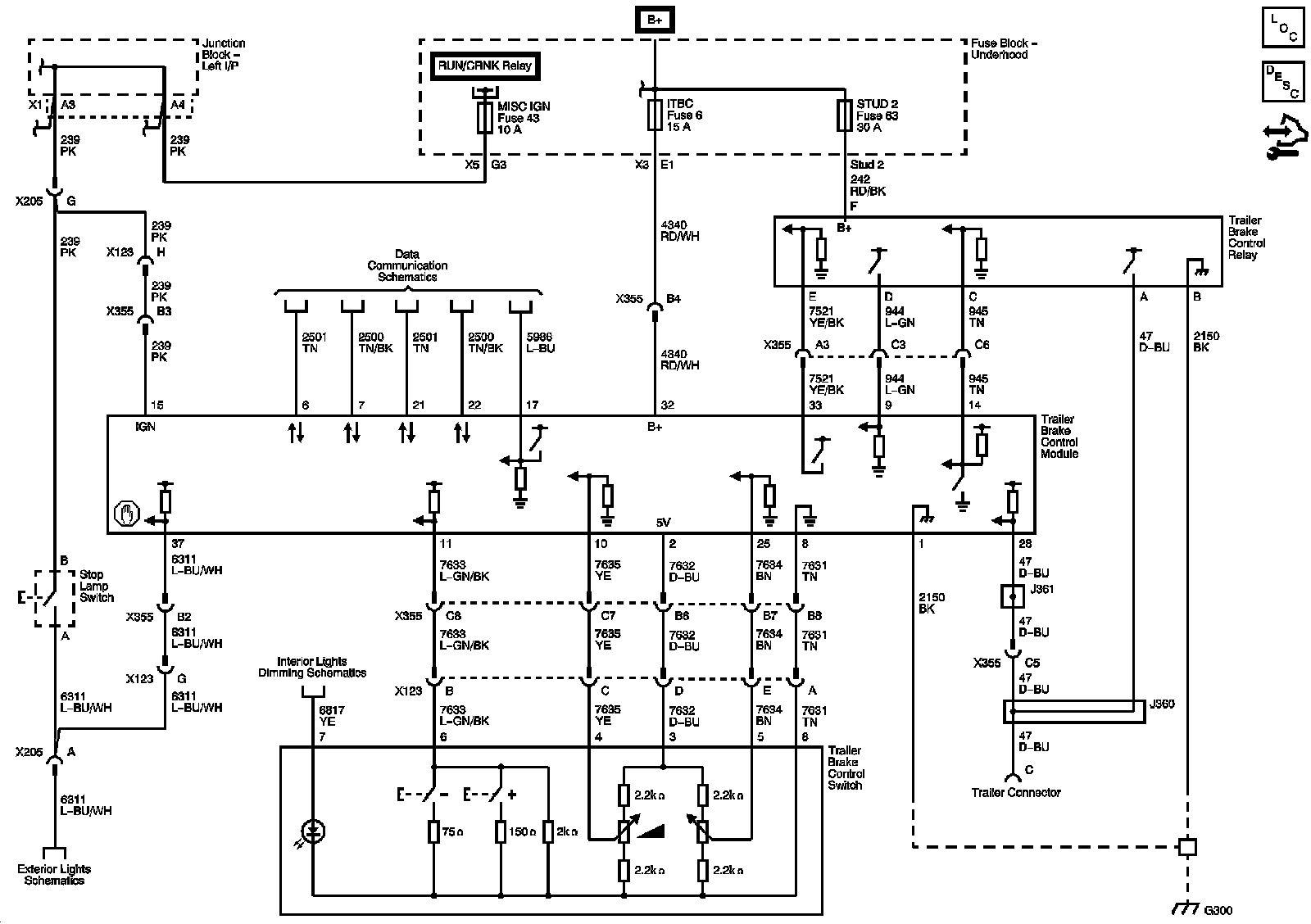

Trailer Brake Control System - without E52
