Less than 3900 kg (8600 lb) GVW




Antilock Brake System Schematics

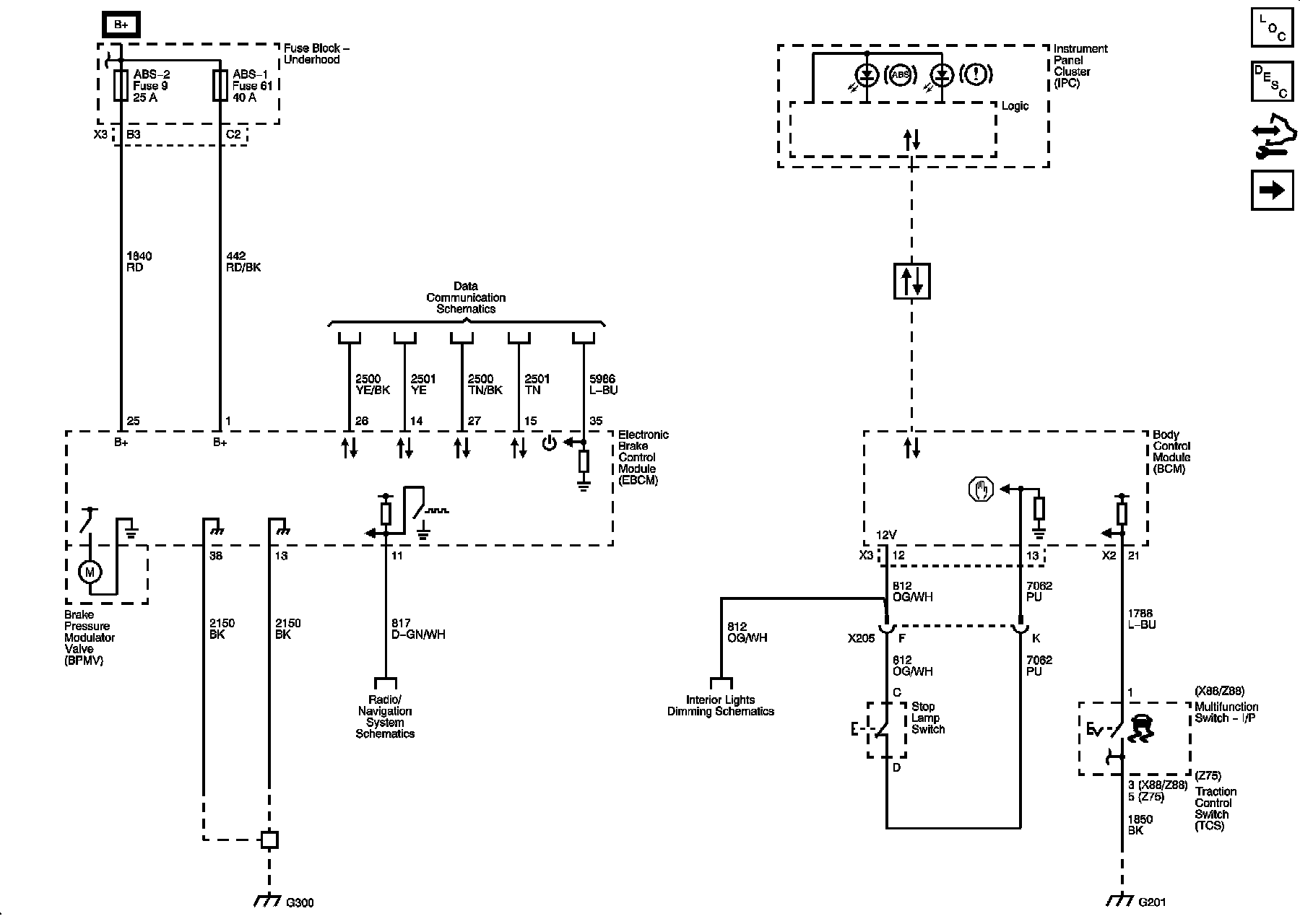

Module Power, Ground, and Serial Data, Pump Motor and Brake Switch - JD9 Under 8600 GVW

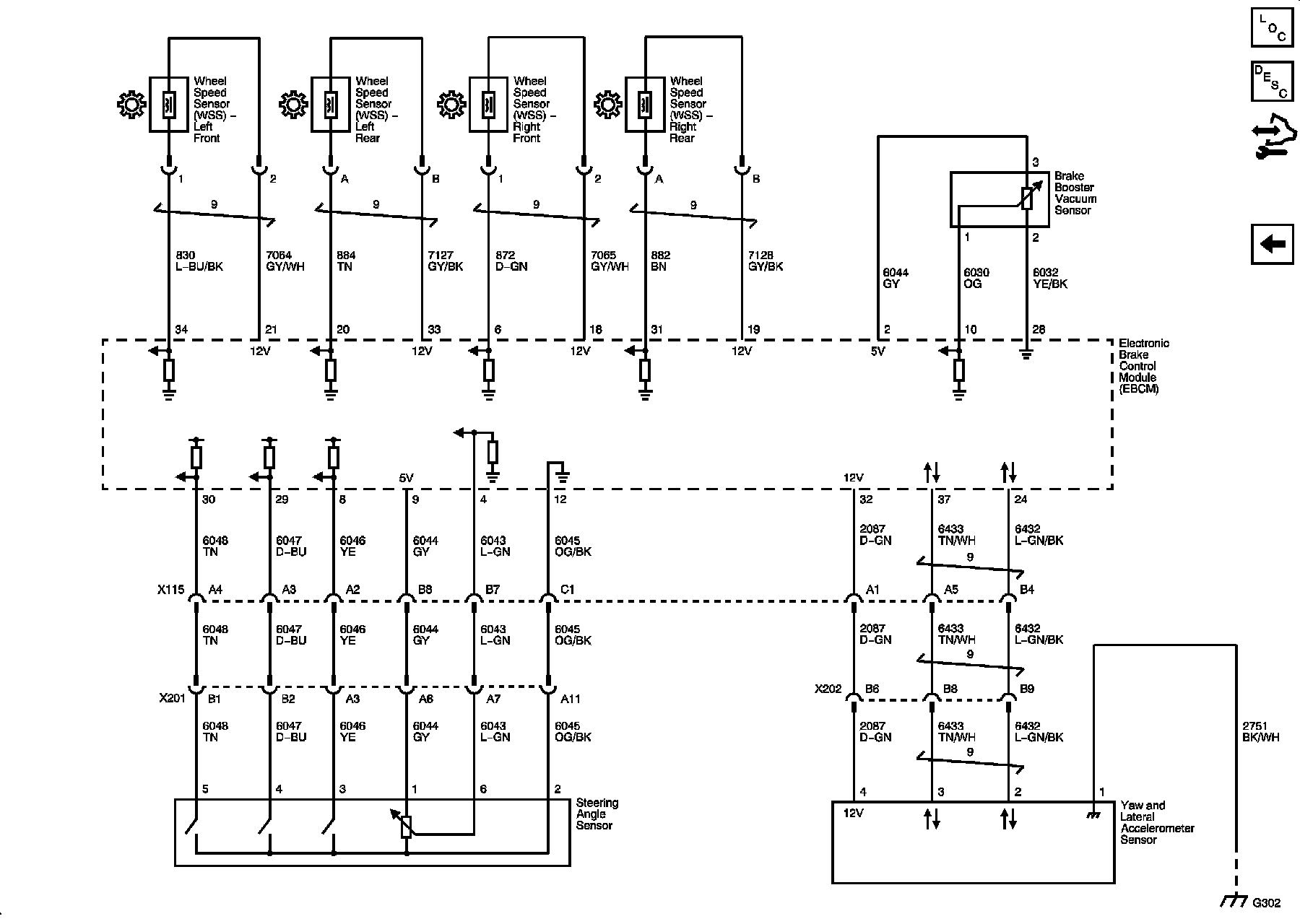

Sensors - JD9 Under 8600 GVW
