Greater than/Equal to 3900 kg (8600 lb) GVW




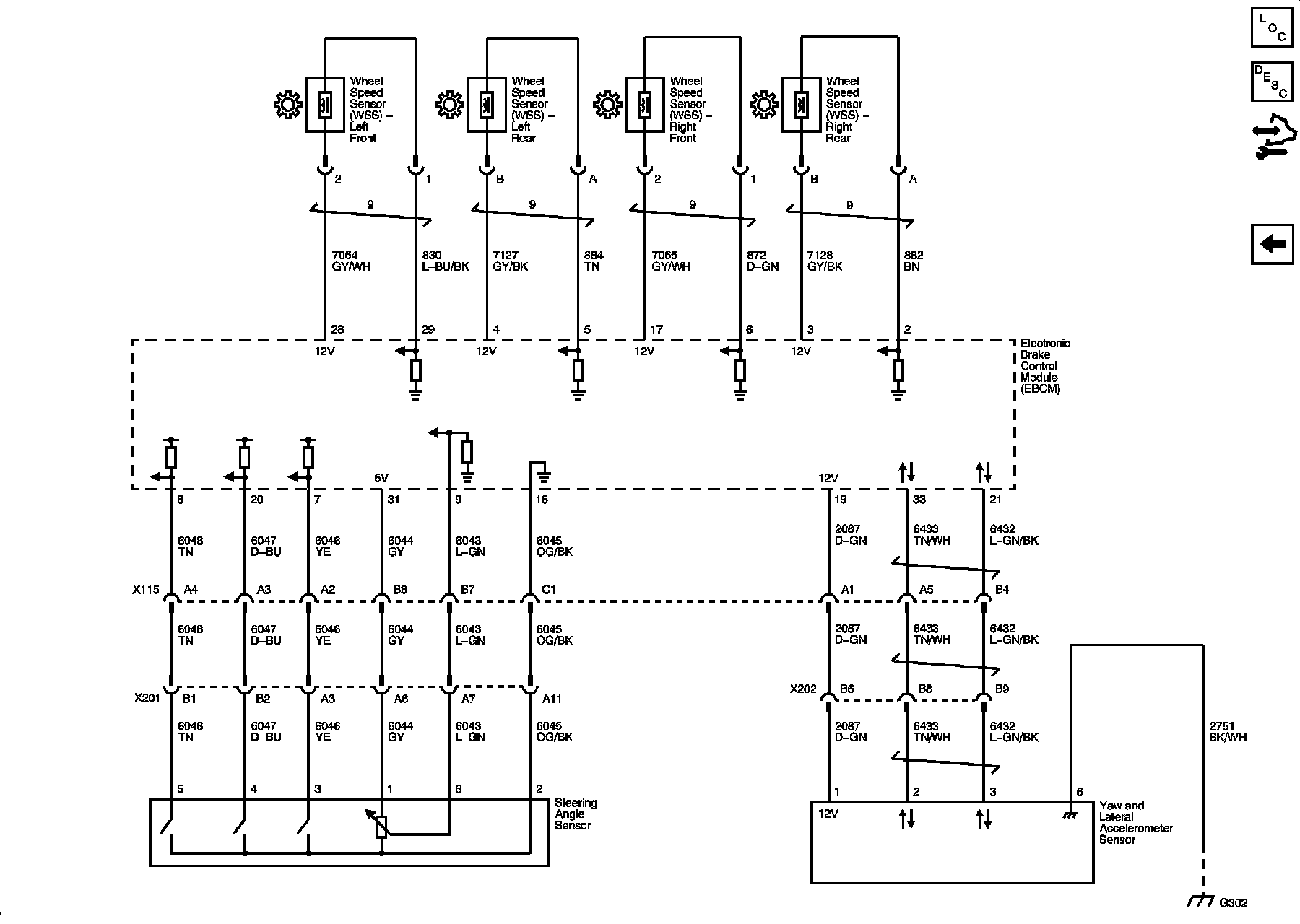

Antilock Brake System Schematics

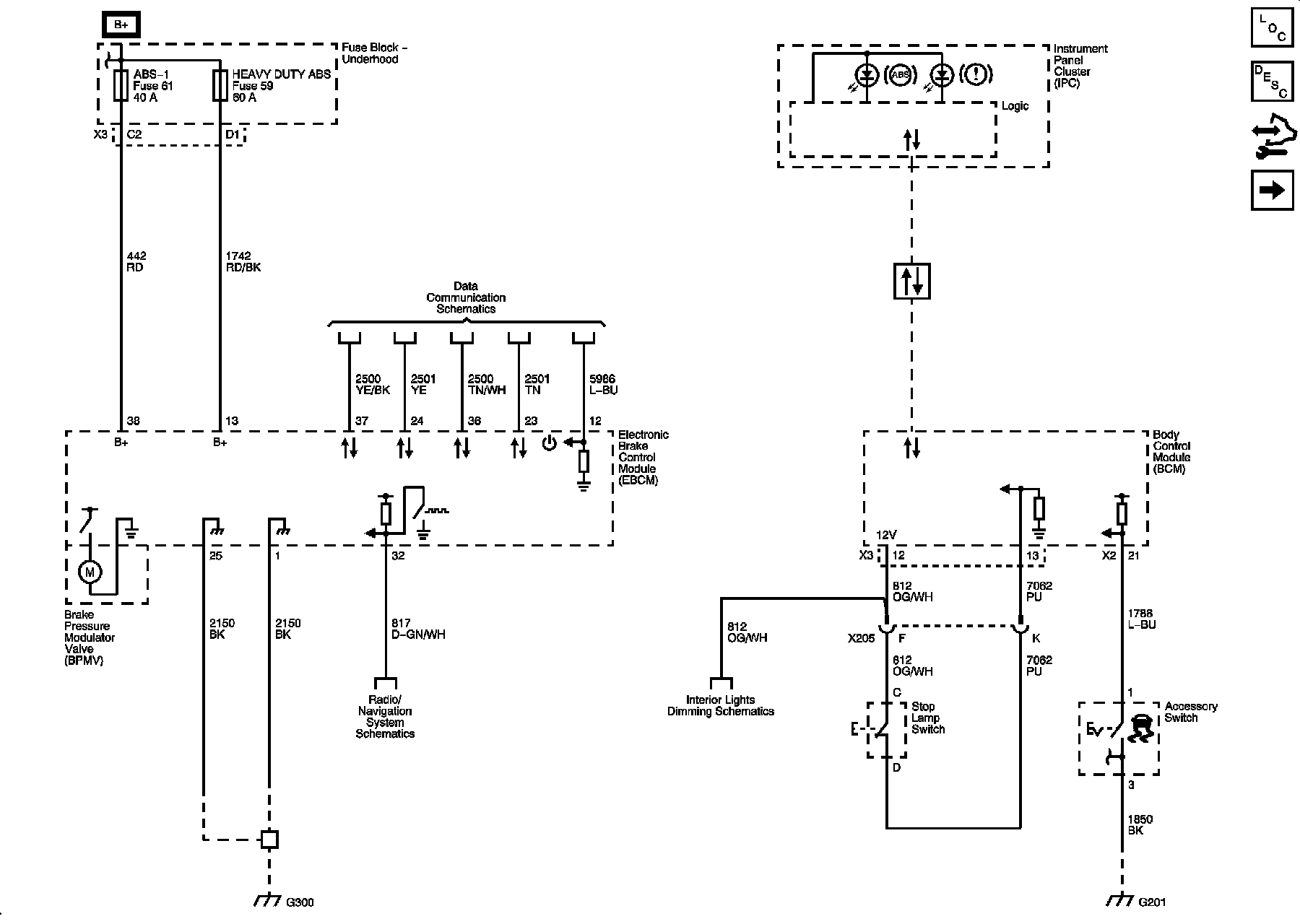

Module Power, Ground, and Serial Data, Pump Motor and Brake Switch - JH6 Over 8600 GVW





JH6 Over 8600 GVW
