Air Bag Systems




SIR Schematics

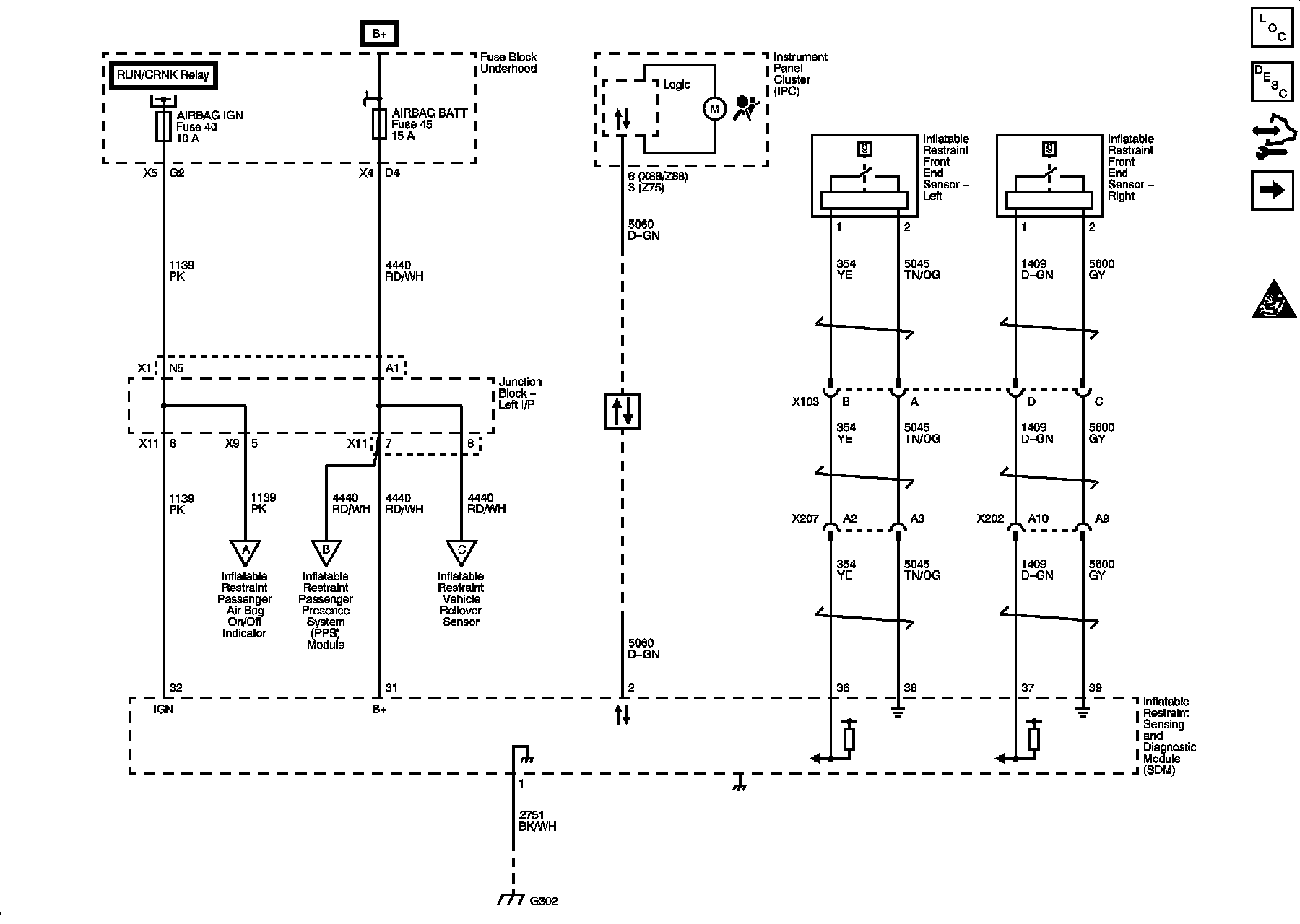

Module Power, Ground, and Serial Data and Front Sensors





Steering Wheel and I/P Module

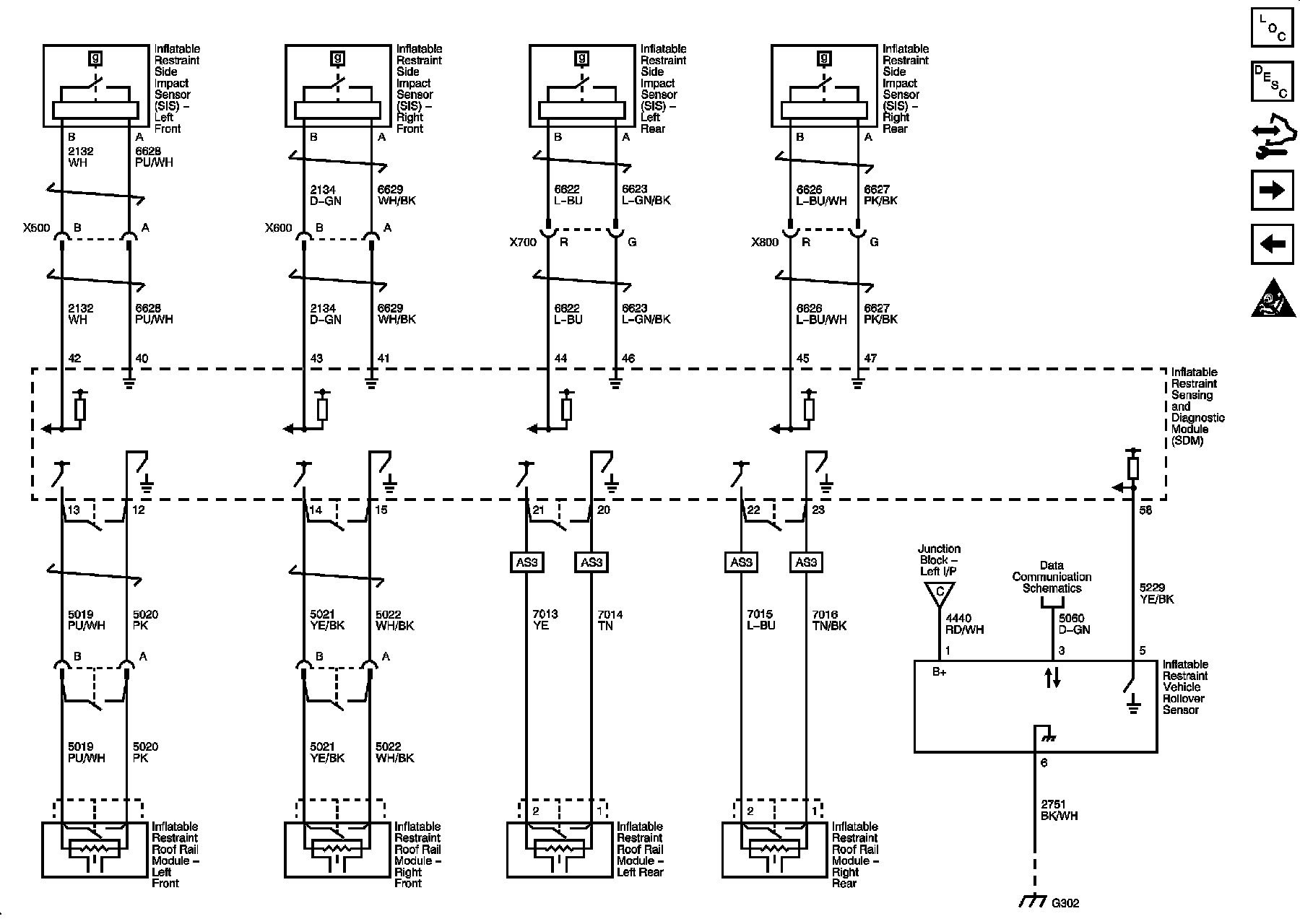

Side Impact Sensors and Modules

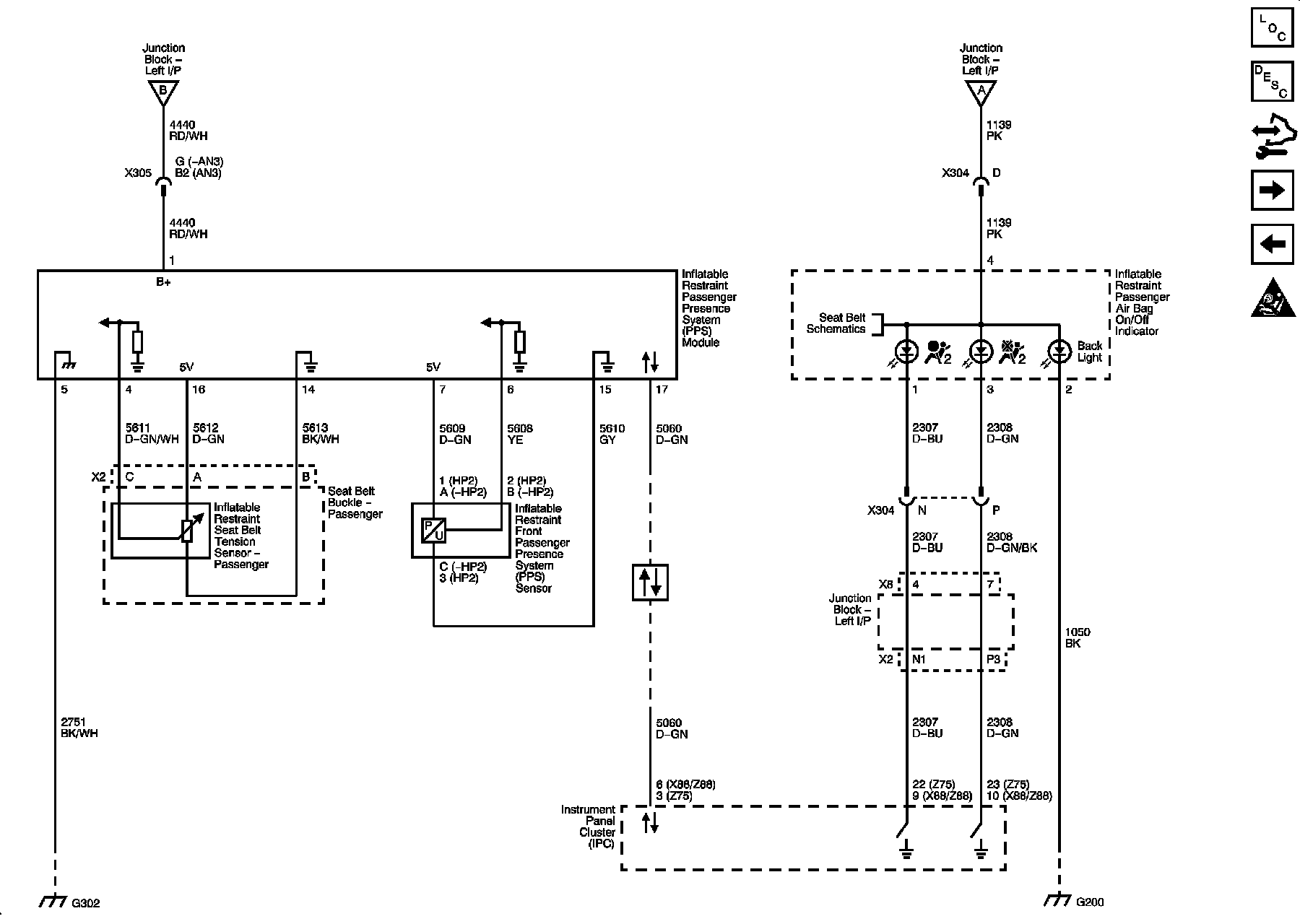

Passenger Presence System - 1 of 2





Passenger Presence System - 2 of 2
