Home >> Cadillac >> 2009 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> System Diagram >> Steering Wheel Secondary/Configurable Control Schematics

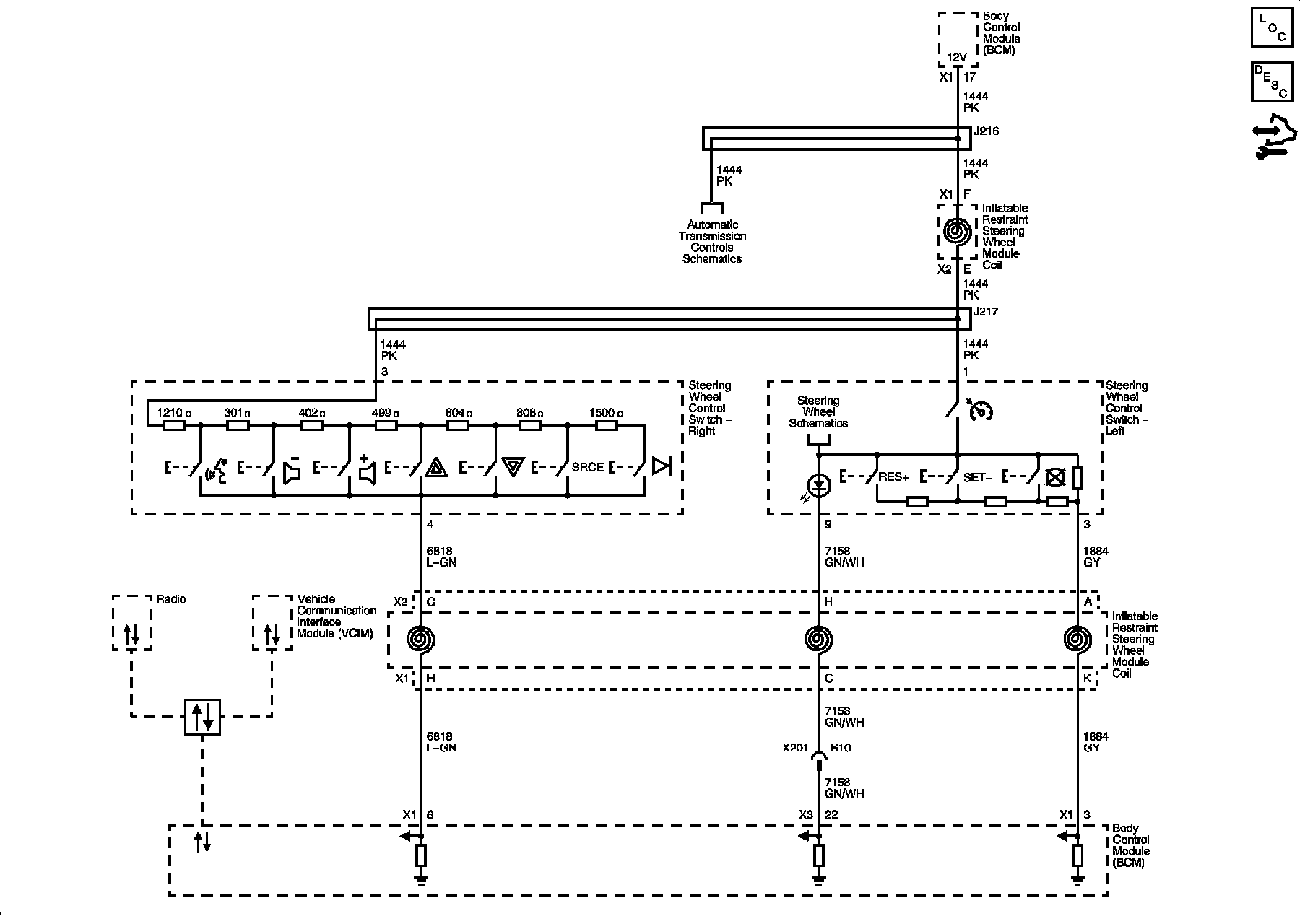

Steering Wheel Secondary/Configurable Control Schematics




Steering Wheel Secondary/Configurable Control Schematics
