Radio/Navigation System Schematics




Radio/Navigation System Schematics

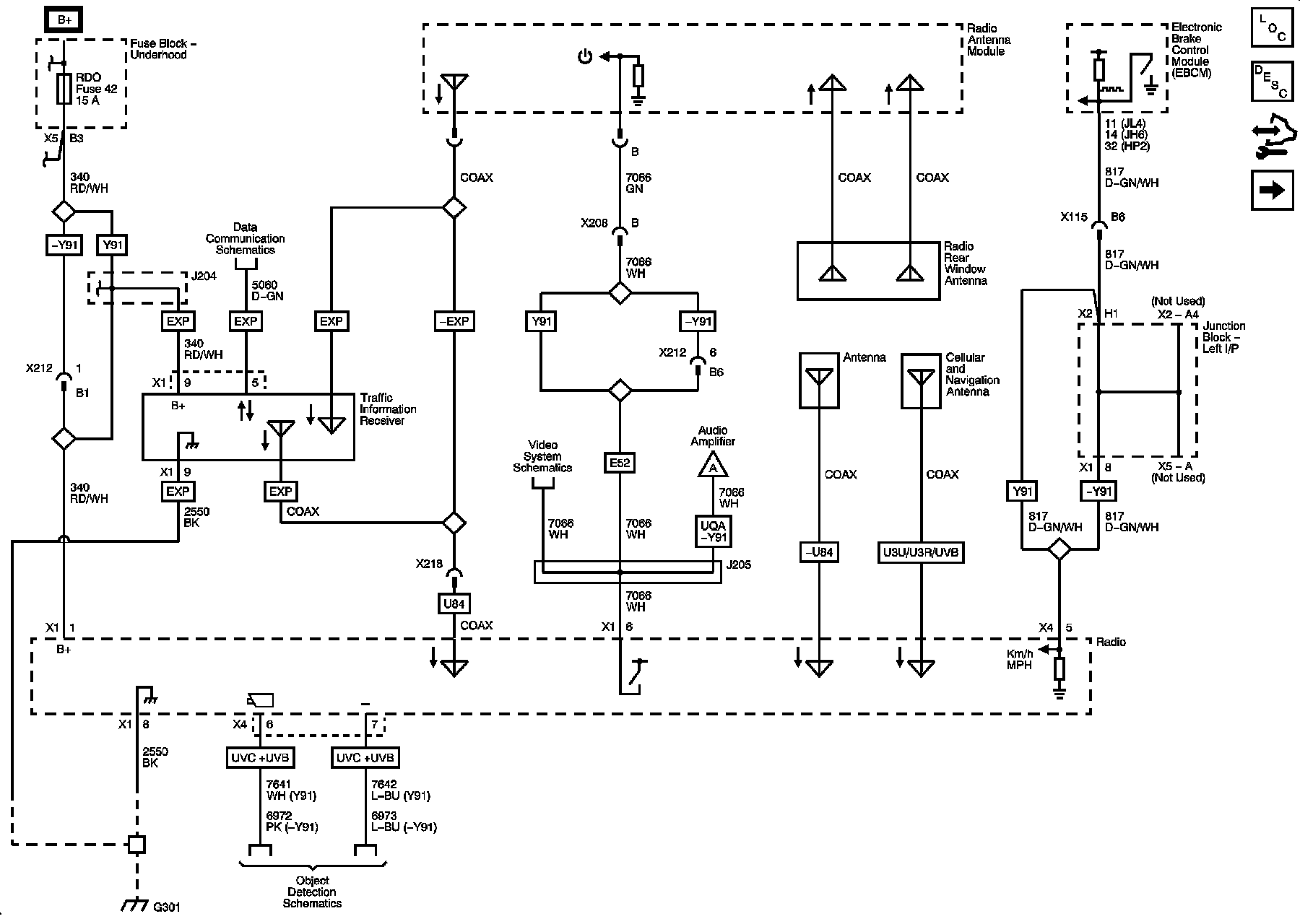

Radio Power, Ground, Serial Data, and Antenna Signals

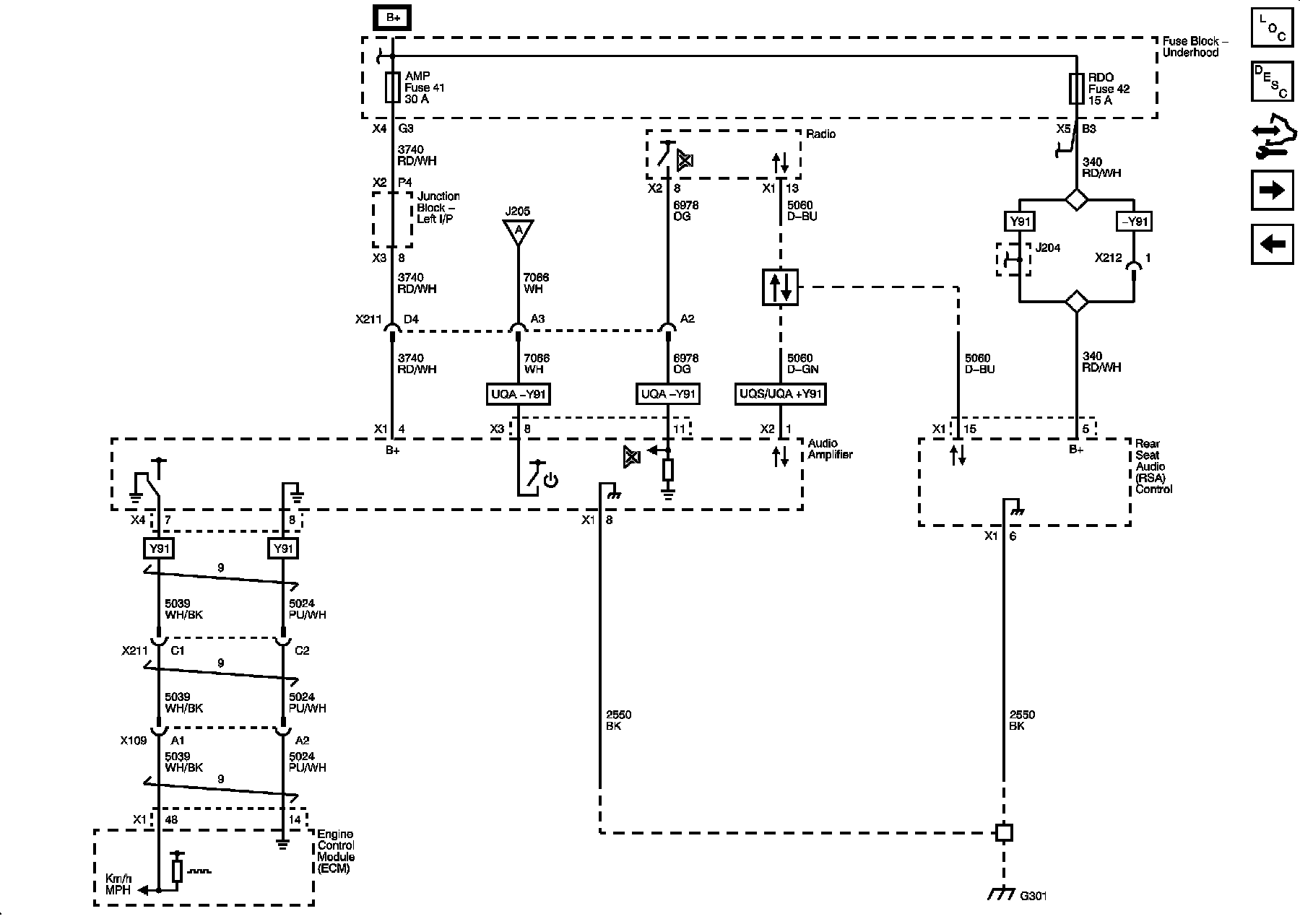

Amplifier (UQA or UQS) and Rear Seat Audio (UK6) Power, Ground, and Serial Data

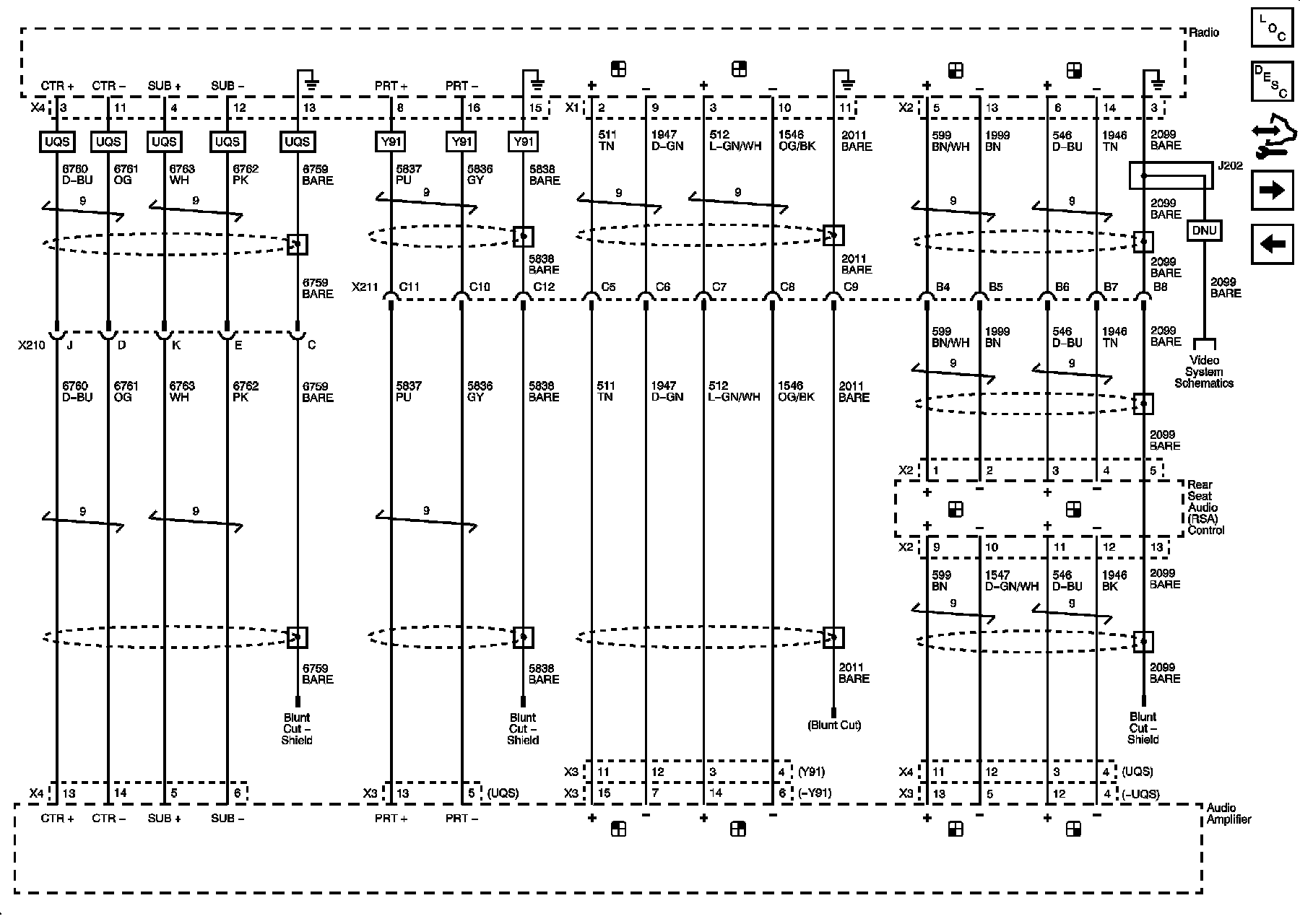

Amplifier Inputs - UQA/UQS





Front Speakers - UQ3





Rear Speakers UQ3 Except UK6

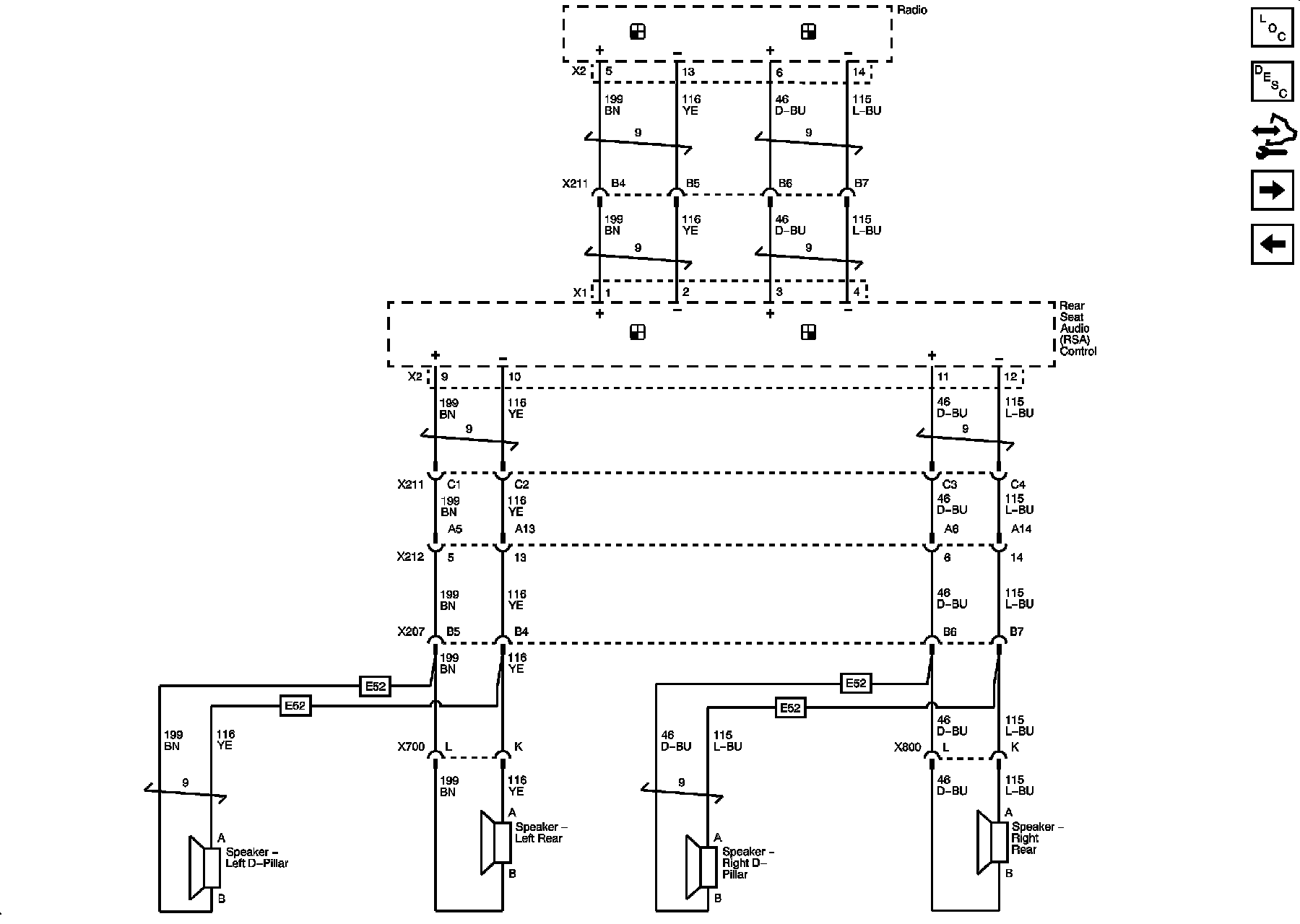

Rear Speakers - UQ3 with UK6

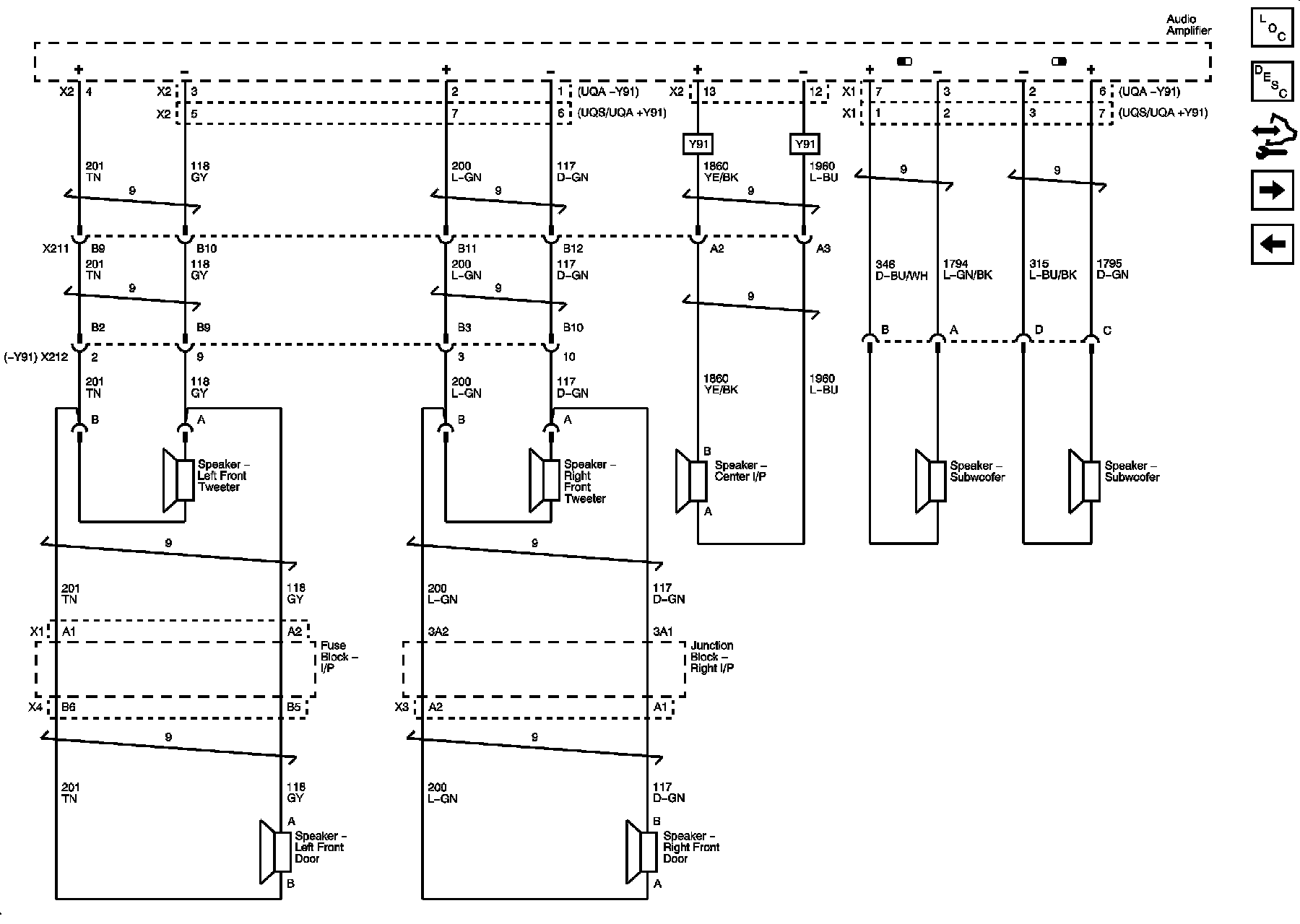

Front Speakers - UQA/UQS





Rear Speakers - UQA





Rear Speakers - UQS





Digital Radio Receiver - U2K
