Collision Avoidance and Parking Assist Systems




Object Detection Schematics

Rear Object Sensing (UD7)

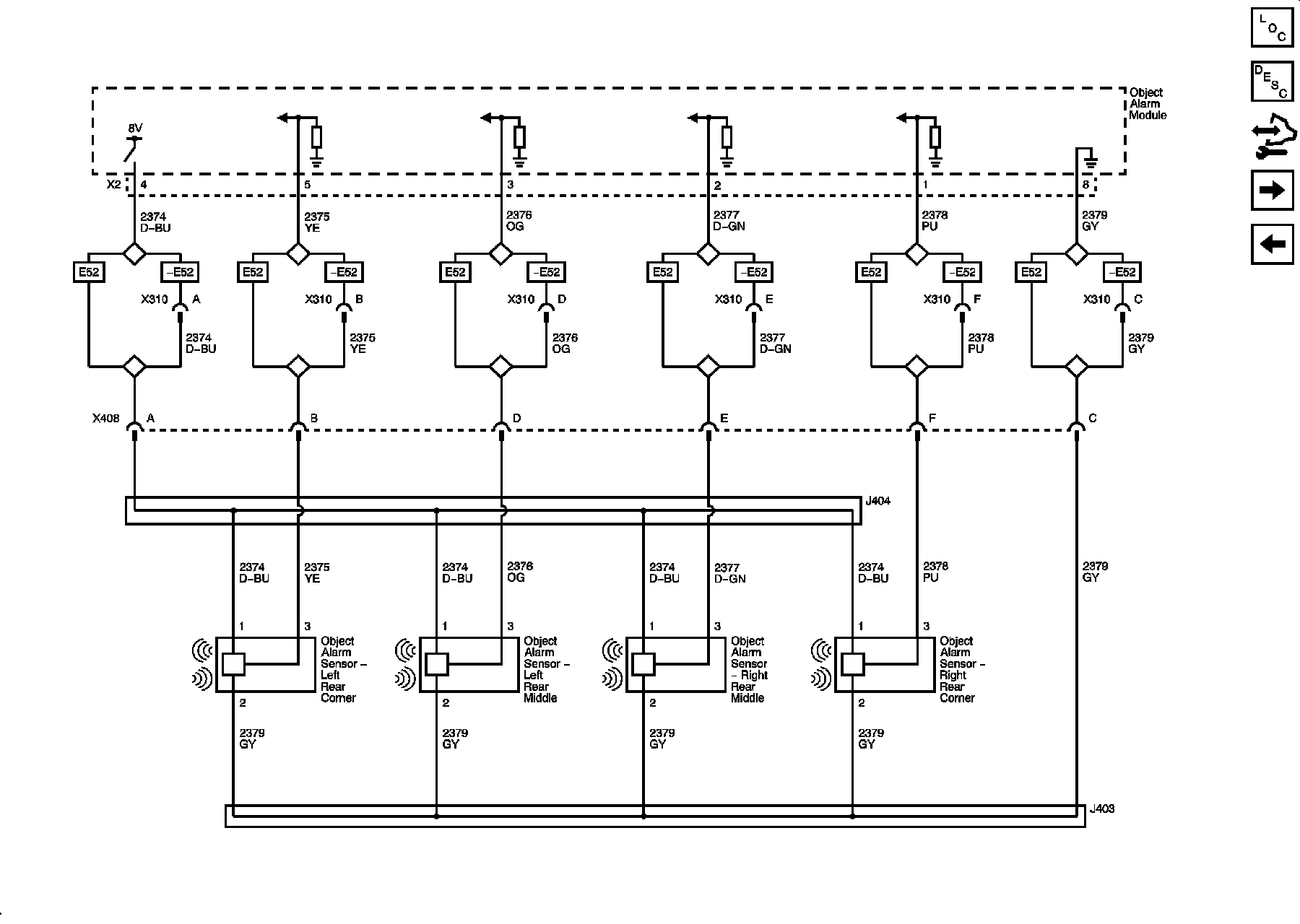

Rear Object Sensors (UD7)

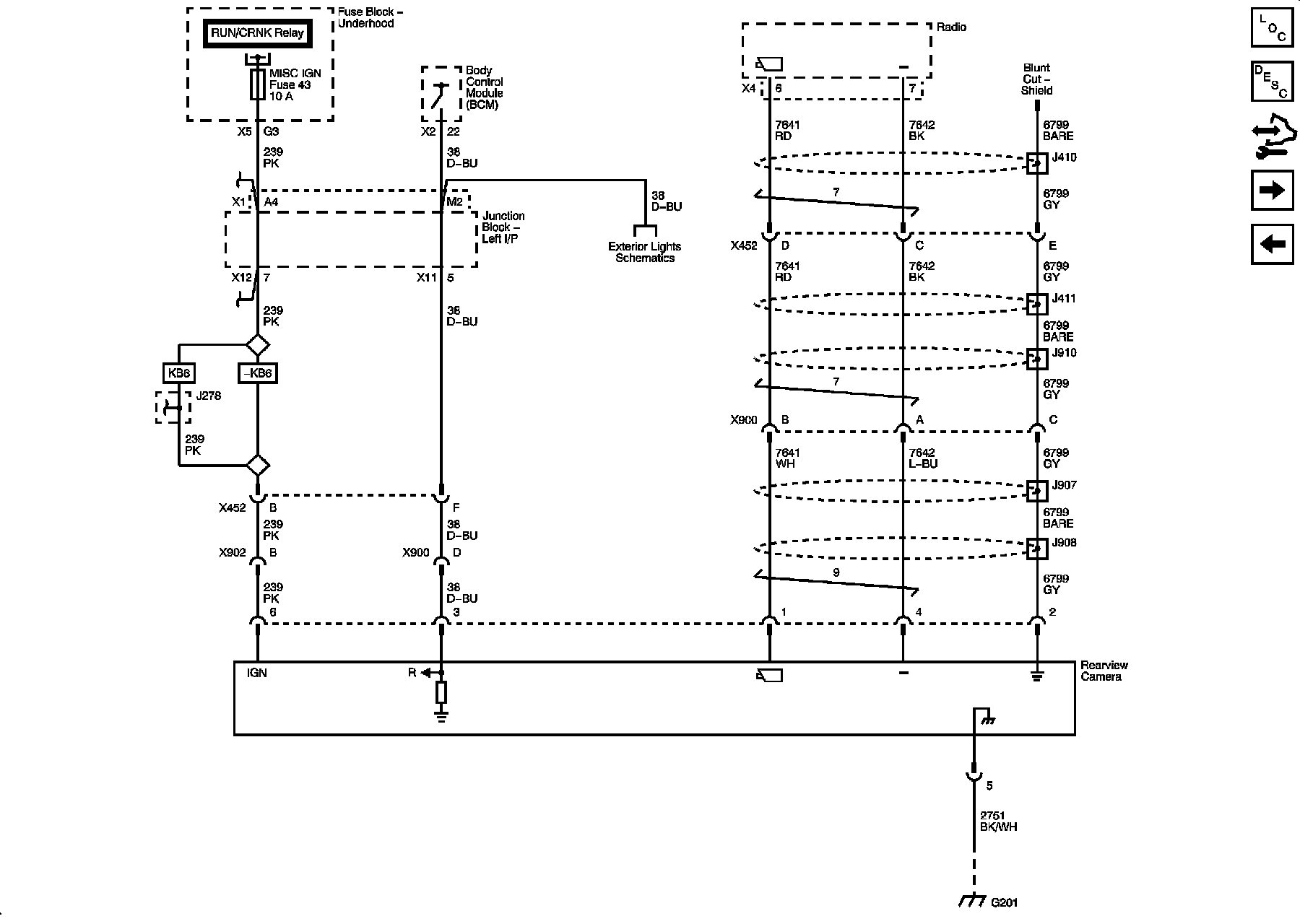

Rear Video Camera - 1 of 2 (UVC)

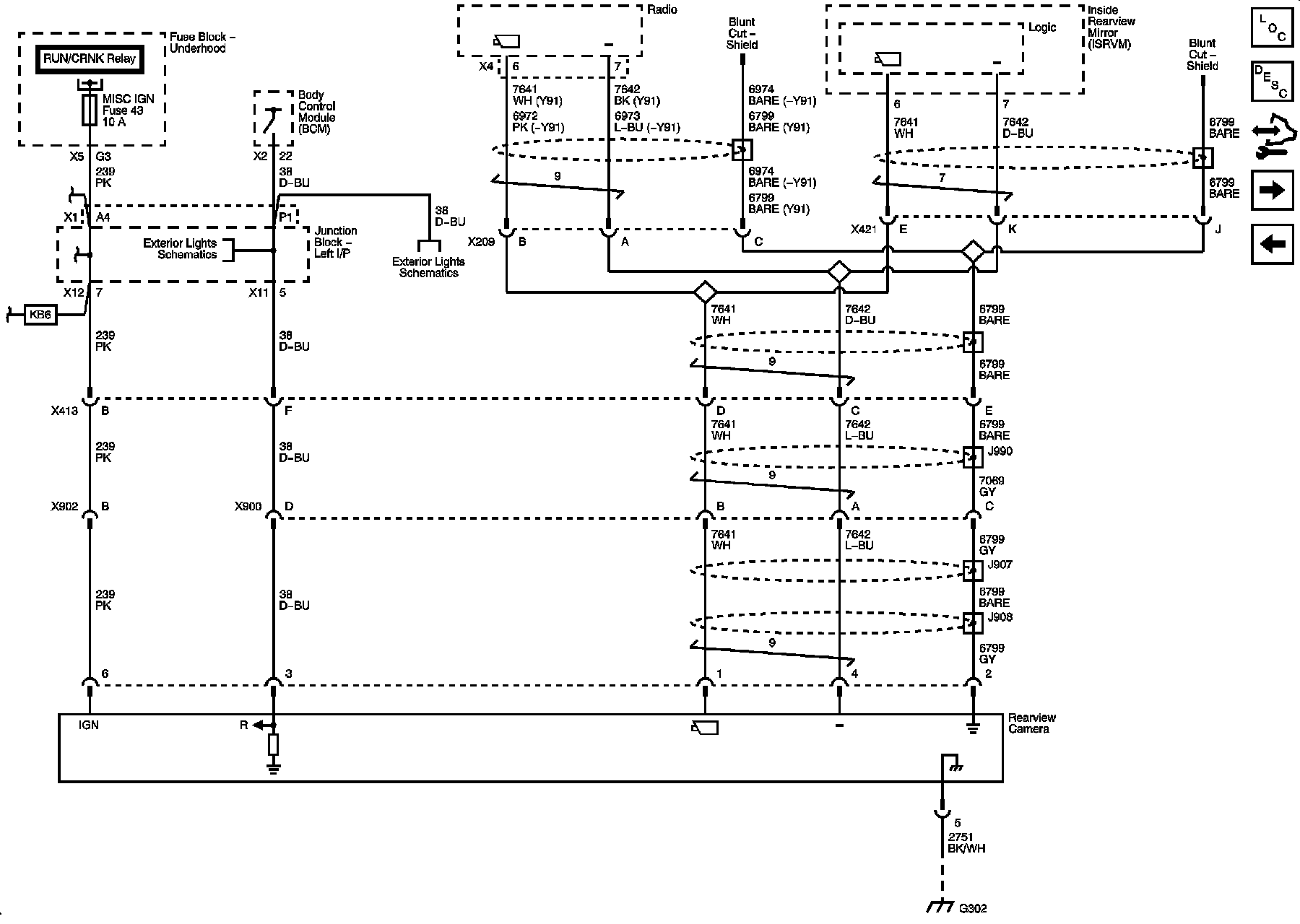

Rear Video Camera 2 of 2 (UVC)

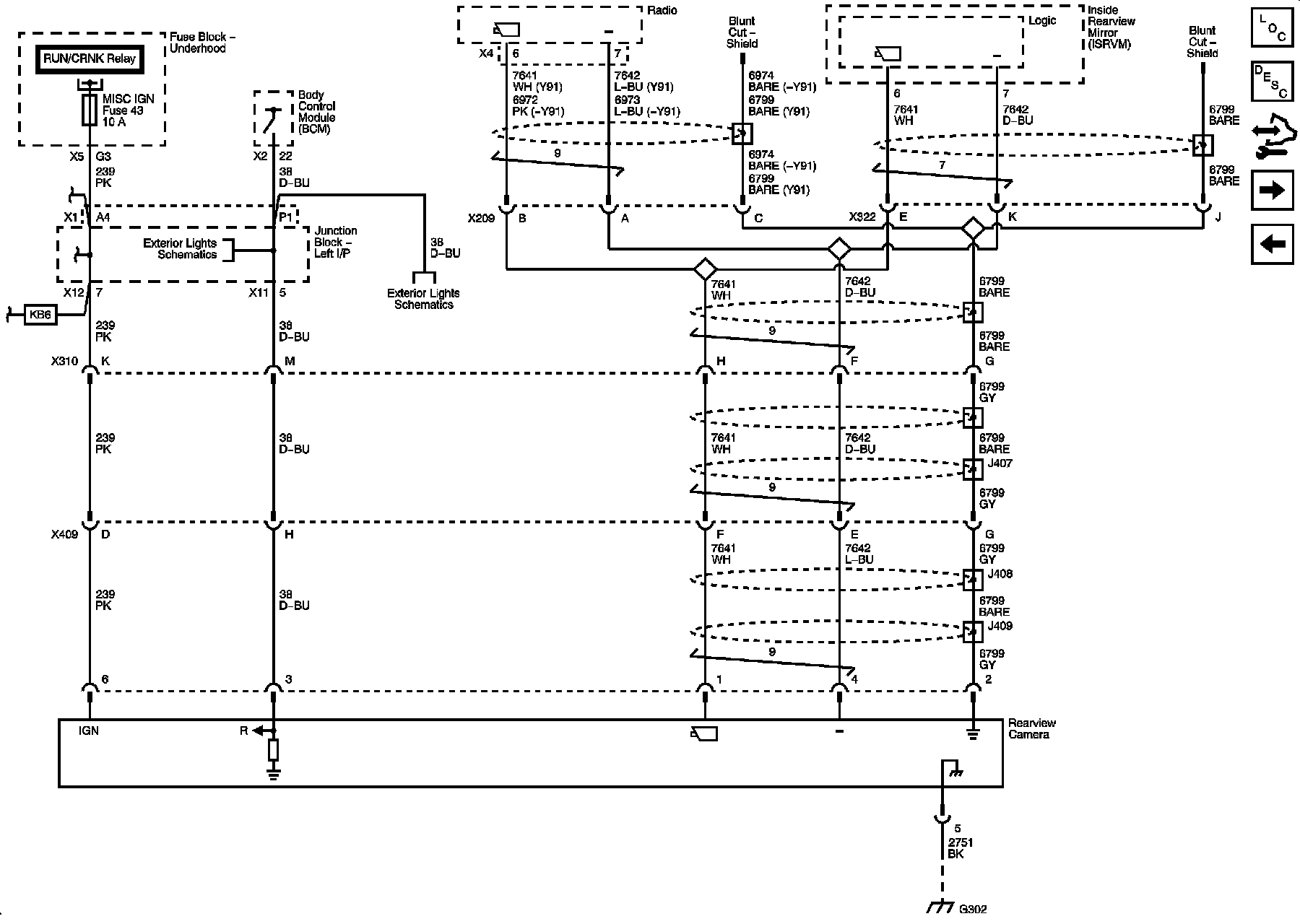

SPO Accessory Rear Vision Camera





Side Object Detection - UFT
