Wheel Speed Sensor




Component Connector End Views

Wheel Speed Sensor (WSS) - Left Front (HP2 or JD9 Under 8600 GVW)





Wheel Speed Sensor (WSS) - Left Front (JH6 Over 8600 GVW)





Wheel Speed Sensor (WSS) - Left Rear

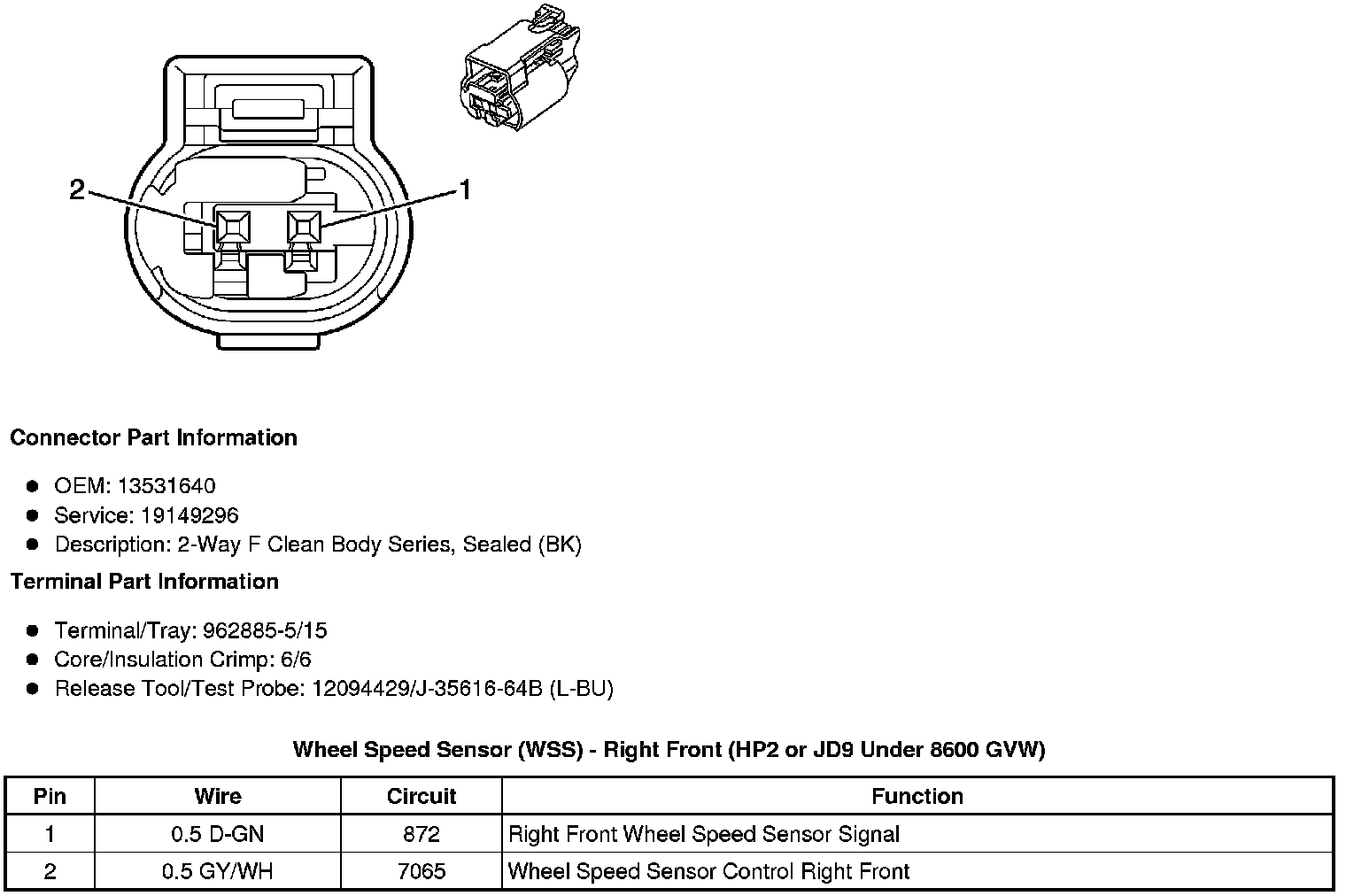

Wheel Speed Sensor (WSS) - Right Front (HP2 or JD9 Under 8600 GVW)





Wheel Speed Sensor (WSS) - Right Front (JH6 Over 8600 GVW)





Wheel Speed Sensor (WSS) - Right Rear
