Vehicle Speed Sensor
Vehicle Speed Sensor
Component Connector End Views

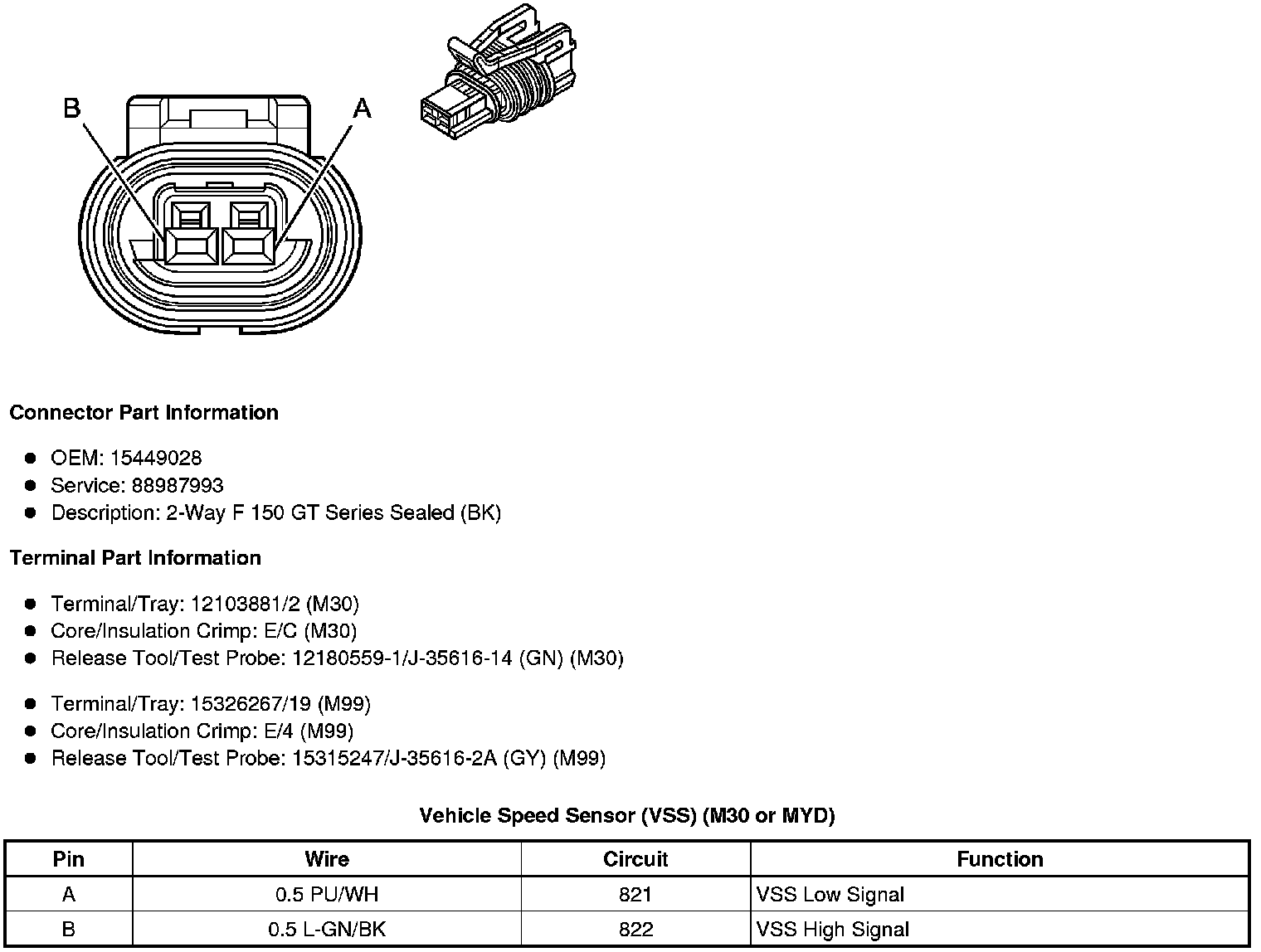

Vehicle Speed Sensor (VSS) (M30 or MYD)
