Valve Deactivation Solenoid

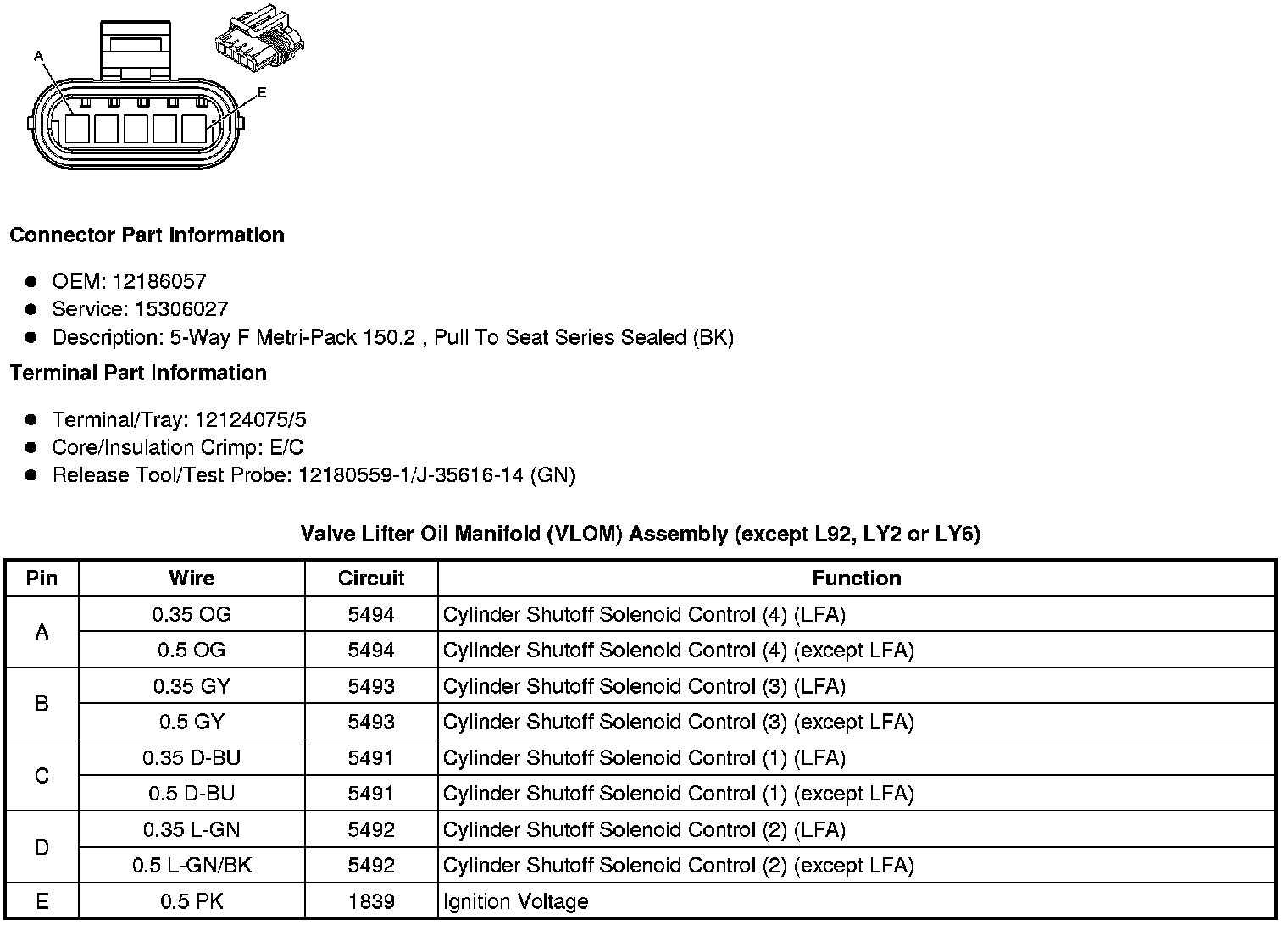

Component Connector End Views

Valve Lifter Oil Manifold (VLOM) Assembly (except L92, LY2 or LY6)
