Transmission Speed Sensor, A/T




Component Connector End Views

Input and Output Speed Sensor (ISS/OSS), Wiring Harness Side (MYC or MYD)

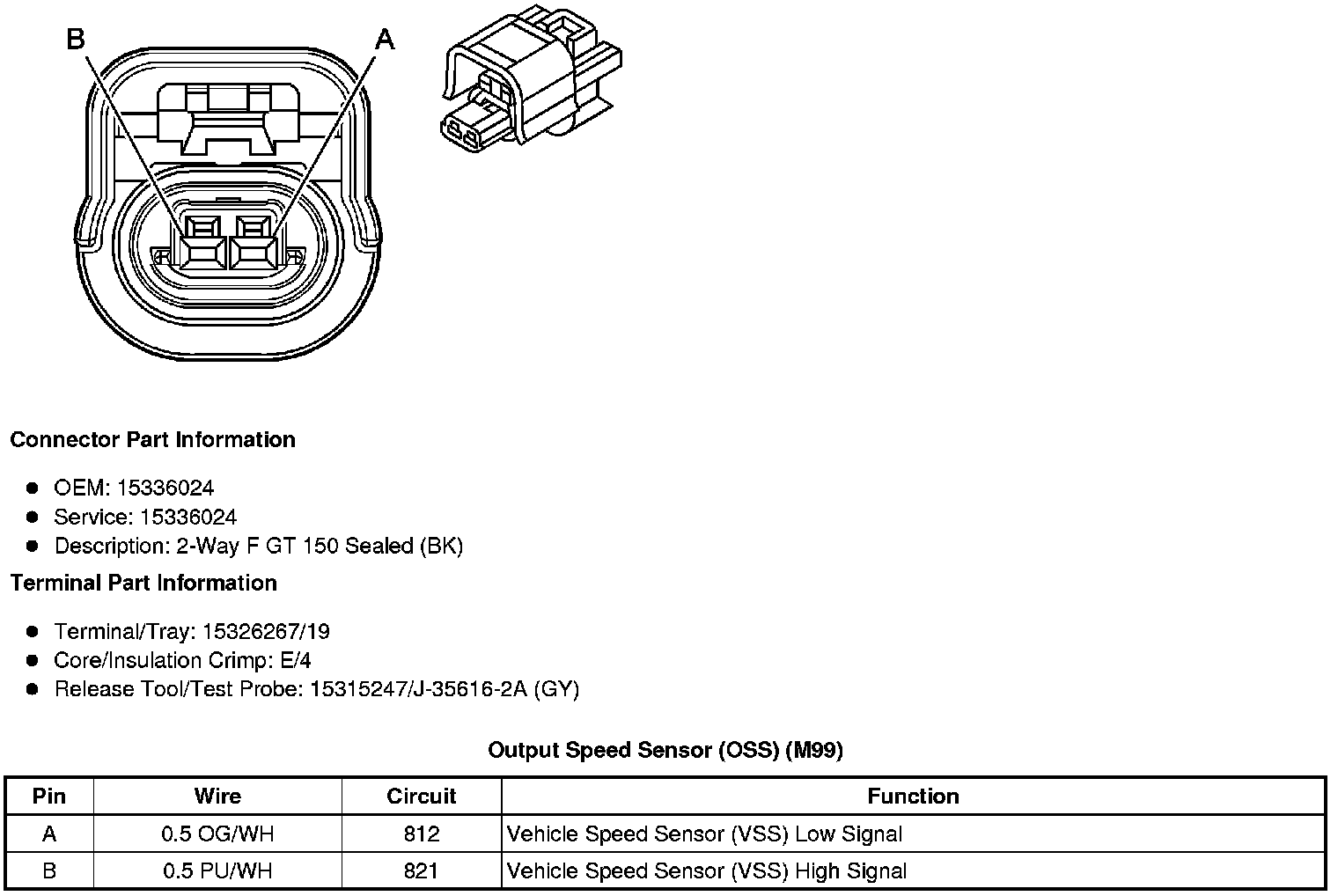

Output Speed Sensor (OSS) (M99)
