Transmission Mode Switch, A/T




Component Connector End Views

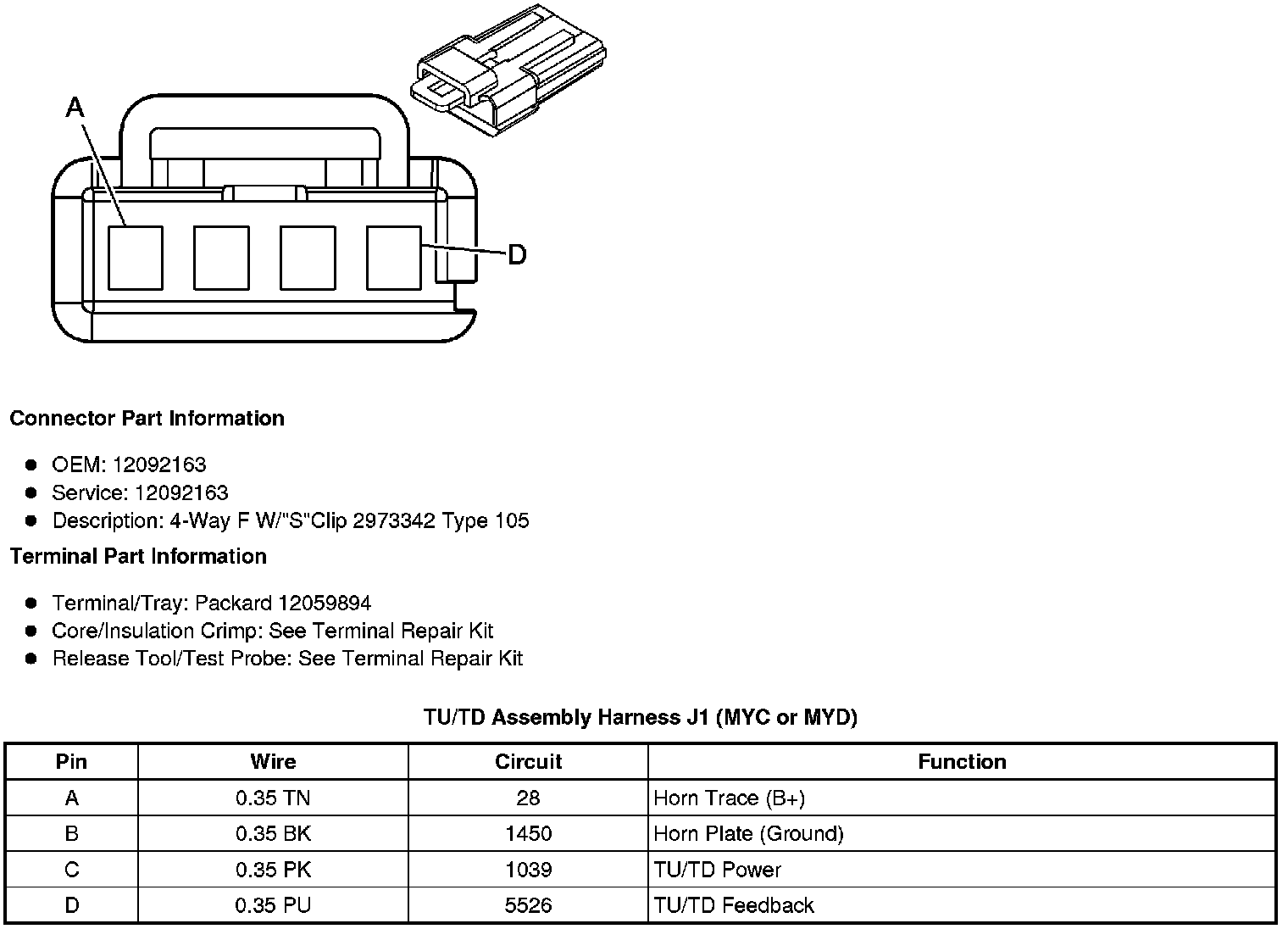

TU/TD Assembly Harness J1 (MYC or MYD)

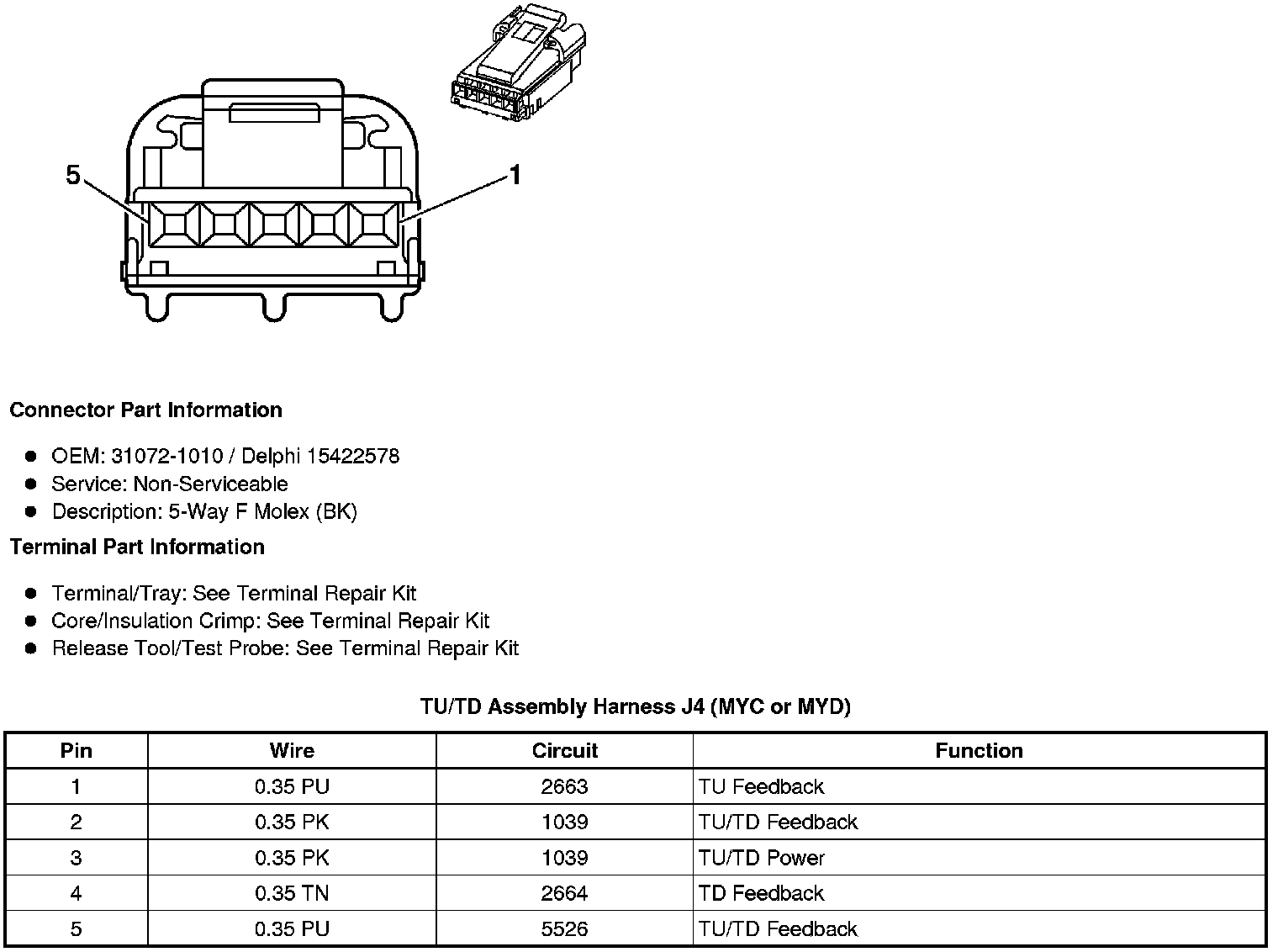

TU/TD Assembly Harness J4 (MYC or MYD)





TU/TD Assembly Harness J5 (MYC or MYD)
