JX201
JX201

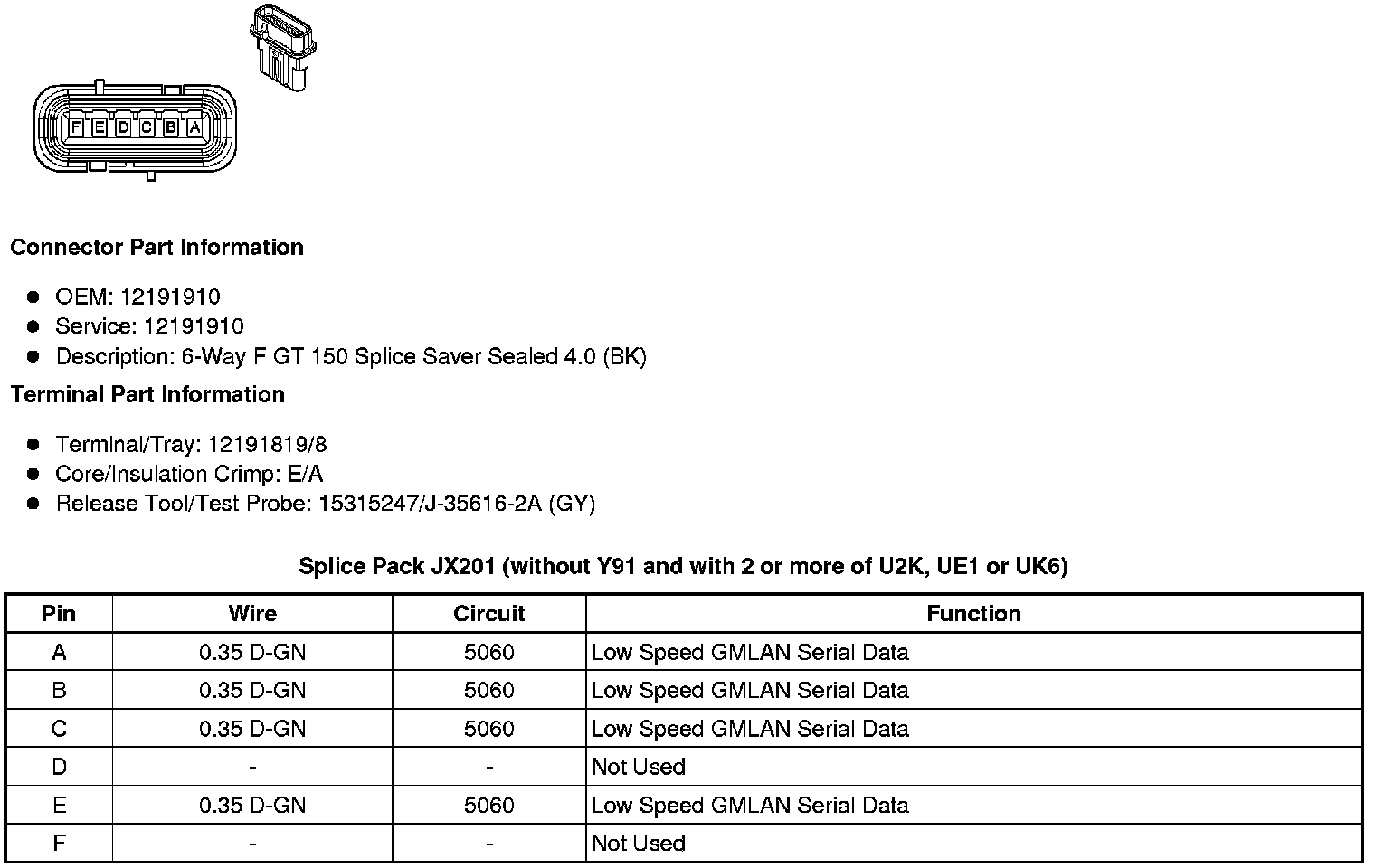

Splice Pack Connector End Views
Splice Pack JX201 (without Y91 and with 2 or more of U2K, UE1 or UK6)
