Shift Solenoid, A/T




Component Connector End Views

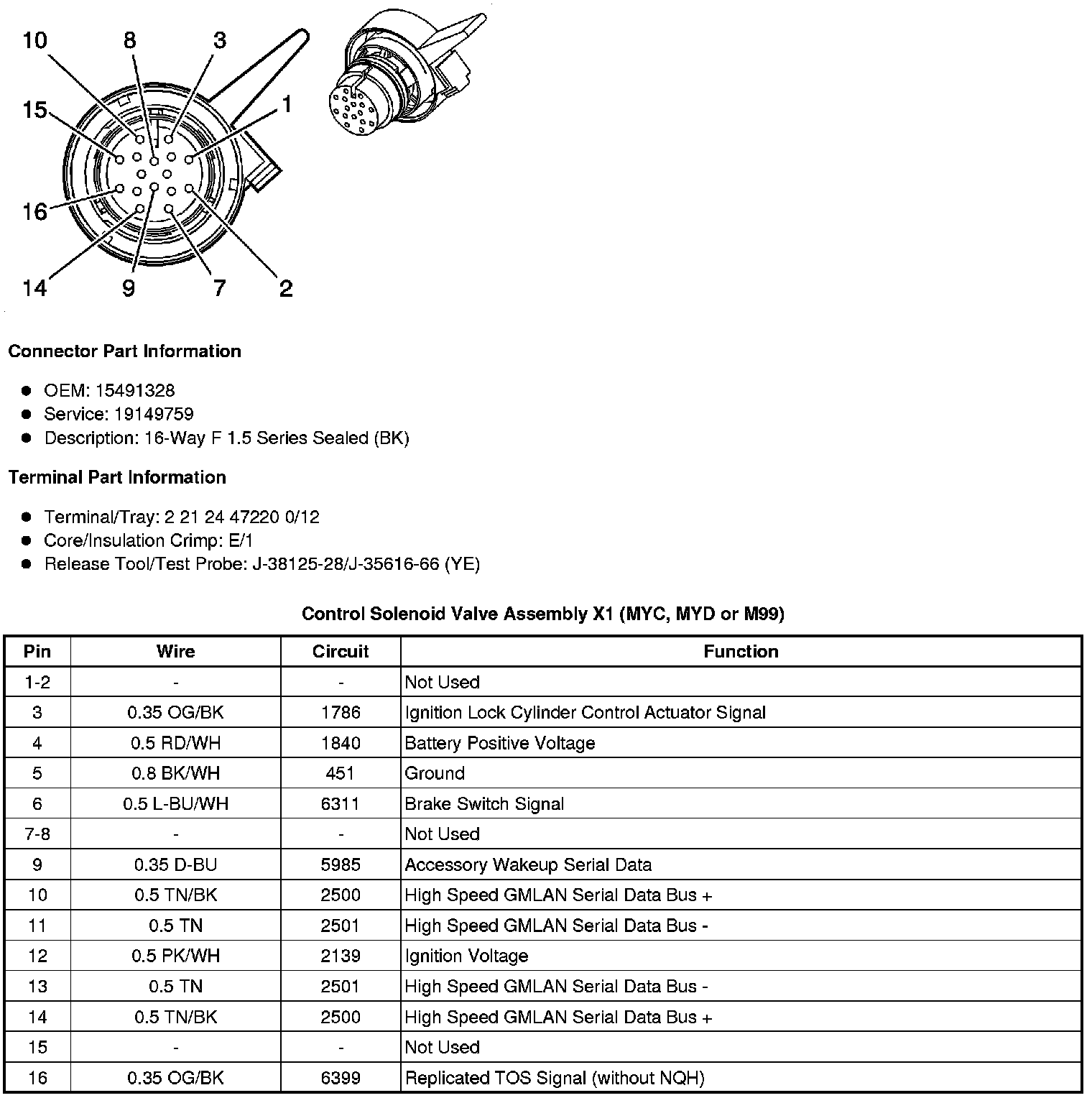

Control Solenoid Valve Assembly X1 (MYC, MYD or M99)





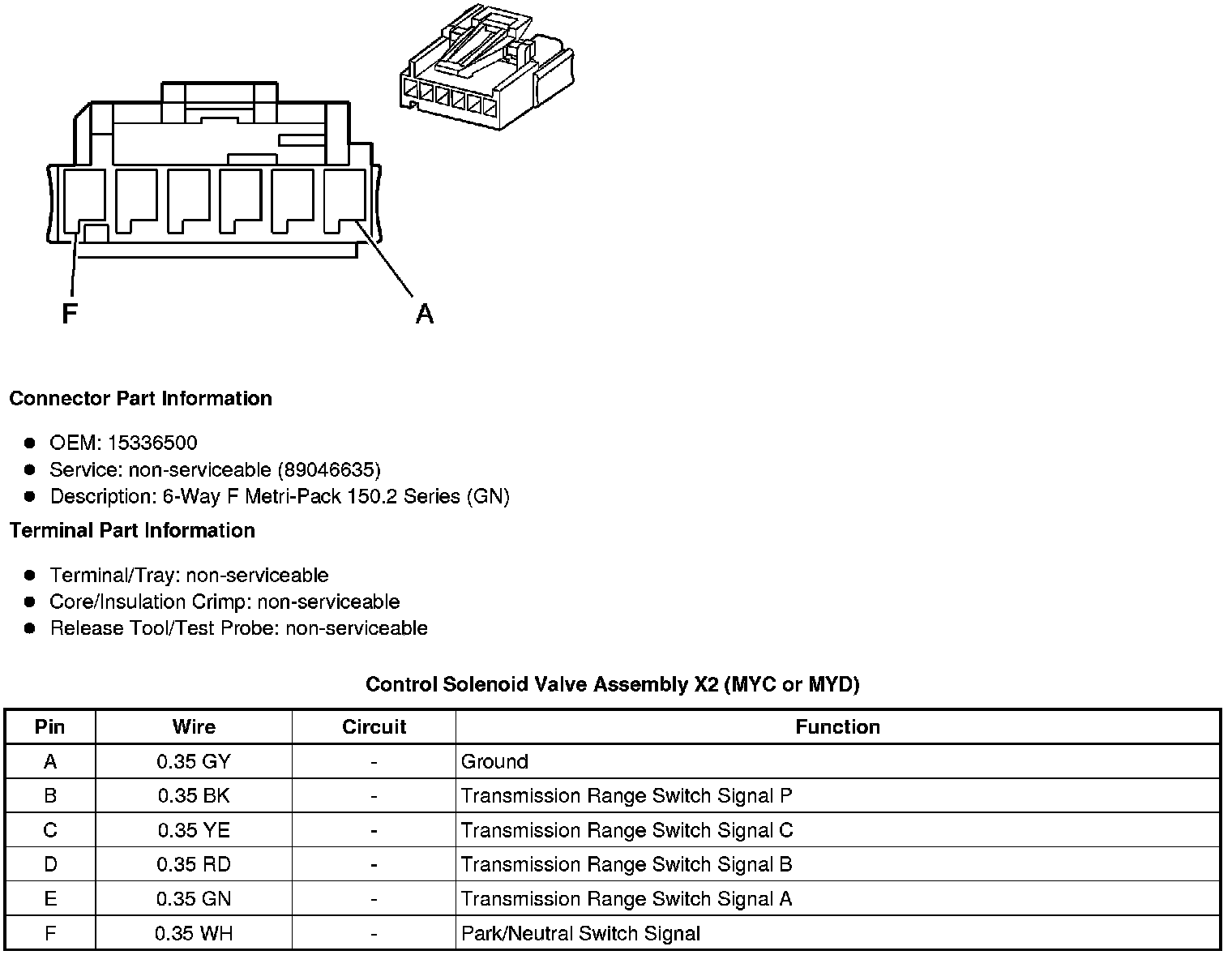

Control Solenoid Valve Assembly X2 (MYC, MYD or M99)





Shift Solenoid (SS) Valve 1 (M30)













Shift Solenoid (SS) Valve 2 (M30)
