Seat Occupant Sensor




Component Connector End Views

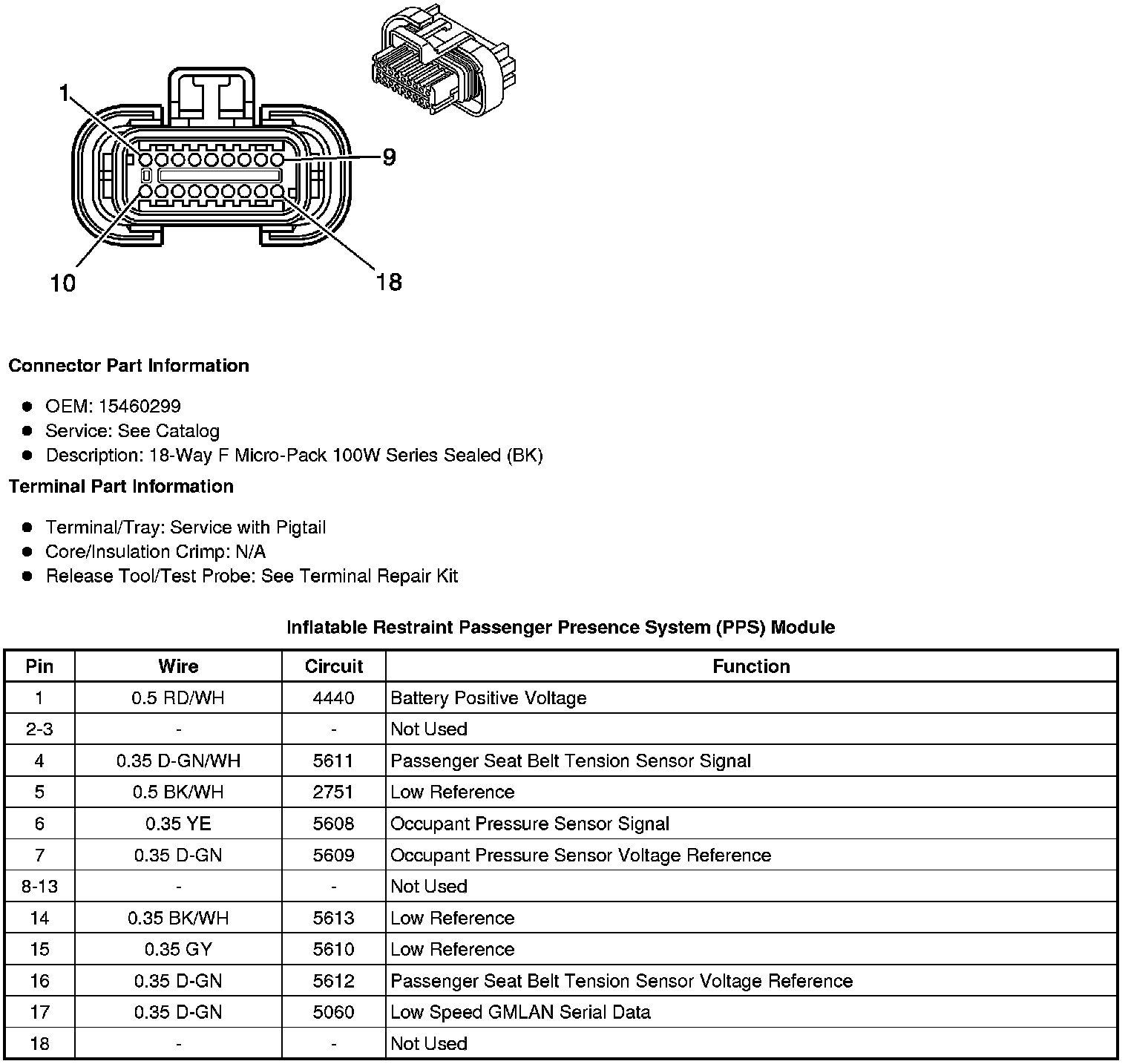

Inflatable Restraint Passenger Presence System (PPS) Module

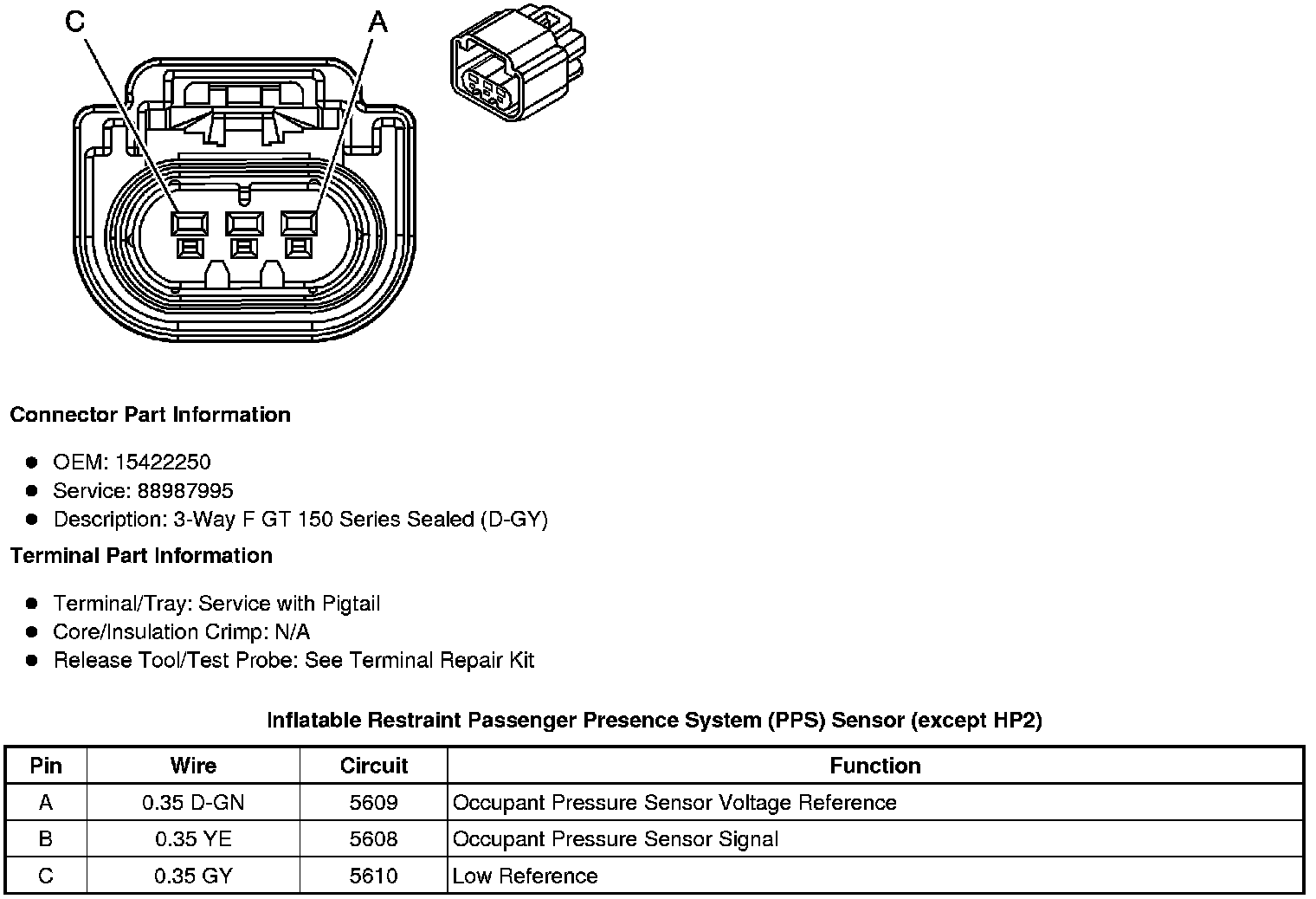

Inflatable Restraint Passenger Presence System (PPS) Sensor (except HP2)
