Ride Height Sensor, Suspension Control




Component Connector End Views

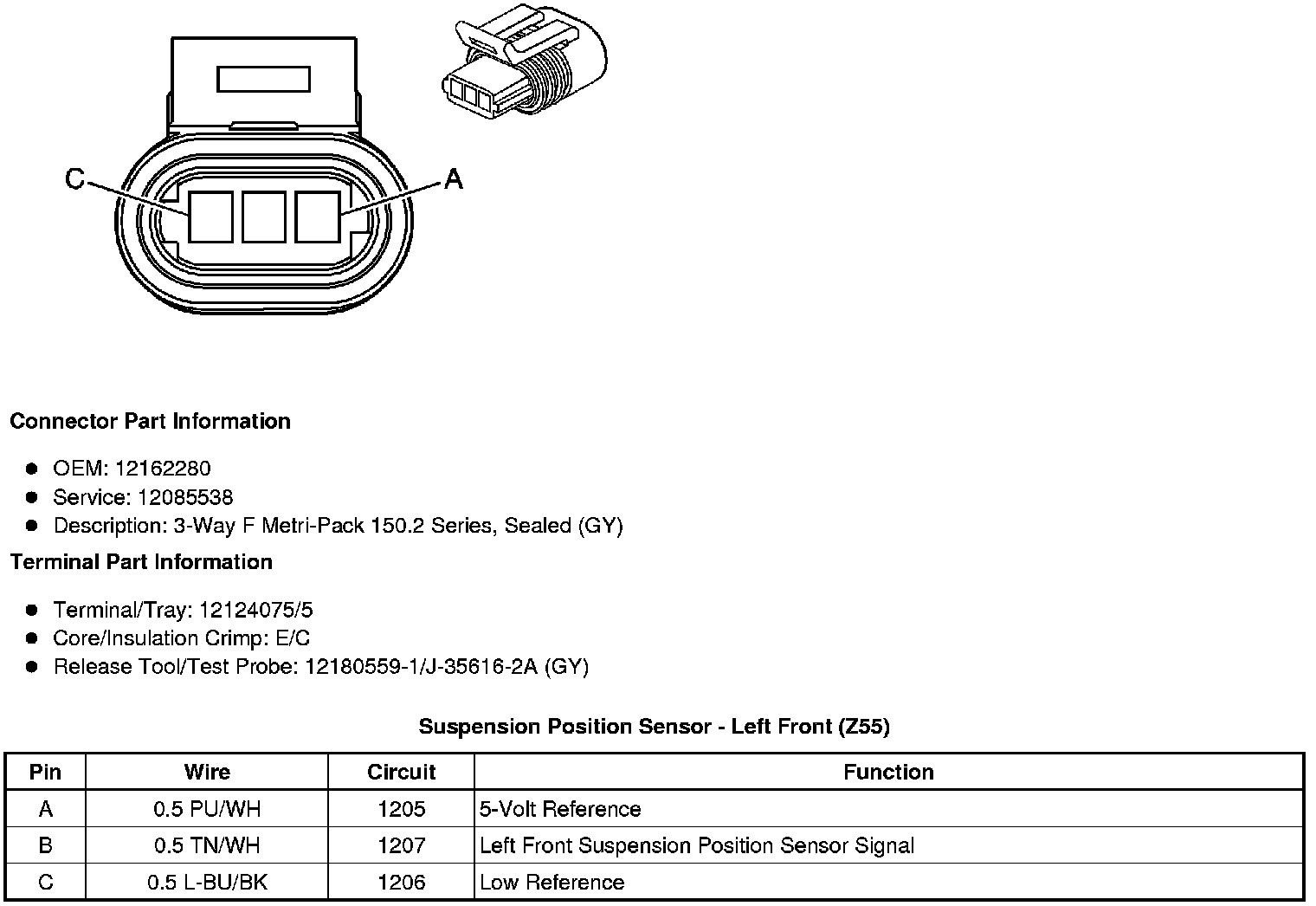

Suspension Position Sensor - Left Front (Z55)

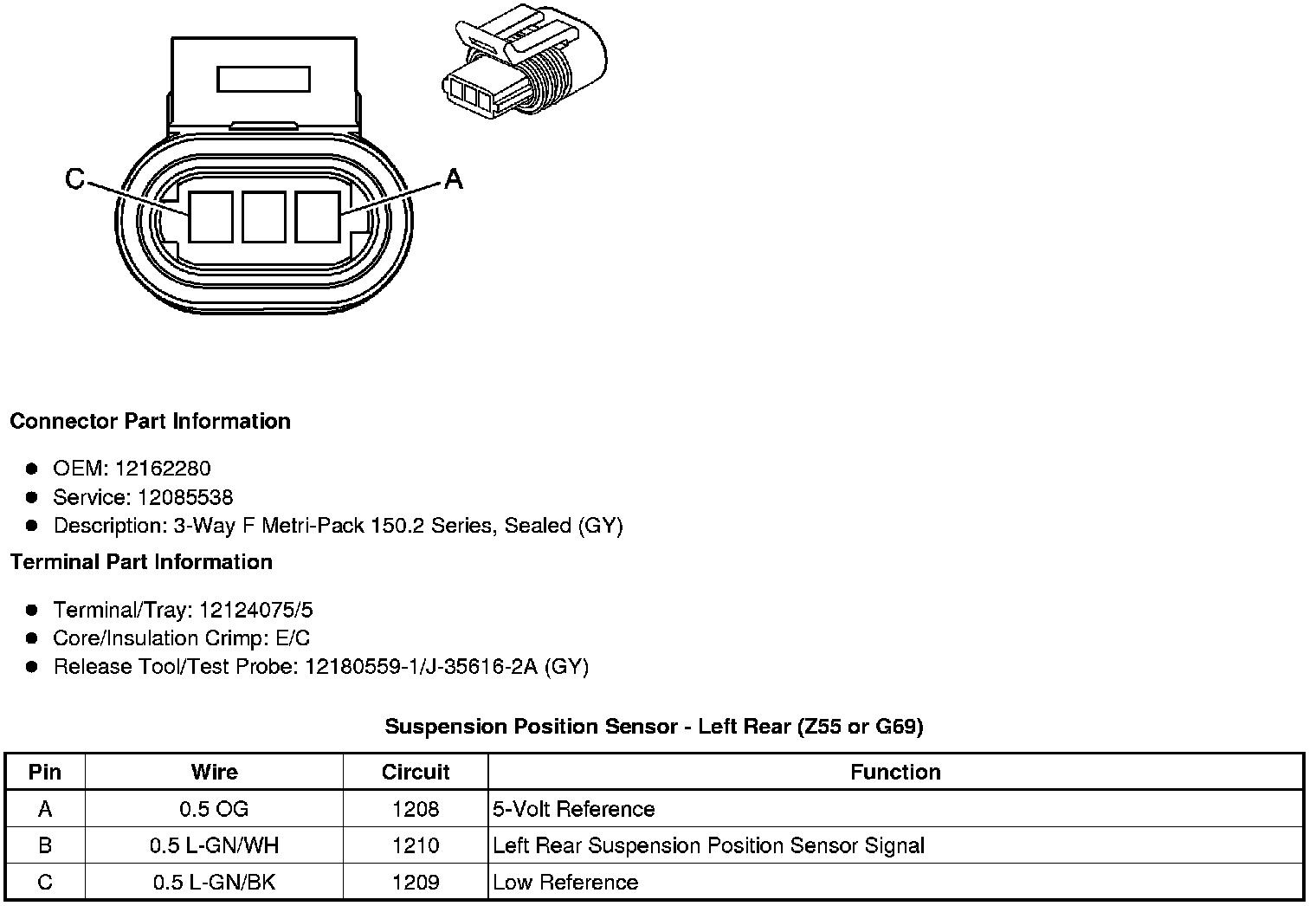

Suspension Position Sensor - Left Rear (Z55 or G69)





Suspension Position Sensor - Right Front (Z55)

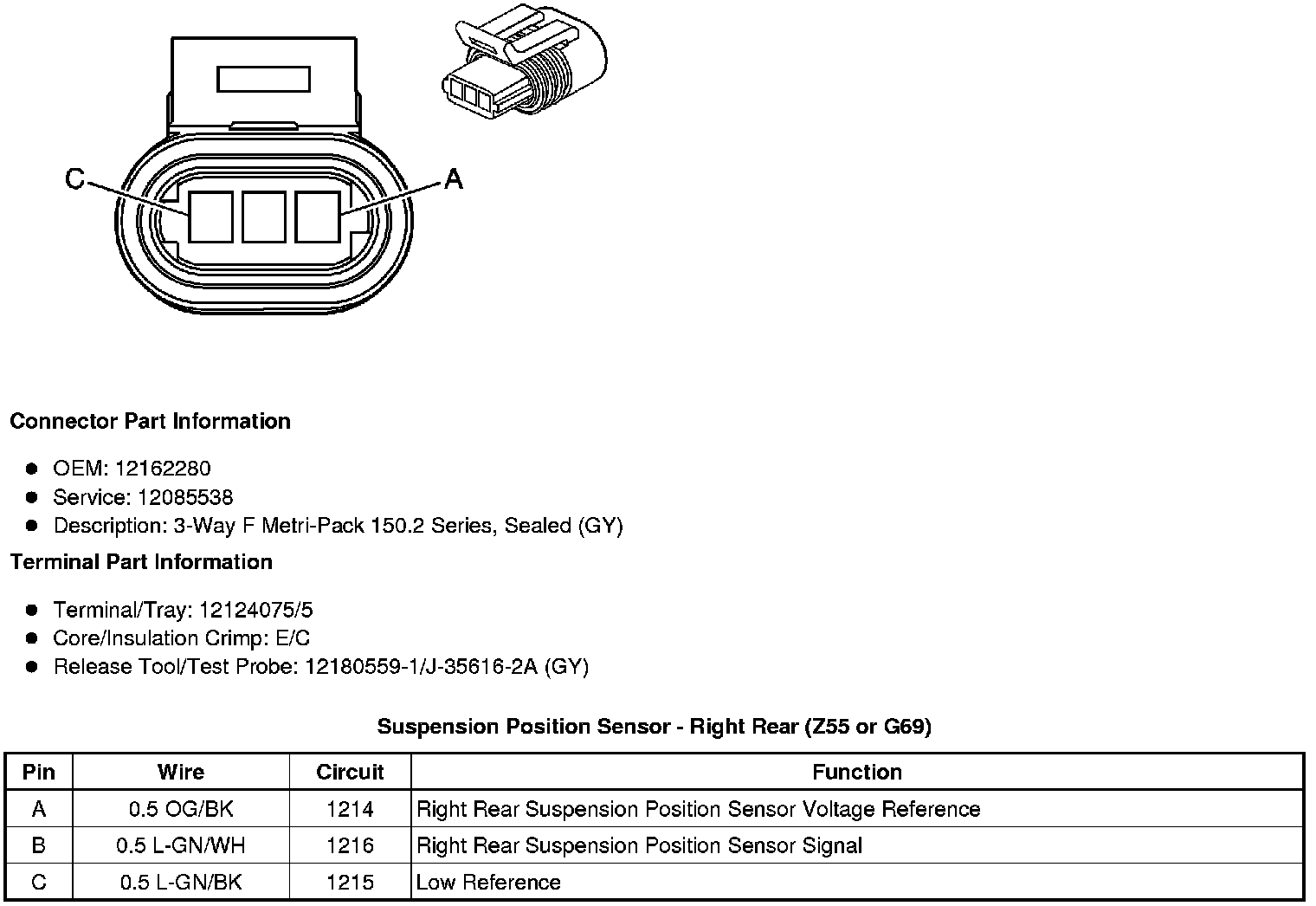

Suspension Position Sensor - Right Rear (Z55 or G69)
