Rear Vision Camera

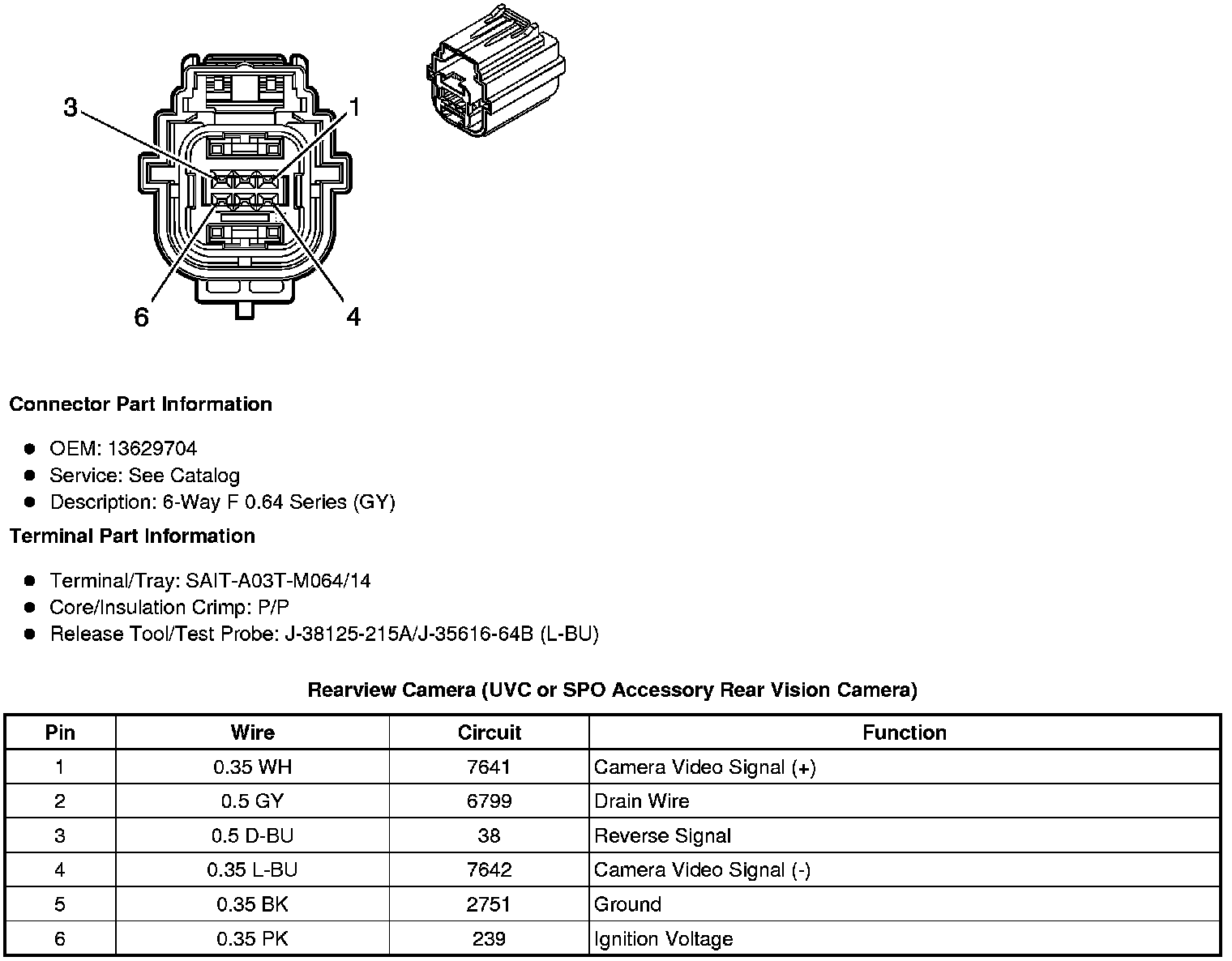

Component Connector End Views

Rearview Camera (UVC or SPO Accessory Rear Vision Camera)
