Remote Switch, Audio - Stereo




Component Connector End Views

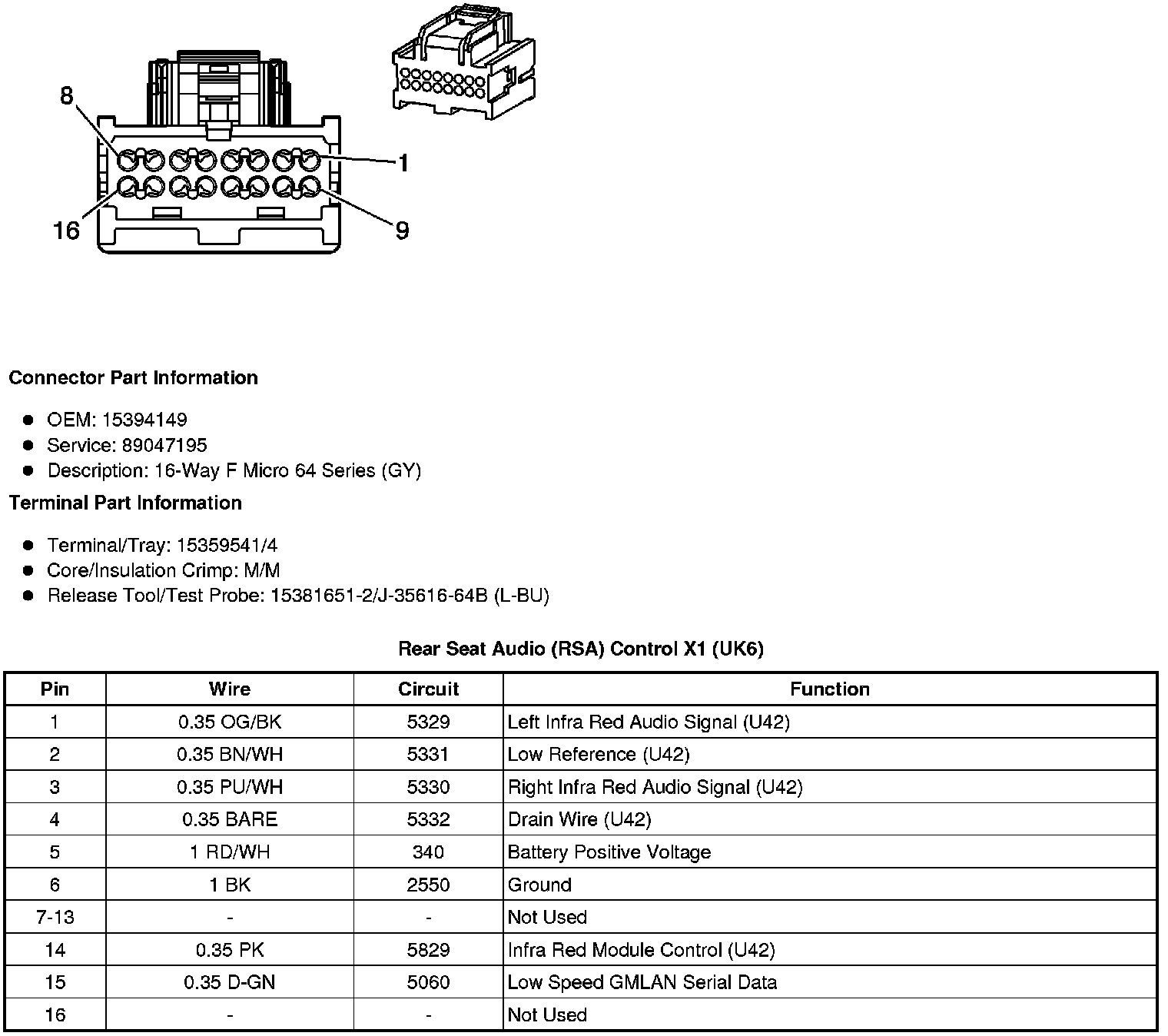

Rear Seat Audio (RSA) Control X1 (UK6)

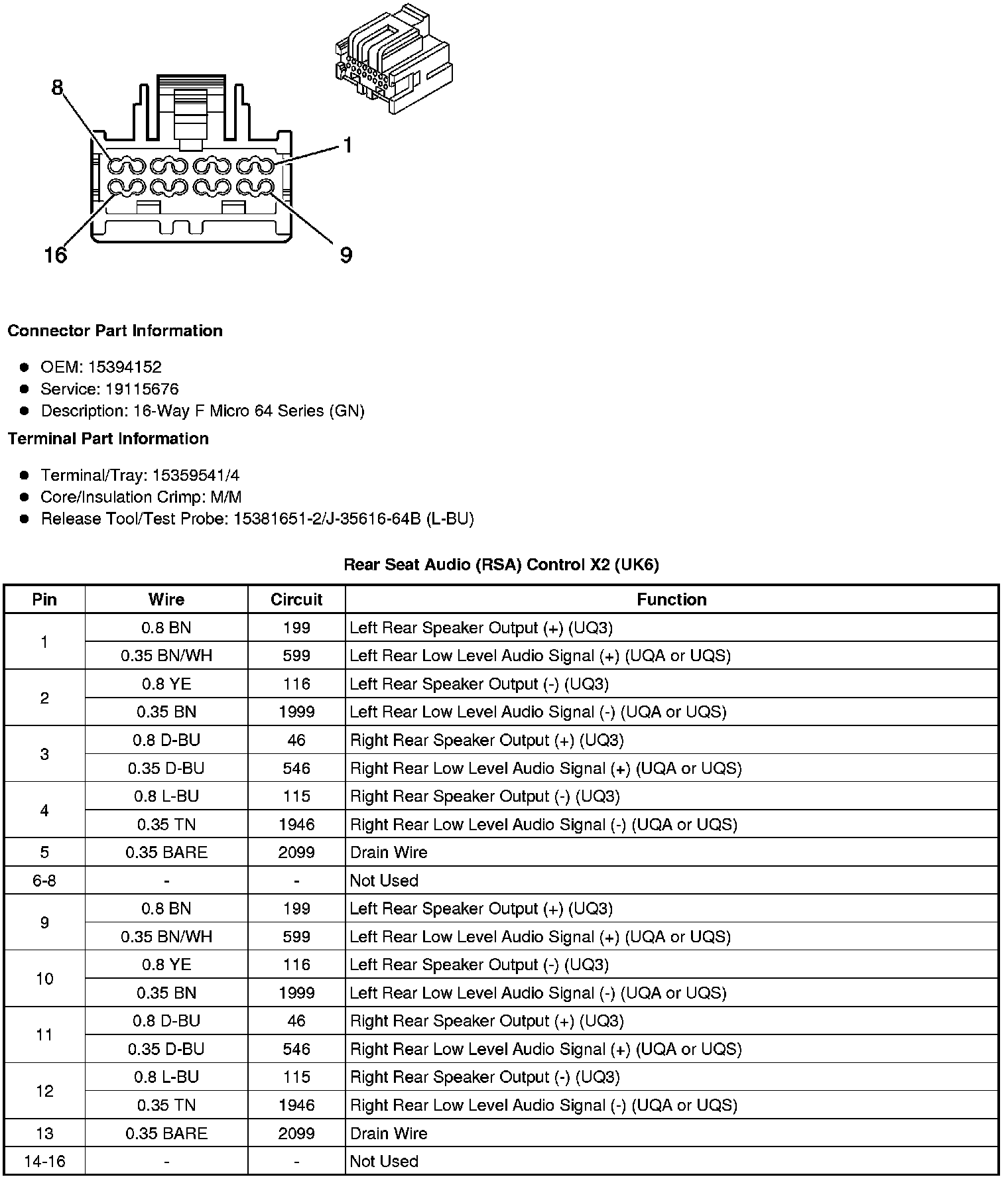

Rear Seat Audio (RSA) Control X2 (UK6)
