Radiator Cooling Fan Motor
Radiator Cooling Fan Motor
Component Connector End Views

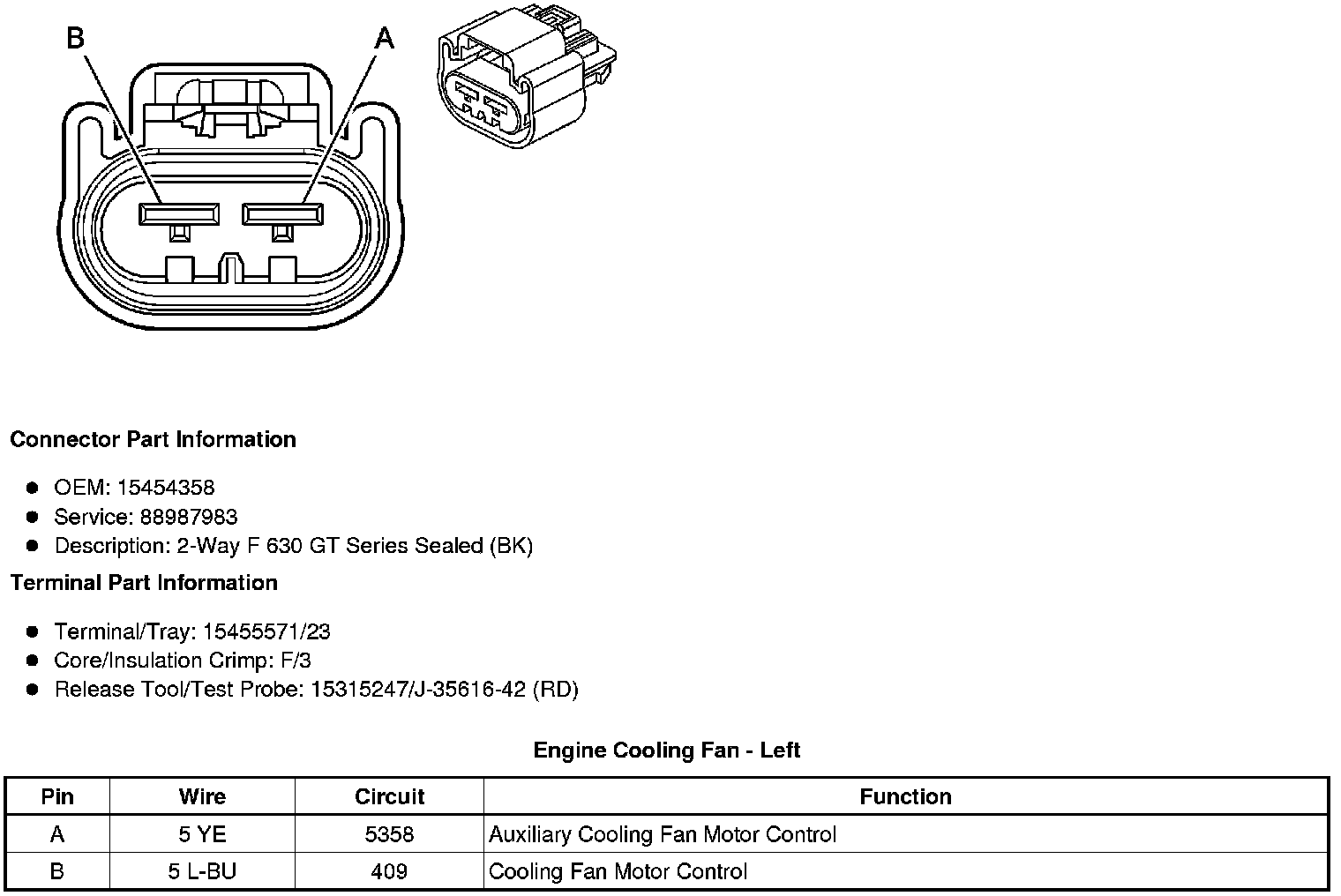

Engine Cooling Fan - Left

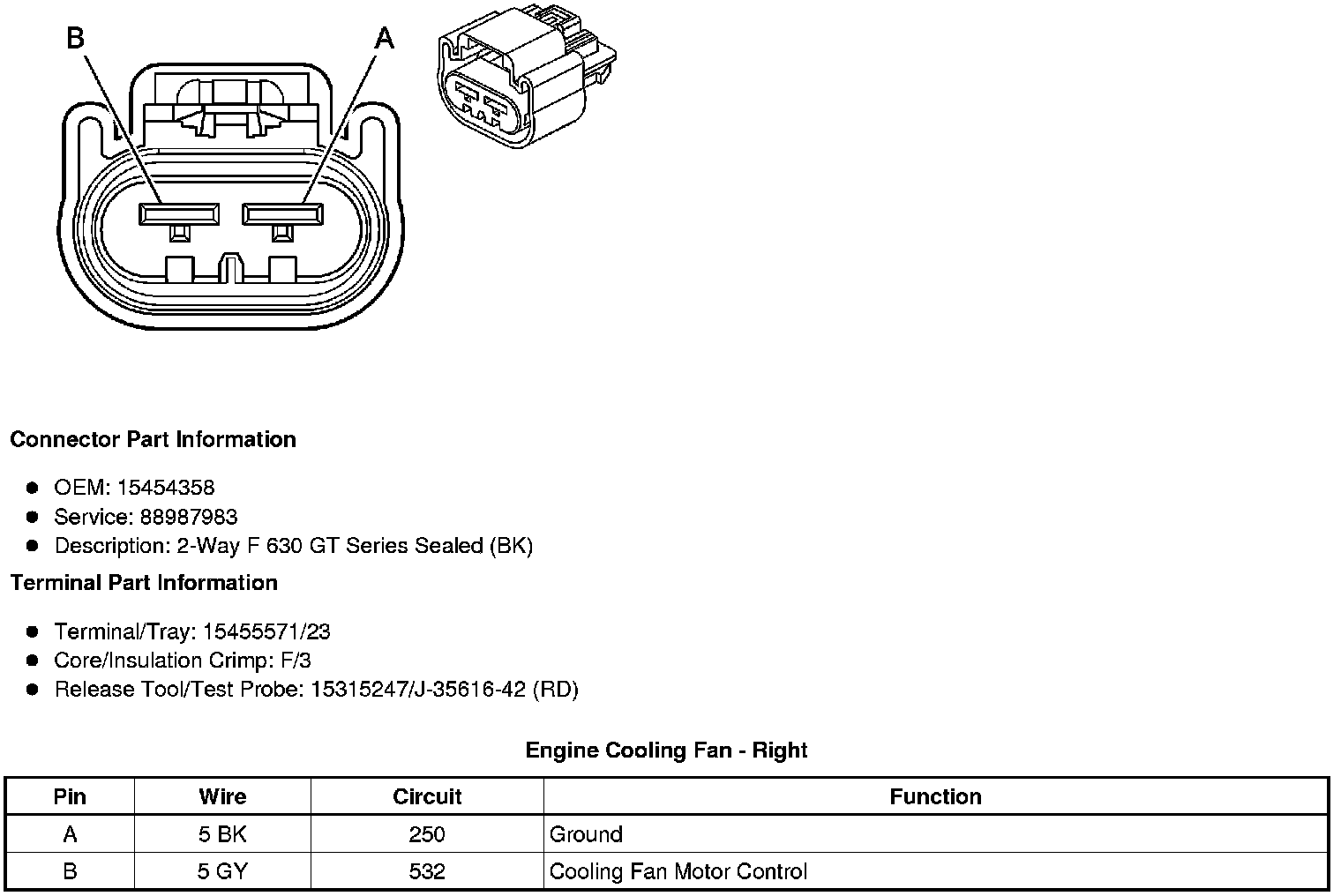

Engine Cooling Fan - Right
