Pedal Positioning System
Pedal Positioning System
Component Connector End Views

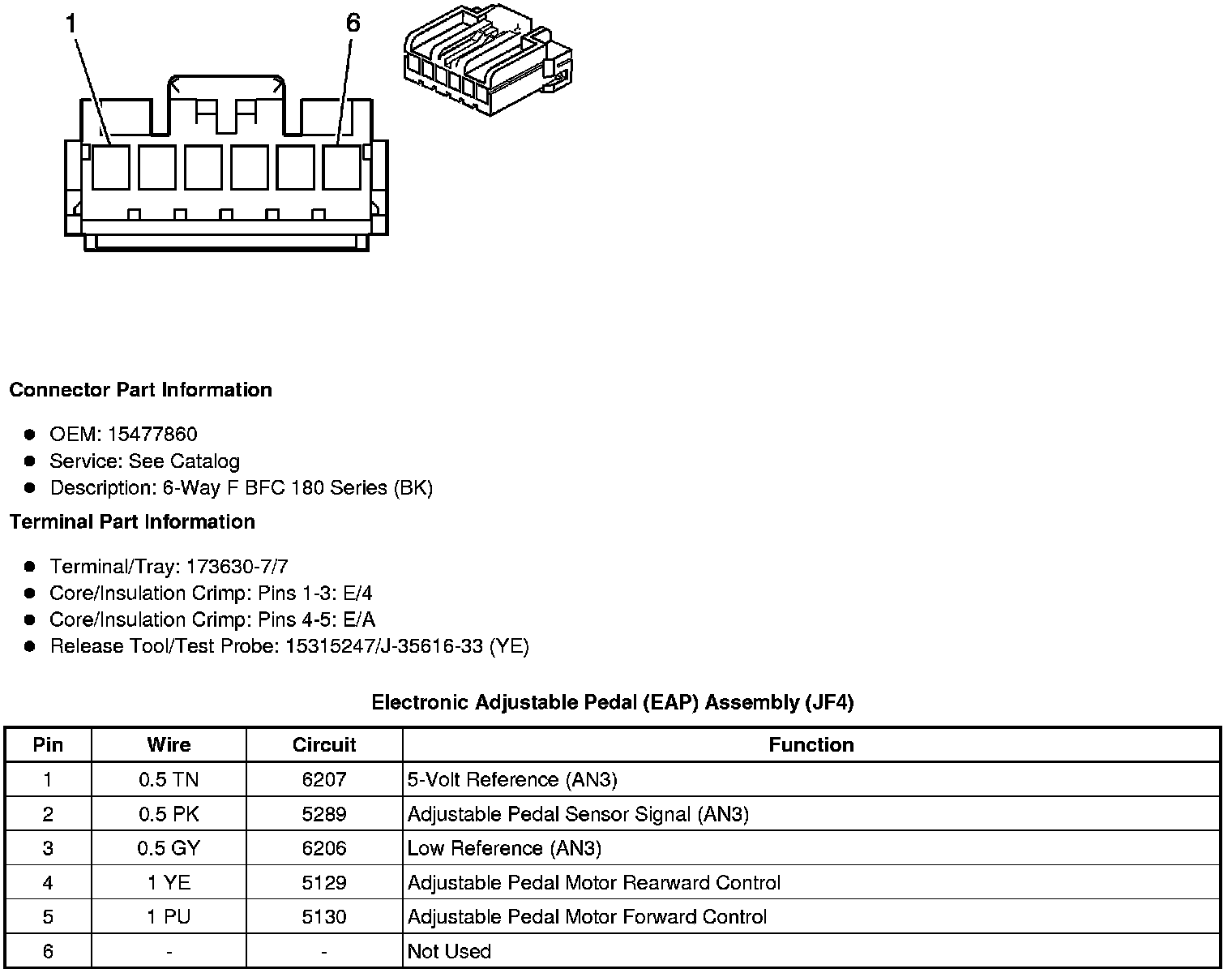

Electronic Adjustable Pedal (EAP) Assembly (JF4)
